PCB Membrane Switches

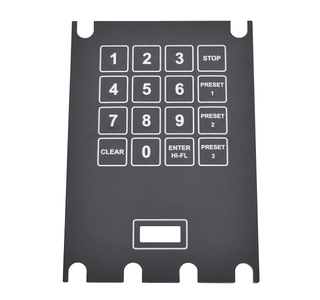

  • Fuel Dispenser PCB Membrane Keypad
    Brand: LuphiTouch
    Model: DSC1225
    Application: fuel dispenser/oiling machine;
    Overlay: Autotex F150;
    Buttons: round embossing with tactile metal domes;
    Circuit: double sided PCB;
    Connector: 12-PIN right header;
    Rohs and Reach compliance;

    " class=""> Brief:
    customized for fuel dispensing machine / high reliability / high stability
     Application: fuel dispenser/oiling machine;Overlay: Autotex F150;Buttons: round embossing with tactile metal domes;Circuit: double sided PCB;Connector: 12-PIN right header;Rohs and Reach compliance;
  • LuphiTouch PCB Membrane Switch Demo
    Brand: LuphiTouch
    Model: LuphiTouch PCB Membrane Switch Demos
    Outshape Dimension: as per customer's needs;
    Overlay Material: Autotex/Autotex XE/Autoflex/Autotex AM series Polyester, Tekra polyester and SABIC Lexan Polycarbonate;
    Spacer Adhesive: 3M, Luxking;
    Back Adhesive: 3M;
    Circuit Layer: 1 layer PCB, 2 layers PCB or multi-layers PCB;
    Components Assembly: like LEDs, metal domes, resistors, capacitors, ICs, ambient sensors, connectors etc.
    Rohs and Reach compliance;

    " class=""> Brief:
    LuphiTouch can customize different PCB membrane switches keypads with high quality and competitive prices!
     Outshape Dimension: as per customer's needs;Overlay Material: Autotex/Autotex XE/Autoflex/Autotex AM series Polyester, Tekra polyester and SABIC Lexan Polycarbonate;Spacer Adhesive: 3M, Luxking;Back Adhesive: 3M;Circuit Layer: 1 layer PCB, 2 layers PCB or multi-layers PCB;Components Assembly: like LEDs, metal domes, resistors, capacitors, ICs, ambient sensors, connectors etc.Rohs and Reach compliance;
  • GE Energy PCB Membrane Switch
    Brand: GE
    Model: LTMS0271
    Dimension: 8.539" x 7.145";
    Cable Length: 2" FPC;
    Overlay Material: Autoflex EBA180;
    Spacer Adhesives: 3M7961MP;
    Back Adhesive: 3M467MP;
    Circuit Layer: double sided PCB;
    Connector: 0.5mm pitch PCB SMT ZIF connector on back side of PCB;

    " class=""> Brief:
    ISO9001 certified factory customize different kinds of PCB circuit membrane switches membrane keypads
     Dimension: 8.539" x 7.145";Cable Length: 2" FPC;Overlay Material: Autoflex EBA180;Spacer Adhesives: 3M7961MP;Back Adhesive: 3M467MP;Circuit Layer: double sided PCB;Connector: 0.5mm pitch PCB SMT ZIF connector on back side of PCB;
  • CATALYS Laser Machine PCB Membrane Switch
    Brand: LuphiTouch
    Model: LTTMS0874
    Overlay Material: Autotex F150;
    Back Adhesive: 3M467MP;
    Cirrcuit Layer: 2.4mm Double Sided PCB;
    Backlighting Technology: LGF;
    Rohs and Reach compliance;
    Application: Laser machine system;

    " class=""> Brief:
    CATALYS Laser Machine System used PCB Membrane Switch PCB Membrane Keypad
     Overlay Material: Autotex F150;Back Adhesive: 3M467MP;Cirrcuit Layer: 2.4mm Double Sided PCB;Backlighting Technology: LGF;Rohs and Reach compliance;Application: Laser machine system;
  • Orca Controller PCB Membrane Switch
    Brand: LuphiTouch
    Model: DSC1341
    Overlay Material: Autotex-XE F150;
    Circuit Layer: Double sided PCB;
    Connector: 0.5mm pitch ZIF connector;
    Tactile buttons with metal domes;
    Rohs and Reach compliance;

    " class=""> Brief:
    Orca handheld directional controller PCB membrane switch with vertical 0.5mm pitch ZIF connector soldered!
     Overlay Material: Autotex-XE F150;Circuit Layer: Double sided PCB;Connector: 0.5mm pitch ZIF connector;Tactile buttons with metal domes;Rohs and Reach compliance;

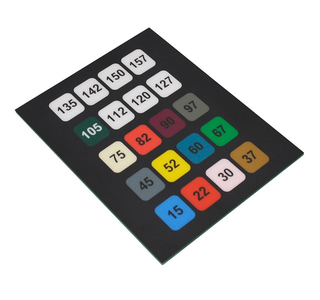

  • PCB Membrane Switch Membrane Keypad
    Brand: LuphiTouch
    Model: TG52307
    Dimension: 108.20 x 140.20mm;
    Overlay Material: Lexan 0.375m PC;
    Circuit Layer: 2 layers rigid PCB/1.5mm;
    Connector: 16-PIN by 2 rows socket header;
    BOLTs/NUTs: 4sets;

    " class=""> Brief:
    LuphiTouch customizes rigid PCB circuit membrane switches, membrane keypads with high quality and competitive prices.
     Dimension: 108.20 x 140.20mm;Overlay Material: Lexan 0.375m PC;Circuit Layer: 2 layers rigid PCB/1.5mm;Connector: 16-PIN by 2 rows socket header;BOLTs/NUTs: 4sets;
  • 80% customers of LuphiTouch are from USA, Australia, UK, Germany, Austria, France, Italy, Belgium, Sweden, Newzealand etc. countries and areas. We've established good cooperation relations with them already.
