Membrane switches have become the preferred user interface solution across countless industries due to their durability, cost-effectiveness, and design flexibility. Among the various types available, backlit membrane switches stand out as an advanced variant that combines all the benefits of standard membrane technology with integrated illumination for enhanced visibility and user experience.
Backlit membrane switches are particularly valuable in low-light environments, medical equipment, industrial control panels, and consumer electronics where users need to quickly identify and operate keys under varying lighting conditions. This guide explores everything you need to know about these illuminated interface solutions – from how they work to how to select the right supplier for your project.
Backlit membrane switches are a type of membrane switches that incorporate light-emitting diodes (LEDs) or other light sources within the switch structure to illuminate the keys, symbols, or graphics. Unlike standard membrane switches that rely solely on ambient light for visibility, backlit versions emit their own light, making them readable even in dark or dimly lit environments.
The construction typically consists of multiple layers:
Graphic overlay: The top layer with printed symbols and text
Circuit layer: Contains conductive traces and LED components
Spacer layer: Separates the circuit layers to prevent accidental activation
Adhesive backing: For mounting onto the device or panel
The illumination in backlit membrane switches is achieved through several methods, each with its own advantages and suitable applications.
Method | Description | Best For | Brightness | Cost Level |
|---|---|---|---|---|
Side-LED (Light Guide) | LEDs placed at edges, light guided through film | Uniform backlighting, large areas | Medium | Medium |
Direct LED | LEDs placed directly behind each key | Individual key illumination | High | Medium-High |
EL Backlight | Electroluminescent film layer | Thin, uniform glow | Low-Medium | Low |
Fiber Optic | Fiber strands distributed behind overlay | Precise, even lighting | High | High |
The most common method for industrial and medical applications is the side-LED with light guide film, which provides uniform illumination across the entire panel while maintaining a slim profile.
The primary benefit of backlit membrane switches is their ability to remain clearly visible in dark or low-light conditions. This is critical for medical equipment in operating rooms, industrial machinery in dimly lit factories, and consumer electronics used at night.
Illuminated keys reduce user errors and speed up operation, especially in high-stakes environments where accuracy matters. The soft glow also adds a premium, modern aesthetic to any product.
Membrane switches with backlighting support various customization options:
Multiple LED colors (white, red, green, blue, amber, RGB)
Selective illumination – only certain keys light up
Dimmable brightness levels
Custom symbols and graphics that glow through
Like all membrane switches, backlit versions are sealed against dust, moisture, and contaminants. The LED components have long lifespans (typically 50,000+ hours), ensuring reliable performance over the product's lifetime.
Backlit membrane switches find applications across a wide range of industries due to their versatility and reliability.
Industry | Typical Applications | Key Requirements |
|---|---|---|
Medical | Patient monitors, diagnostic equipment, infusion pumps | High hygiene, easy cleaning, accurate reading |
Industrial | Control panels, CNC machines, test equipment | Durability, dust/water resistance, long lifespan |
Consumer | Home appliances, audio equipment, smart home devices | Aesthetic appeal, touch comfort, cost efficiency |
Automotive | Dashboard controls, interior panels | Vibration resistance, temperature tolerance |
Aerospace | Cockpit controls, cabin systems | Extreme reliability, lightweight, precise illumination |
Medical and industrial sectors are the largest consumers of backlit membrane switches due to strict requirements for visibility, hygiene, and reliability.
When sourcing backlit membrane switches, manufacturers offer a wide range of customization options to meet specific project requirements:
Single color: White, red, green, blue, amber, or custom Pantone colors
Dual-color: Two colors in one key for status indication
RGB: Full-color capability for dynamic effects
Polycarbonate (PC): Excellent clarity, good for backlighting
Polyester (PET): More durable, chemical resistant
Acrylic: Premium look, deeper light diffusion
Metal dome: Crisp, audible click feedback
Polyester dome: Soft, quiet tactile response
Non-tactile: Smooth, silent operation
IP65: Dust tight, water jet resistant
IP67: Dust tight, temporary immersion resistant
IP68: Highest level, continuous immersion
Selecting the right manufacturer is crucial for ensuring quality, on-time delivery, and long-term reliability of your backlit membrane switches.
Technical Capability: Does the manufacturer have experience with backlit designs and LED integration? Look for engineering support and in-house prototyping capabilities.
Quality Certifications: ISO 9001, RoHS, CE, and medical-grade certifications (if applicable) demonstrate adherence to international standards.
Customization Flexibility: A good manufacturer should accommodate custom sizes, shapes, colors, and functional requirements without excessive tooling costs.
Lead Time and MOQ: Consider minimum order quantities and production lead times, especially for prototype and low-volume projects.
After-Sales Support: Technical support, warranty terms, and responsive communication are essential for long-term cooperation.
The cost of backlit membrane switches varies based on several factors:
Complexity of design: More keys, custom shapes, and special features increase cost
LED type and quantity: More LEDs or specialized lighting methods add to the price
Material selection: Premium materials like medical-grade polycarbonate cost more
Order quantity: Larger orders reduce per-unit cost significantly
Tooling charges: Custom designs require initial tooling investment
Typically, backlit membrane switches cost 30-80% more than standard non-illuminated membrane switches, but the added value in usability and aesthetics often justifies the premium.
LuphiTouch is a professional membrane switches manufacturer with extensive experience in designing and producing high-quality backlit solutions for global clients. Our capabilities include:
In-house engineering team that supports custom design from concept to production
Advanced LED integration technology ensuring uniform illumination and long lifespan
Full range of customization options – from simple single-color to complex RGB backlighting

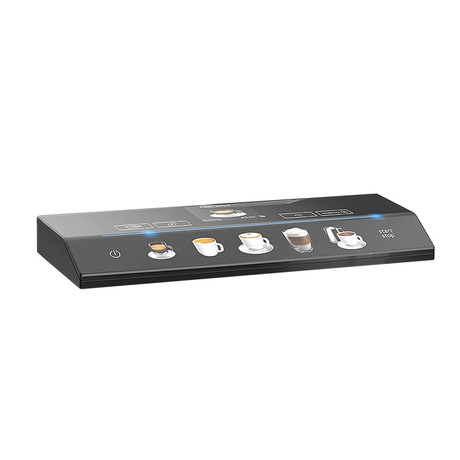

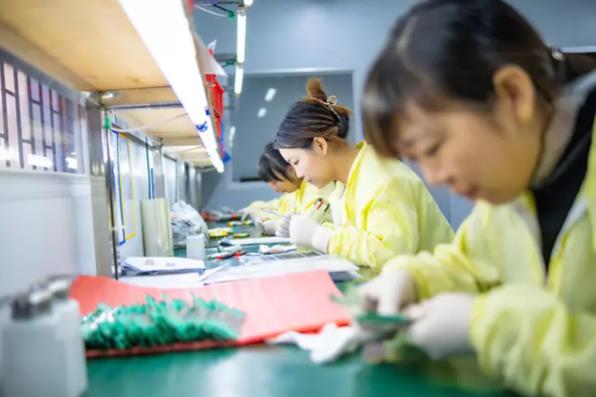

Strict quality control with 100% testing before shipment
Competitive pricing and flexible MOQ for both prototype and mass production
Fast lead times – typically 7-15 days for prototypes, 15-25 days for mass production
Whether you need backlit membrane switches for medical equipment, industrial controls, or consumer electronics, we can provide a tailored solution that meets your exact specifications.
Q1: What is the typical lifespan of LEDs in backlit membrane switches?
A: High-quality LEDs used in membrane switches typically have a lifespan of 50,000 to 100,000 hours of continuous operation, which translates to many years of normal use.
Q2: Can backlit membrane switches be used outdoors in direct sunlight?
A: Standard backlit membrane switches may be difficult to read in direct sunlight. For outdoor applications, we recommend high-brightness LEDs and anti-glare overlay treatments to improve visibility.
Q3: Are backlit membrane switches waterproof?
A: Yes, backlit membrane switches can be designed with IP65, IP67, or even IP68 waterproof ratings depending on your application requirements. The LED components are fully sealed within the membrane structure.
Q4: What is the minimum order quantity for custom backlit membrane switches?
A: MOQ varies by manufacturer and design complexity. At LuphiTouch, we offer flexible MOQ starting from 50 pieces for prototype orders, making it easy to test new designs before mass production.
Q5: How long does it take to produce custom backlit membrane switches?
A: Prototypes typically take 7-15 working days, while mass production ranges from 15-25 working days depending on order quantity and design complexity.
Q6: Can I have different colors for different keys on the same panel?
A: Absolutely. Backlit membrane switches support multi-color designs where individual keys or sections can have different LED colors for status indication or aesthetic purposes.
