When was the last time you fumbled for a button in the dark? Perhaps in a car at night, or while adjusting a medical monitor in a dimly lit room. That moment of hesitation—where your finger hovers, uncertain—is exactly what backlit membrane switches eliminate. But illumination is not just about visibility; it is about confidence, safety, and the subtle language of quality that speaks to your users before they even press a single key. At LuPhiTouch, we have seen how the right backlighting can transform a functional component into a memorable brand touchpoint.
We often think of backlighting as a practical feature—and it is. But in today’s competitive product landscape, the glow of a well‑lit keypad conveys sophistication. It whispers “premium” to the user. Think of the last high‑end audio remote or smart thermostat you encountered; the soft, even backlight probably made you trust the device more. This psychological effect is backed by research: users perceive illuminated controls as more intuitive and reliable.
For OEMs, this means backlit membrane switches are not just an add‑on; they are a strategic investment in brand perception. Whether you are designing for healthcare, automotive, or consumer goods, the way your interface lights up can be as distinctive as your logo.
Consider these everyday scenarios:
The Operating Theatre: A surgeon needs to adjust a ventilator in near‑darkness without diverting their eyes from the patient. A backlit keypad with clearly distinguished zones (e.g., emergency functions in red, routine controls in white) can be life‑saving.
The Factory Floor: Industrial control panels often sit under flickering fluorescent lights or in shadowy corners. Bright, uniform backlighting reduces mis‑presses, preventing costly production errors.
The Connected Home: Smart lighting panels and security keypads are increasingly mounted in hallways and bedrooms. A gentle, dimmable backlight guides sleepy fingers without disrupting the household’s circadian rhythm.
Each application demands a different approach to brightness, colour, and control—proof that one size never fits all.
When we collaborate with engineers and product managers, we focus on four interrelated factors that determine the success of a backlit membrane switch. They are not just technical parameters; they are user‑experience levers.
Nothing screams “cheap” faster than a backlit keypad with bright spots and dark corners. Uniformity is the hallmark of a well‑engineered light guide. Whether you use LEDs, fiber optics, or electroluminescent panels, the goal is the same: every legend, every icon should glow with equal intensity. Achieving this requires precise optical modelling, and we often run simulations before cutting a single prototype. The result is a panel that looks professional and feels premium.
Colours are not just decorative—they encode information. A yellow warning icon must stay yellow across all keys, under all viewing angles. Manufacturing variations in LED bins or phosphor coatings can ruin this consistency. That is why we source LEDs from a single batch and calibrate our light guides to preserve colour temperature. Moreover, we consider how ambient light affects perceived colour; a white backlight that looks blueish in a warm‑lit room can be jarring. We help you select the right colour temperature (warm, neutral, or cool) to harmonise with your product’s environment.
In battery‑powered devices, every milliwatt counts. Excessive backlight brightness drains batteries faster than your users would like. The solution is not always to dim the light; it is to use highly efficient LEDs or EL panels and incorporate smart dimming controls. For instance, an ambient light sensor can automatically adjust backlight brightness—full power in direct sunlight, subdued in a dark room. This intelligence extends battery life while preserving usability.
Backlit membranes are often exposed to harsh conditions: UV radiation, temperature swings, humidity, and cleaning chemicals. Over time, unprotected LEDs fade, light guides yellow, and adhesives fail. We select materials that resist these stresses, such as UV‑stabilised polyester overlays and automotive‑grade LEDs rated for 50,000+ hours. We also test for salt fog, damp heat, and thermal shock—so your backlight performs as reliably on day 1000 as on day one.
There is no single “best” technology—only the best fit for your priorities. Here is a simple way to decide:
If brightness and colour versatility are paramount (e.g., consumer gaming peripherals, automotive dashboards), LEDs are the clear winner. They offer high output, RGB options, and instant response.
If you need ultra‑thin, ultra‑uniform illumination with minimal EMI (e.g., medical imaging devices, avionics), fiber optic light guides excel. They add less than 0.3 mm to the stack and produce a glow that is eerily even.
If your device is battery‑sensitive and requires a soft, diffused light (e.g., remote controls, portable medical monitors), electroluminescent (EL) panels provide a gentle glow at very low current draw—though they trade off brightness for efficiency.
We often combine technologies, using LEDs for primary functions and EL for standby indicators, creating a hybrid that balances performance and economy.
Even experienced designers can stumble when specifying backlit membranes. Here are traps we frequently rescue clients from:
Overlooking optical interference: If the overlay has embossing or thick textures, light scattering can create dark shadows. We recommend keeping embossing to a moderate height (≤0.8 mm) and using diffuser films to smooth out hotspots.
Underestimating heat dissipation: High‑brightness LEDs generate heat. In confined enclosures, this can degrade both the LEDs and the membrane adhesive. We always include thermal management advice—such as using metal‑core PCBs or spacing LEDs adequately.
Ignoring viewing angle requirements: A panel meant for handheld use has different angular needs than one mounted at eye level. We simulate viewing angles to ensure legends remain readable from typical user positions.
Forgetting about EMI: Backlight inverters (especially EL) can radiate noise. For sensitive electronic equipment, we incorporate shielding layers or choose fiber optic solutions that produce zero electromagnetic interference.
Creating a backlit membrane switch is not a simple order‑and‑deliver transaction; it is a partnership. Our process at LuPhiTouch begins with a conversation about your user’s environment, not just your electrical specs.
Discovery Session: We interview your product team to understand the “why” behind the backlight. Is it for safety? For aesthetics? For branding? This shapes every subsequent decision.
Optical Simulation: Using specialised software, we model light distribution and predict brightness uniformity before any physical part is made. This saves time and reduces prototyping iterations.
Material Selection: We present options for overlays, adhesives, and light guides, explaining the trade‑offs in cost, durability, and optical performance.
Prototyping: Within 7‑10 working days, we deliver functional samples—complete with your chosen backlight technology—for you to test in your actual device.
Validation and Tuning: Based on your feedback, we adjust brightness, colour, or even dome force. We repeat until the feel and glow are exactly as you envisioned.

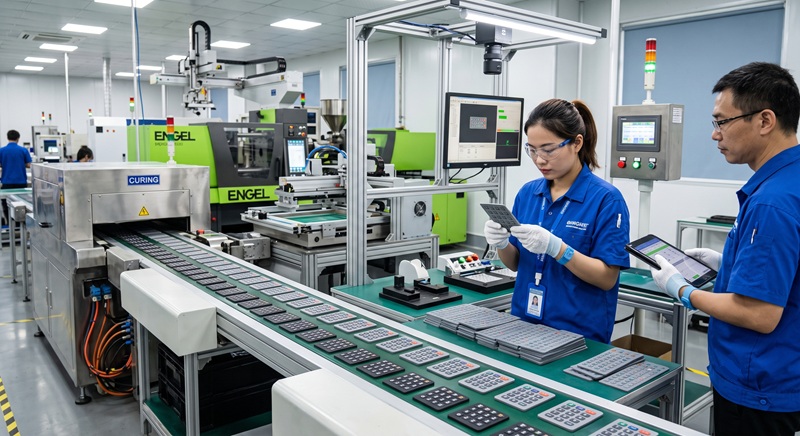

Production and Testing: Once approved, we move to high‑volume manufacturing, with 100% electrical and optical inspection on every unit, plus environmental batch tests.
This iterative, human‑centric approach ensures that the final product is not only technically sound but also a joy to use.
Recently, a medical device manufacturer approached us with a frustrating problem: their existing membrane keypad was difficult to read under the surgical lights, causing nurses to repeatedly check labels. They had tried brighter LEDs, but the hotspots created glare on the sterile drapes. We proposed a fibre‑optic light guide with a custom diffuser pattern that spread light evenly across the entire panel. The result was a clean, soft glow that was legible at a glance but did not reflect off nearby surfaces. The nurse feedback was overwhelmingly positive—and the hospital chain adopted the design for all their new units.
That is the power of thoughtful backlight engineering: it solves a real‑world nuisance and elevates the entire user experience.
The future of backlit interfaces is dynamic and adaptive. We are seeing demand for colour‑changing backlights that shift from white to amber at night (mimicking human‑centric lighting), touch‑sensitive dimming, and even patterned illumination that guides users through a sequence of operations. These innovations are driving closer integration between membrane switches and smart sensors.
As a manufacturer, LuPhiTouch is investing in advanced light‑guide printing and micro‑LED integration to offer these capabilities cost‑effectively. We believe the next generation of backlit membranes will be as intelligent as the devices they control.
When you specify backlighting for your membrane switch, you are doing far more than adding a bulb. You are enhancing safety, reinforcing brand identity, and showing your users that you care about their experience. Every component choice—from LED binning to diffuser film—contributes to that perception.
At LuPhiTouch, we treat each backlit project as a unique creative challenge. Our engineers are not just technicians; they are storytellers who use light to make your product communicate more effectively.Contact us to discuss your backlit membrane switch idea. We would love to help you illuminate your next design.
