In modern product design, user interface visibility is no longer a luxury – it is a necessity. Whether in a dimly lit operating room, a dark car cabin, or a factory floor with low ambient light, backlit membrane switches ensure that users can see and operate controls accurately and safely. As a professional, LuPhiTouch combines decades of membrane switch expertise with advanced illumination technologies to deliver custom backlit keypads that enhance usability, aesthetics, and brand value.
A backlit membrane switch is a user interface that incorporates illumination elements behind or within the switch layers, allowing legends, icons, or the entire keypad surface to glow when activated. The benefits are compelling:
Improved usability in low‑light conditions – essential for medical, automotive, aviation, and marine environments.
Enhanced aesthetic appeal – illuminated controls convey a premium, high‑tech feel that differentiates your product.
Increased safety – clearly visible keys reduce operator errors in critical applications.
Brand differentiation – custom backlight colours and animations can reinforce brand identity.
As a, LuPhiTouch has helped countless OEMs integrate illumination into their membrane keypads, solving design challenges while maintaining cost‑effectiveness and reliability.
LuPhiTouch supports three primary backlighting methods, each with distinct advantages. Our engineering team will recommend the optimal solution based on your brightness requirements, power budget, space constraints, and budget.
LED backlighting is the most popular and versatile option. We place surface‑mount LEDs (SMD) on the PCB behind the membrane switch, or embed them in the membrane layers via light‑guide films.
Advantages:
High brightness and wide colour range (including RGB)
Long lifespan (50,000+ hours)
Low power consumption
Instant on/off with no warm‑up time
Can be dimmed or pulsed for visual effects
Best for: Consumer electronics, automotive dashboards, medical monitors, and industrial panels where brightness and colour flexibility are key.
Fiber optic backlighting uses a light source (usually an LED) coupled to a thin, flexible light‑guide film that distributes light evenly across the keypad. The light guide contains microscopic printed patterns that extract light where needed.
Advantages:
Extremely uniform illumination – no hot spots
Very thin (0.25 mm typical) – ideal for ultra‑slim devices
Low electromagnetic interference (EMI)
Low power consumption
Can be cut to any shape
Best for: Medical devices, military equipment, and aerospace applications where uniformity, low profile, and EMI immunity are critical.
EL backlighting uses a phosphor‑coated film that emits light when excited by an AC voltage. It provides a soft, uniform glow across the entire keypad surface.
Advantages:
Very thin and flexible
Even, diffuse light – no bright spots
Low current draw
Available in multiple colours (green, blue‑green, white, orange)
Disadvantages:
Requires an inverter (AC driver)
Limited brightness compared to LED
Lifespan shorter than LED (approx. 3,000‑5,000 hours)
Best for: Battery‑powered devices, remote controls, and applications where a soft, ambient glow is sufficient.
Feature | LED | Fiber Optic | EL |
|---|---|---|---|
Brightness | High | Medium‑High | Low‑Medium |
Uniformity | Good (with light guide) | Excellent | Excellent |
Thickness | 0.5‑2.0 mm | 0.25‑0.5 mm | 0.2‑0.4 mm |
Power Consumption | Low | Very Low | Low (AC) |
Lifespan | 50,000+ hrs | 50,000+ hrs | 3,000‑5,000 hrs |
Colour Options | Full RGB | Single or RGB | Limited colours |
EMI | Low | Very Low | Medium |
Cost | Medium | Medium‑High | Low‑Medium |
LuPhiTouch engineers will help you select the right technology based on your specific application and performance targets.
As a custom, LuPhiTouch offers extensive design flexibility:
Whole‑panel backlighting – the entire keypad glows uniformly.
Selective backlighting – only specific keys or zones are lit (e.g., only the numeric pad or only the emergency stop key).
Icon/legend backlighting – only the printed symbols on each key are illuminated, with the background remaining dark – achieving a sleek, high‑end look.
Single colour (e.g., white, blue, red, green) – matched to your brand or ergonomic needs.
Multi‑colour zones – different areas in different colours for functional grouping.
Dynamic effects – pulsing, chasing, or fade‑in/fade‑out animations for visual feedback or attention‑grabbing.
Backlighting can be combined with tactile domes (metal or polyester snap domes) to provide both visual and tactile confirmation of key presses. LuPhiTouch can integrate domes directly into the membrane stack, offering a complete interface solution.
We use high‑quality polyester (PET) or polycarbonate (PC) overlays, available in:
Glossy – for vibrant colours and high‑end appearance.
Matte – to reduce glare and fingerprints.
Textured – for a premium, non‑slip feel.
Hard‑coated – for scratch and chemical resistance.
We also offer embossing (raised keys) for improved tactile location and backlit embossing – where the raised key itself glows, creating a striking 3D illuminated effect.

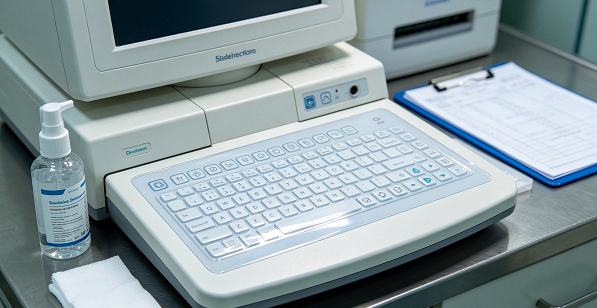

Patient monitors, infusion pumps, and diagnostic equipment – where clear visibility in dim conditions is essential.
Operating room controls – backlighting must be dimmable and compatible with sterile cleaning protocols.
LuPhiTouch provides materials that resist disinfectants (IPA, hydrogen peroxide) and meet ISO 13485 standards.
Dashboard controls, steering wheel switches, and centre console panels.
Backlighting must be visible in bright sunlight and dimmable for night driving.
Our automotive‑grade solutions withstand -40°C to +85°C and meet salt fog resistance.
Control panels in factories, power plants, and offshore platforms.
Rugged, waterproof (IP67) designs with bright backlighting for safety in low‑light conditions.
EMI‑shielded options available.
Smart thermostats, home automation panels, audio/video remote controls.
Aesthetic backlighting enhances user experience and product premiumness.
Low‑profile designs and long battery life are key for portable devices.
Night‑vision compatible backlighting (e.g., red or green) and MIL‑STD compliance.
Extremely reliable, with redundant illumination paths.
LuPhiTouch follows a structured, transparent development process to ensure your backlit keypad is delivered on time and to specification.
Concept and Requirement Gathering: We discuss your application, environment, brightness needs, power budget, and aesthetic preferences. We also review any regulatory requirements (e.g., FDA, UL, CE).
Design and Engineering: Our team creates detailed circuit layouts, overlay artwork, and backlighting layer designs. We select the appropriate backlight technology and materials, optimising for cost and performance.
Prototyping: We produce functional samples, typically within 7‑10 days, allowing you to test illumination uniformity, tactile feel, and overall fit in your product.
Tooling and Production Tooling: Once the prototype is approved, we develop precision tooling for the overlay die‑cutting, circuit printing, and assembly fixtures.
Pilot Production: A pilot run of 100‑500 units is produced to validate process parameters and conduct full electrical, optical, and environmental testing.
Mass Production: We ramp up to volume production, with monthly capacity exceeding 500,000 units. Our automated assembly lines ensure consistent quality.
Quality Control: Every batch undergoes 100% visual inspection, electrical continuity testing, backlight brightness measurement, and sample environmental tests (temperature, humidity, vibration) per your specifications.
LuPhiTouch is committed to delivering reliable, long‑lasting backlit membrane switches. Our quality system is certified to:
ISO 9001 (Quality Management)
ISO 13485 (Medical Devices)
All materials are ROHS and REACH compliant, with FDA‑approved materials available.
We also provide full traceability documentation, including material certificates, test reports, and inspection records for every shipment.
Integrated Expertise: We combine membrane switch circuit printing, dome integration, and backlighting under one roof – reducing supply chain complexity and ensuring seamless coordination.
Engineering Support: Our application engineers provide DFM (Design for Manufacturability) feedback, helping you avoid costly design errors and optimise for manufacturability.
Rapid Prototyping: Get functional illuminated samples in days – accelerate your product development.
Competitive Pricing: Through efficient in‑house production and high‑volume capability, we offer cost‑effective solutions without compromising quality.
Global Service: We serve customers worldwide with dedicated project management, clear communication, and reliable logistics.
Long‑Term Partnership: We are committed to your success, offering ongoing technical support and responsive after‑sales service.
Backlit membrane switches are more than just illuminated buttons – they are a statement of quality, usability, and design sophistication. As a trusted [Internal Link: backlit membrane switches manufacturer -> /], LuPhiTouch has the experience, technology, and commitment to deliver custom solutions that exceed your expectations. Whether you need a simple single‑colour backlight for a remote control or a complex RGB illuminated panel for a medical system, we have the expertise to make it happen.
Explore our full range of membrane switch solutions
Partner with LuPhiTouch and let us light up your next product – with precision, reliability, and innovation.
