Backlit Silicone Keypads: LED & EL Lighting Guide

Backlit silicone keypads have become essential in modern electronic devices, from industrial control panels to automotive dashboards and medical equipment. A reliable Silicone Keypad Manufacturer can integrate advanced lighting technologies to enhance usability, aesthetics, and product value.

This guide explores the differences between LED and EL lighting, helping you choose the right solution for your silicone keypad switches project.

1. What Are Backlit Silicone Keypads?

Backlit silicone keypads are elastomer-based input components with integrated illumination. The lighting improves visibility in low-light environments and enhances user interaction.

Common applications include:

• Automotive dashboards

• Medical devices

• Consumer electronics

• Industrial control systems

2. LED Backlighting for Silicone Keypads

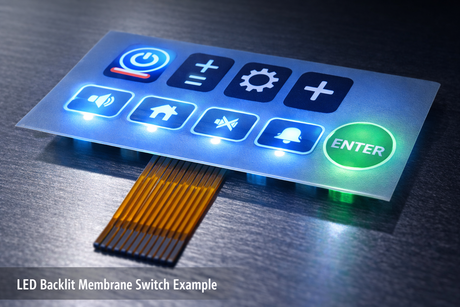

2.1 How LED Lighting Works

LED (Light Emitting Diode) backlighting uses small diodes mounted on a PCB beneath the keypad. Light passes through laser-etched or printed legends on the silicone surface.

2.2 Key Advantages

• High brightness and clarity

• Long lifespan (typically 50,000+ hours)

• Energy efficient

• Supports multi-color and RGB lighting

2.3 Design Considerations

• Requires precise alignment between LEDs and key legends

• May need light guides for uniform illumination

• Slightly higher tooling complexity

Learn more about design optimization in Custom Silicone Keypad Design Guide.

3. EL Backlighting for Silicone Keypads

3.1 How EL Lighting Works

EL (Electroluminescent) lighting uses a thin phosphor layer that emits light when an electric current is applied. It creates a uniform glow across the entire keypad surface.

3.2 Key Advantages

• Extremely thin and flexible

• Uniform, soft illumination

• Ideal for low-profile designs

3.3 Limitations

• Lower brightness compared to LEDs

• Shorter lifespan (typically 3,000–8,000 hours)

• Requires inverter for power supply

4. LED vs EL: Key Differences

5. Choosing the Right Backlighting Solution

Selecting between LED and EL depends on your application requirements:

Choose LED if:

• You need high brightness

• Multi-color or RGB effects are required

• Long-term durability is critical

Choose EL if:

• Ultra-thin design is essential

• Soft, uniform lighting is preferred

• A premium aesthetic is desired

A professional Silicone Keypad Manufacturer will typically recommend LED solutions for most industrial and automotive applications due to durability and cost efficiency.

6. Customization Options for Backlit Keypads

Modern silicone keypad switches can be fully customized, including:

• Laser etching for precise legends

• Multi-color printing

• Light blocking layers for sharp icons

• Tactile feedback optimization

• Waterproof and dustproof designs (IP65–IP67)

Check out Waterproof Silicone Keypads Solutions

7. Manufacturing Process Overview

A typical production workflow includes:

1. Mold design and silicone compression molding

2. Surface finishing (spray coating, printing)

3. Laser etching for backlight icons

4. Integration with PCB and lighting system

5. Quality inspection and testing

Working with an experienced Silicone Keypad Manufacturer ensures consistent quality, precise illumination, and reliable performance.

8. Quality Control and Testing

To ensure long-term performance, backlit keypads undergo:

• Life cycle testing (button presses)

• Illumination uniformity checks

• Environmental testing (temperature, humidity)

• Electrical performance validation

Conclusion

Backlit silicone keypads enhance both functionality and user experience. While LED lighting offers brightness, flexibility, and durability, EL lighting provides sleek and uniform illumination for specialized designs.

Choosing the right solution depends on your product requirements, budget, and design goals. Partnering with a trusted Silicone Keypad Manufacturer ensures your silicone keypad switches meet performance, aesthetic, and reliability standards.
