Beginner's Guide to Membrane Switch Manufacturing

Manufacturing reliable human-machine interfaces requires more than printing graphics onto plastic films. Membrane switch manufacturing combines material science, precision printing, electronics, adhesive technology, and quality control into one integrated production process.

Whether you're developing a medical device, industrial controller, smart appliance, or automotive control panel, understanding how membrane switches are manufactured helps you make better design decisions, reduce costs, and improve product reliability.

In this beginner's guide, you'll learn every major step of membrane switch manufacturing—from design and material selection to testing and production.

Custom Membrane Switch Manufacturer

What Is Membrane Switch Manufacturing?

Membrane switch manufacturing is the process of producing low-profile electrical switches consisting of multiple laminated layers that complete electrical circuits when pressed.

Unlike mechanical switches, membrane switches use flexible printed circuits and conductive contacts instead of moving mechanical components.

Typical membrane switches include:

• Graphic overlay

• Adhesive layer

• Circuit layer

• Spacer layer

• Bottom circuit

• Rear adhesive

• Optional backlighting

• Optional metal dome tactile layer

Because of their slim profile, waterproof performance, and customization flexibility, membrane switches are widely used across numerous industries.

Basic Structure of a Membrane Switch

Membrane Switch Design Guide

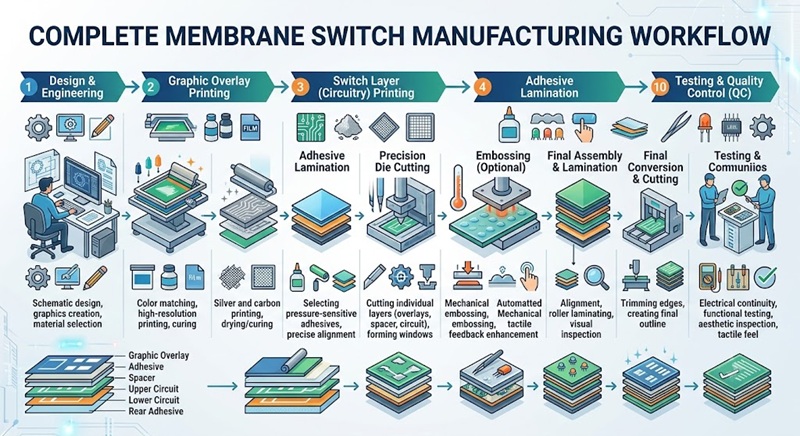

Step 1: Product Design and Engineering

Every membrane switch begins with engineering.

Designers determine:

• Button locations

• Circuit layout

• Connector type

• Tactile feedback

• Environmental requirements

• LED placement

• Waterproof level

• EMI shielding needs

Modern manufacturers use CAD software to optimize layouts before prototyping.

Important design considerations include:

• Actuation force

• Key spacing

• Graphic appearance

• Window transparency

• Circuit resistance

• Flexibility

Good engineering reduces manufacturing costs while improving reliability.

Step 2: Material Selection

Material selection significantly impacts product performance.

Common Overlay Materials

Circuit Materials

Common conductive materials include:

• Silver ink

• Carbon ink

• Copper flex circuits

• Printed conductive polymers

For harsh environments, polyester remains the most widely used overlay material due to its excellent chemical resistance and long service life.

Step 3: Graphic Printing

Printing creates the user interface.

Manufacturers typically use:

• Screen printing

• Digital printing

• UV printing

Printed graphics include:

• Logos

• Symbols

• Button outlines

• Warning labels

• Color layers

• Transparent display windows

Color consistency is maintained using Pantone standards.

Step 4: Circuit Printing

The circuit layer forms the electrical pathways.

Conductive inks are screen printed onto polyester films using precision mesh screens.

After printing:

• Conductive ink is cured

• Resistance is measured

• Continuity is verified

• Shorts are inspected

Modern automated inspection systems improve manufacturing consistency.

Step 5: Die Cutting and Lamination

Each layer is precisely cut using:

• Steel rule dies

• CNC cutting

• Laser cutting

Layers are then aligned using registration marks before lamination.

Proper alignment is essential because even small deviations may affect switch performance.

Multiple adhesive layers permanently bond the entire assembly together.

Step 6: Tactile Components Installation

Depending on the design, manufacturers may install:

• Metal domes

• Poly domes

• Embossed buttons

Metal domes provide:

• Crisp tactile feedback

• Audible clicking

• Long operating life

• Consistent actuation force

Applications requiring silent operation may use embossed keys instead.

Step 7: Electrical Testing

Quality control is a critical stage in membrane switch manufacturing.

Manufacturers typically perform:

Every circuit should be electrically tested before shipment.

Step 8: Reliability Testing

Professional manufacturers perform environmental testing to ensure long-term durability.

Common tests include:

• Temperature cycling

• High humidity

• Salt spray

• UV exposure

• Chemical resistance

• Mechanical life testing

High-quality membrane switches often exceed one million actuations.

Industries Using Membrane Switches

Because of their versatility, membrane switches are used across many industries.

Common Customization Options

Today's membrane switch manufacturing supports numerous custom features.

Popular options include:

• LED backlighting

• Fiber optic lighting

• EL backlighting

• Waterproof sealing

• Capacitive touch

• EMC shielding

• Flexible tail connectors

• USB interfaces

• FPC integration

• Silicone key integration

Customization allows manufacturers to meet nearly any application requirement.

How to Choose a Membrane Switch Manufacturing Partner

Selecting the right supplier can significantly impact product quality and project success.

Consider the following factors:

Experienced manufacturers also provide DFM (Design for Manufacturing) recommendations that help reduce production costs before tooling begins.

Future Trends in Membrane Switch Manufacturing

The industry continues to evolve with smarter technologies.

Emerging trends include:

• Printed electronics

• Flexible hybrid electronics (FHE)

• Capacitive touch interfaces

• Integrated IoT controls

• Antimicrobial overlays

• Sustainable materials

• AI-assisted quality inspection

• Automated optical inspection (AOI)

As products become more intelligent, membrane switches continue to combine aesthetics, durability, and functionality.

Conclusion

Understanding the fundamentals of membrane switch manufacturing helps engineers and purchasing teams make informed decisions throughout product development.

From material selection and circuit printing to lamination, testing, and customization, every manufacturing stage contributes to the performance and longevity of the final product. Partnering with an experienced manufacturer ensures consistent quality, shorter development cycles, and reliable long-term performance.

Ready to Start Your Custom Membrane Switch Project?

Whether you need a simple graphic interface or a fully customized membrane switch with LED backlighting, metal domes, EMI shielding, or waterproof construction, LuphiTouch can provide complete design, prototyping, and mass production support.

Frequently Asked Questions (FAQ)

Q1. What is membrane switch manufacturing?

A: Membrane switch manufacturing is the process of producing multilayer electrical switches using printed circuits, adhesive layers, graphic overlays, and optional tactile components to create reliable user interfaces.

Q2. What materials are commonly used in membrane switch manufacturing?

A: The most common materials include polyester (PET), polycarbonate (PC), conductive silver ink, carbon ink, pressure-sensitive adhesives, and metal domes.

Q3. How long do membrane switches typically last?

A: A professionally manufactured membrane switch can withstand over 1 million actuations, depending on materials, design, and operating conditions.

Q4. Can membrane switches be customized?

A: Yes. Manufacturers can customize size, shape, graphics, LED backlighting, tactile feedback, waterproof sealing, connectors, shielding, and circuit configurations.

Q5. Which industries use membrane switches?

A: Membrane switches are widely used in medical devices, industrial automation, automotive systems, consumer electronics, telecommunications, aerospace, and marine equipment.

Q6. How do I choose a membrane switch manufacturer?

A: Look for a manufacturer with strong engineering capabilities, ISO-certified quality systems, prototype support, comprehensive testing, customization expertise, and experience serving your target industry.
