For custom electronic interface components, quality and reliability are far more important than initial unit price. Custom backlit membrane switches are often installed in mission-critical medical equipment, industrial automation systems and automotive control panels, where a single switch failure can lead to equipment downtime, production loss or even safety risks. Unlike mass-produced standard keypads, custom designs involve more variable parameters, making systematic quality control throughout production even more critical.
Many buyers evaluate custom backlit switches only by appearance and sample performance, ignoring the full-process quality management system that determines batch consistency and long-term reliability. As a professional custom interface manufacturer with 10+ years of export experience, we break down our complete quality control framework and reliability testing standards to help global buyers evaluate supplier capabilities accurately.
Standard membrane switches are produced with fixed parameters and mature processes, so quality is relatively easy to stabilize. Custom backlit switches, by contrast, involve custom sizes, unique backlight layouts, special materials and tailored protection grades. Every design variable introduces potential quality risks if not properly controlled during production.
For medical and industrial applications in particular, switch failure is not just a maintenance issue — it can directly impact patient safety, production continuity and regulatory compliance. A robust quality control system ensures that every custom panel meets design specifications, performs reliably in the target environment and remains consistent across all production batches.
Our quality control runs through every stage from raw material incoming to finished product delivery, with documented procedures and traceable records for every batch.
All raw materials are inspected before entering the production line to eliminate quality risks at the source.
Overlay films: Thickness measurement, color difference check, adhesion test, UV resistance verification
Conductive materials: Sheet resistance test, circuit continuity verification, environmental compliance testing
LED components: Brightness binning, color temperature consistency, lifespan sampling test
Adhesives and auxiliary materials: Temperature resistance test, aging verification, RoHS compliance check
All materials are sourced from certified suppliers with complete material test reports. Unqualified batches are rejected directly and never enter production.
During production, QC inspectors conduct regular patrol checks at every production station:
Printing accuracy and color consistency verification
Circuit alignment and registration precision check
Lamination integrity and bubble detection
Dimensional accuracy and die-cutting quality inspection
Any process deviation is corrected immediately to prevent mass defective products. Critical process parameters such as temperature, pressure and time are recorded automatically by equipment for full traceability.
learn about our custom manufacturing process
Every finished custom backlit membrane switch undergoes 100% inspection before packaging:
Visual appearance inspection for scratches, blemishes, printing defects and dimensional deviation
Full circuit conduction and insulation resistance test
Backlight brightness uniformity and color consistency verification
Tactile force and rebound performance check
Sealing integrity verification for IP-rated products

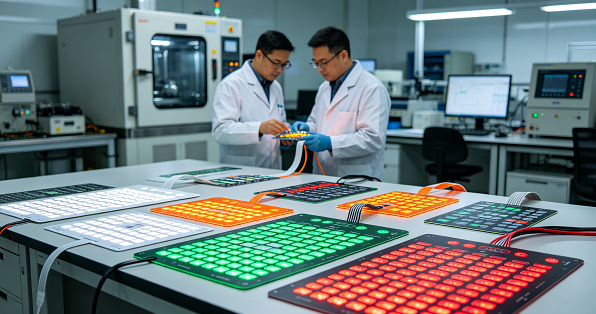

In addition to 100% routine inspection, every batch of custom switches undergoes sampled reliability testing in our internal laboratory. The table below summarizes core test items and standards:
Test Item | Test Standard | Acceptance Criteria |
|---|---|---|
Actuation cycle life | 5–8 million presses | No functional failure, no permanent deformation |
Backlight lifespan | 80,000–100,000 hours continuous operation | Brightness attenuation ≤ 10% |
Temperature cycling | -40°C to +85°C, 100 cycles | No delamination, no circuit failure, no backlight abnormality |
Waterproof immersion | IP67: 1m depth, 30 minutes; IP68: 2m depth, 1 hour | No water ingress, normal function after drying |
Vibration resistance | 10–500Hz, 2g, 3 axes, 2 hours per axis | No structural damage, no intermittent conduction |
UV aging | 500 hours UV irradiation | No yellowing, no cracking, no adhesion failure |
Alcohol disinfection | 100 cycles of 75% alcohol wiping | No fading, no surface degradation |
For official environmental testing standards for electronic components, refer to the IEC 60068 standard.
Custom backlit switches have unique quality risks that standard products do not. We implement targeted controls for these custom-specific variables:
Poorly designed backlight systems show visible hot spots above LEDs and dim areas between keys. We use optical simulation software to optimize light guide structure, LED placement and diffusion layer design before production. Every prototype is tested with a brightness meter to ensure uniformity deviation within 10% across the entire panel.
Custom colors and custom LED configurations are prone to batch-to-batch variation. We use standardized Pantone color matching for overlays and binning control for LEDs, with reference samples retained for every order. Color difference between batches is controlled within industry-acceptable limits.
Irregular contours, display cutouts and custom mounting holes create potential sealing failure points. Our lamination process is optimized for each custom geometry, with additional edge sealing treatment for IP67/IP68 rated products. Every IP-rated panel undergoes pressure decay or immersion testing to verify sealing performance.
Special materials such as antibacterial PC, UV-stabilized films and low-temperature adhesives are validated through pre-production compatibility testing to ensure they work together reliably in the target environment.
Different industries have additional quality and compliance requirements for custom backlit membrane switches:
Medical: Biocompatible material verification, alcohol disinfection resistance, ISO 13485 aligned production controls, full traceability records
Industrial: IP65+ sealing certification, vibration and temperature cycle testing, long cycle life verification
Automotive: Wide temperature range validation, UV aging testing, vibration resistance certification
Consumer: RoHS/REACH compliance, color consistency, appearance finish standards
All our products comply with RoHS, CE and ISO 9001 quality management system standards, with complete certification documentation available for customs clearance and regulatory compliance.
Every custom order comes with a batch inspection report and relevant certification documents
All products are covered by a 12-month quality warranty from delivery
If quality issues occur due to manufacturing defects, we arrange replacement or rework at our cost
We support third-party inspection and testing upon customer request
All production records and test reports are retained for 3 years for traceability
Looking for a custom backlit membrane switch supplier with proven quality and reliability? Send us your design requirements and application specifications for a free quality plan proposal and quotation.
Q1: Do you provide test reports for custom backlit membrane switches? A: Yes. Every batch comes with a batch inspection report. We can also provide full reliability test reports and material certification documents upon request.
Q2: How do you ensure consistent quality across multiple production batches? A: We use standardized raw material suppliers, fixed process parameters, retained reference samples and regular calibration of testing equipment to ensure consistent quality across all batches.
Q3: What is the warranty period for custom backlit membrane switches? A: All custom products come with a 12-month quality warranty from the date of delivery, covering manufacturing defects in materials and workmanship.
Q4: Can you conduct third-party quality inspection? A: Yes. We support third-party inspection by designated testing agencies or customer representatives before shipment.
Q5: What is the typical lifespan of custom backlit membrane switches? A: Industrial-grade custom backlit switches are rated for 5–8 million actuations, with LED lifespan of 80,000–100,000 hours under normal operating conditions.
Q6: Do you support IP68 fully waterproof custom backlit switches? A: Yes. Our fully sealed lamination process and edge sealing technology support IP68 rated backlit membrane switches, verified through standard immersion testing.
