Standard off-the-shelf backlit keypads rarely fit the unique dimensions, functional requirements, environmental conditions and brand identity of specialized electronic equipment. Custom backlit membrane switches solve this problem by delivering fully tailored illuminated control panels built to your exact specifications, from size and shape to backlight effect, tactile feel and protection rating. Built on proven membrane switch technology, custom solutions deliver a perfect mechanical fit, targeted performance and differentiated brand appearance, all while controlling total cost of ownership.
Unlike trading companies that only offer pre-set configurations, a real manufacturing partner can adjust every layer and component of the panel to match your equipment. As an OEM factory with over 10 years of custom interface production experience, we design and build custom backlit membrane switches for medical, industrial, automotive and consumer clients worldwide, from 50-piece prototype runs to full-container mass production.

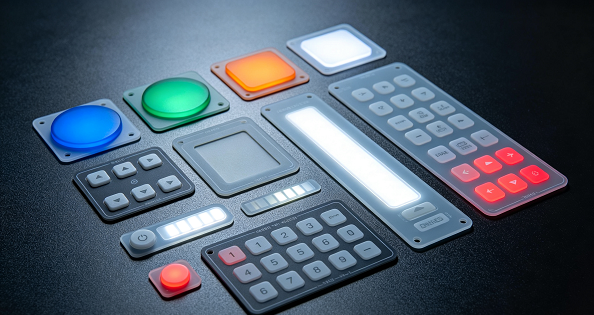

Custom backlit membrane switches are multi-layer laminated control panels manufactured entirely according to customer drawings, functional requirements and application scenarios. They retain the core sealed structure of standard membrane switches — graphic overlay, spacer layer, tactile layer, circuit layer and adhesive backing — with the addition of a custom-configured light distribution layer and integrated LED components.
The key difference from standard products is that every parameter is adjustable. Instead of adapting your equipment to a generic keypad, the panel is engineered to fit your device shell, operating environment and user needs exactly. This results in better assembly fit, higher reliability and stronger product differentiation.
We support end-to-end customization across every structural and functional dimension. The table below summarizes all available options:
Customization Category | Available Options | Typical Application Scenarios |
|---|---|---|
Graphic Overlay | Autotex PET, SABIC PC, anti-UV, antibacterial, matte/glossy, anti-glare | Medical devices, outdoor terminals, consumer appliances |
Backlight System | Side LED + LGF, direct per-key LED, EL film, RGB multi-color, selective key lighting | Medical monitors, industrial panels, gaming devices, smart home |
Tactile Feedback | Metal dome (crisp click), polyester dome (silent), non-tactile, custom actuation force | Industrial control, medical equipment, office devices |
Protection Rating | IP54, IP65, IP67, IP68 fully sealed | Indoor consumer, industrial factory, outdoor equipment, wash-down scenarios |
Circuit Type | Printed PET, rigid PCB, flexible FPC, ESD protected | Standard keypads, high-precision instruments, curved panels |
Electronic Integration | LEDs, connectors, resistors, capacitors, PCBA, display windows | Complex control panels, intelligent terminals, medical devices |
Brand & Shape | Custom outer contour, custom key layout, logo printing, Pantone color matching | Branded consumer products, private mold equipment |
Our engineering team provides free DFM (Design for Manufacturing) review for every custom design to optimize manufacturability, reduce tooling costs and improve production yield without compromising functional requirements.
explore our full custom capabilities
Custom backlit membrane switches are engineered to meet the unique demands of each industry:
Medical devices require antibacterial surfaces, alcohol-resistant overlays and soft non-glare illumination for low-light wards and operating rooms. We customize medical-grade panels with biocompatible materials, IP65+ sealing and uniform backlighting, with full documentation for equipment registration.
Factory automation, CNC machines and outdoor terminals face dust, oil, vibration and temperature swings. We build rugged custom panels with IP65–IP68 sealing, vibration-resistant circuits, wide-temperature materials and crisp tactile feedback optimized for gloved operation.
In-vehicle and roadside equipment must withstand extreme temperatures, UV exposure and long-term vibration. Our custom automotive solutions use temperature-stabilized materials, anti-UV overlays and reinforced lamination for reliable outdoor performance.
Consumer and smart home products prioritize brand identity, aesthetic appeal and cost efficiency. We customize brand-matched colors, exclusive logos, selective backlighting and silent tactile options, with cost-optimized designs for mass production.
For official definitions of ingress protection ratings, refer to the IEC 60529 IP rating standard.
Demand Confirmation Submit CAD drawings, physical samples or functional requirements. Our engineering team reviews technical feasibility and application fit within 2 working days.
DFM Review & Quotation We provide free design optimization suggestions and a transparent all-inclusive quotation covering tooling fee, unit price and lead time, with no hidden charges.
Prototype Manufacturing 7–10 working days to produce fully functional custom samples for testing of appearance, tactility, backlight uniformity and electrical performance.
Sample Approval & Revision Verify samples against your requirements. We adjust design, material or parameters as needed until all specifications are met.
Mass Production Standardized assembly line production with regular progress updates. Typical mass production lead time is 15–25 working days after sample confirmation.
Quality Inspection & Delivery 100% appearance and functional testing, batch reliability sampling, export-grade packaging and complete certification documentation.
Over-pursuing ultra-thin design Extreme thinness often compromises backlight uniformity and structural durability. For industrial and medical applications, prioritize performance and reliability over minimal thickness.
Only comparing tooling cost Low initial tooling fees often come with higher per-unit costs and lower yield in mass production. Evaluate total project cost, not just upfront tooling charges.
Skipping DFM review Unoptimized designs frequently lead to low production yield, high defect rates and repeated mold modifications. Early DFM review typically reduces total project cost by 15–30%.
Ignoring batch color consistency Without standardized color control, different production batches may show visible color differences. We use unified Pantone matching and LED binning to ensure consistent appearance across all orders.
Over-specifying protection grade IP65 is sufficient for most indoor industrial and medical scenarios. Specifying IP68 for products that never face immersion adds unnecessary sealing cost.
In-house engineering team with over 10 years of experience, providing free design optimization and technical support throughout the project
4,500㎡ factory with automated printing and lamination lines, annual output over 5 million sets
Flexible MOQ starting from 50 pieces for prototype orders, with tiered pricing for bulk production
Strict quality control with 100% functional testing and batch reliability verification
Full certifications including RoHS, CE and ISO 9001, with complete documentation for customs and compliance
Responsive after-sales support with priority replacement to minimize production downtime
Ready to build custom backlit membrane switches for your equipment? Send us your design files, functional requirements and operating environment details for a free DFM review and quotation within 2 working days.
Q1: What is the minimum order quantity for custom backlit membrane switches? A: We support low MOQ starting from 50 pieces for prototype trial orders, with tiered wholesale pricing for larger bulk production volumes.
Q2: How long does it take to make custom backlit membrane switch samples? A: Standard functional prototype samples take 7–10 working days. Expedited options are available for urgent projects.
Q3: Can you produce custom shapes and irregular contours? A: Yes. We support fully custom outer shapes, display windows, mounting holes and irregular key layouts to match your exact equipment design.
Q4: Is there a mold fee for custom designs? A: One-time tooling fees apply for exclusive custom designs. The mold fee can be fully deducted when order volume reaches the agreed threshold.
Q5: Can you help with design if I don’t have complete CAD files? A: Absolutely. Our engineering team can develop a full custom solution based on your functional requirements, dimensions and budget, with free optimization suggestions.
Q6: What certifications do your custom backlit membrane switches have? A: All products comply with RoHS, CE and ISO 9001 standards. Medical and industrial grade solutions can also provide additional material safety and performance test reports.
