Moisture, dust, and chemical exposure are the silent killers of electronic interfaces. In food processing plants, marine vessels, outdoor kiosks, and hospital wards, a standard keypad will fail — not from age, but from the environment it was never designed to survive. When a single compromised button leads to equipment downtime, safety incidents, or costly warranty claims, the true cost of an inadequate interface becomes painfully clear.

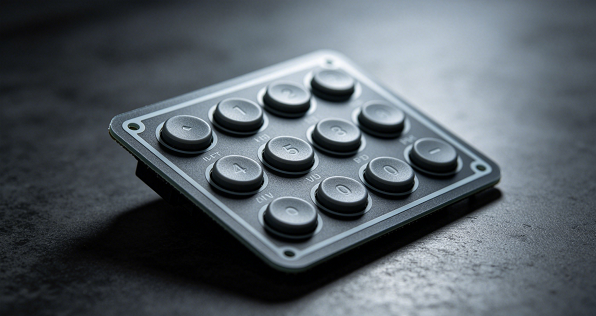

Custom membrane switch keypad solutions with IP67 waterproof protection solve this problem at the structural level. Unlike off-the-shelf alternatives that simply add a surface coating, true IP67-rated membrane keypads are engineered from the ground up with multi-layer sealing architecture — ensuring reliable operation even after sustained exposure to water jets, temporary submersion, and corrosive cleaning agents.
The IP (Ingress Protection) rating system, defined by IEC 60529, provides a precise benchmark for environmental resilience. For membrane switch keypads, IP67 breaks down as follows:
"6" — Complete dust protection: No ingress of dust permitted. The keypad is fully sealed against particulate contamination, critical in environments with metal dust, flour, sand, or fiber particles.
"7" — Temporary immersion protection: The keypad withstands submersion in water up to 1 meter depth for 30 minutes without functional degradation or internal moisture ingress.
This is not a "splash-resistant" label. IP67 means the keypad can be deliberately submerged, hosed down during washdown procedures, or exposed to driving rain — and continue operating without failure. For applications requiring even more extreme protection, IP68 (continuous submersion beyond 1 meter) options are also available through specialized manufacturing.
Achieving genuine IP67 performance requires a systematic approach across every layer of the keypad assembly. Here are the core engineering strategies:
The perimeter of the keypad is the most vulnerable pathway for moisture. Professional manufacturers apply continuous-bead adhesive seals around the entire overlay-to-circuit boundary, eliminating micro-gaps where water or cleaning chemicals could penetrate. Advanced designs incorporate ultrasonic welding or over-molded silicone gaskets to create hermetic edge seals that maintain integrity across thousands of thermal cycles.
The graphic overlay serves as the first line of defense against environmental attack. Two primary materials dominate IP67-rated designs:
Polyester (PET): Offers excellent chemical resistance to isopropyl alcohol, bleach solutions, and industrial degreasers. Hard-coat PET variants provide additional scratch resistance, making them ideal for medical and food processing environments requiring frequent sanitization.
Polycarbonate (PC): Delivers superior impact resistance and UV stability for outdoor installations. PC overlays withstand prolonged sun exposure without yellowing or embrittlement, maintaining both legibility and structural integrity.
Silver ink circuits — the conductive pathways that make your keypad function — are protected with dielectric overcoat layers. These coatings prevent corrosion from humidity, condensation, or chemical vapor exposure, ensuring stable contact resistance over the product's full operational life. This is especially critical in applications with wide thermal swings where internal condensation is unavoidable.
IP67 sealing doesn't mean sacrificing tactile feel. Metal dome technology — using stainless steel domes rated for 1 million+ actuation cycles — delivers crisp, positive tactile feedback while maintaining the sealed envelope. The dome is encapsulated within the laminate stack, protected from contamination without compromising the operator's ability to confirm key presses by touch alone.
Parameter | Specification |
|---|---|
Protection Rating | IP67 (IP68 available) |
Operating Voltage | ≤ 50 VDC |
Operating Current | ≤ 100 mA |
Contact Resistance | 0.5 – 10 Ω |
Insulation Resistance | ≥ 100 MΩ |
Dielectric Strength | 1,500 VDC |
Actuation Force | 15 – 750 g (customizable) |
Switch Stroke | 0.1 – 0.5 mm (flat), 0.6 – 1.5 mm (tactile) |
Life Expectancy | ≥ 1 million cycles (tactile), ≥ 5 million (flat) |
Operating Temperature | -40°C to +80°C |
Humidity Resistance | 40°C, 90–95% RH, 240 hours |
Medical Devices
Patient monitors, infusion pumps, and surgical equipment must withstand repeated exposure to hospital-grade disinfectants — including bleach-based solutions and UV-C sterilization — without seal degradation. IP67 membrane keypads enable direct surface cleaning without risk of internal contamination, supporting infection control protocols.
Industrial Automation & Food Processing
Factory floor control panels face daily exposure to coolant spray, metal dust, hydraulic oil mist, and high-pressure washdowns. In food and beverage processing, keypads must endure caustic cleaning agents at elevated temperatures while maintaining legible graphics and reliable tactile response.
Marine & Offshore
Saltwater spray, constant vibration, and near-100% humidity create one of the most corrosive environments for any electronic interface. IP67 membrane keypads with UV-stabilized polycarbonate overlays and marine-grade adhesives are standard on navigation consoles, engine room controls, and deck equipment.
Outdoor Kiosks & Charging Stations
Public-facing interfaces endure rain, dust, temperature extremes from -40°C to +80°C, and vandalism attempts. IP67 sealing combined with anti-vandal overlay materials ensures years of reliable outdoor service without maintenance intervention.
Agricultural Machinery
Tractor cabs, combine harvesters, and irrigation controllers operate in mud, rain, dust, and extended nighttime conditions. IP67 membrane keypads with embossed tactile buttons allow gloved operation while remaining fully sealed against environmental contaminants.
IP67 protection is the foundation — but your keypad likely needs more. Leading manufacturers offer a full range of customization options that integrate seamlessly with sealed designs:
LED backlighting: Edge-lit or fiber optic illumination for low-light environments, sealed within the laminate stack to maintain IP integrity.
Embossed keypads: Raised button profiles (pillow, rim, or travel emboss) that improve tactile identification — critical for gloved operators.
Custom graphics: Full-color Pantone/RAL matching, scratch-resistant coatings, and anti-glare finishes for brand consistency and readability.
RFID/NFC integration: Embedded antenna layers within the sealed keypad for contactless identification applications.
Flex tail connectors: Custom tail lengths, pin configurations, and connector types (ZIF, FPC, solder tabs) for plug-and-play integration.
A reliable custom membrane switch keypad partner will guide you through a structured development process:
Design review & DFM feedback: Your engineering files are reviewed for manufacturability, with recommendations on material selection, seal design, and circuit optimization specific to your IP67 requirements.
Functional prototypes: Sealed samples delivered within 7–10 business days, ready for fit-check, environmental testing, and user validation.
Production validation: First-article inspection with full dimensional, electrical, and IP rating verification before volume production begins.
Volume manufacturing: Consistent quality across production runs, backed by ISO 9001-certified quality management and 100% electrical testing on every unit.
Whether you need a simple 4-key sealed panel for a medical device or a complex 50-key backlit keypad with custom graphics for an industrial control system, the right manufacturing partner will deliver IP67 performance without compromising on design flexibility, tactile quality, or production scalability.
