In the world of human‑machine interfaces, few components offer the combination of versatility, durability, and cost‑effectiveness found in custom membrane switches. From medical monitors and industrial control panels to household appliances and aerospace cockpits, these thin, sealed, and highly reliable interfaces are the silent backbone of modern electronics. But not all membrane switches are created equal – and the difference lies in the expertise of the custom membrane switches manufacturer behind them. At LuPhiTouch, we have spent decades perfecting the art and science of custom membrane switch engineering, delivering solutions that meet the most demanding specifications across industries.
A membrane switch is a momentary electrical switch that consists of several flexible layers, typically including:
Graphic overlay – the top layer with printed legends, colours, and textures.
Spacer layer – creates an air gap between the top circuit and bottom circuit.
Circuit layers – printed conductive traces (usually silver or carbon on polyester) that complete the circuit when pressed.
Adhesive layer – for mounting the switch to the device housing.
When a user presses the overlay, the top conductive pad deforms through the spacer hole and contacts the bottom circuit, closing the switch. When pressure is released, the overlay springs back, opening the circuit.
“Custom” means every aspect – shape, size, layout, materials, tactile feel, illumination, and environmental protection – is designed specifically for your product. As a professional, LuPhiTouch works closely with OEMs to translate their interface requirements into precise, manufacturable designs.
Compared to mechanical switches, touchscreens, or off‑the‑shelf keypads, custom membrane switches offer distinct advantages:
Virtually any shape, size, or key arrangement.
Integrated graphics, branding, and colour matching.
Embossed keys for tactile location.
Transparent windows for displays.
Backlighting (LED, EL, fiber optic).
Sealed construction resists dust, moisture, and contaminants.
Lifespan of 1‑10 million actuations depending on dome type.
Resistance to chemicals, UV, and extreme temperatures.
No moving mechanical parts – minimal wear.
Typically less than 1 mm thick.
Lightweight – ideal for portable and handheld devices.
Lower unit cost at high volumes compared to mechanical switches.
Reduced assembly labour – often supplied as a complete module.
Lower warranty claims due to high reliability.
Custom tactile feedback (metal or polyester domes).
Quiet operation – no clicking noise.
Clean, sealed surface easy to clean and disinfect.

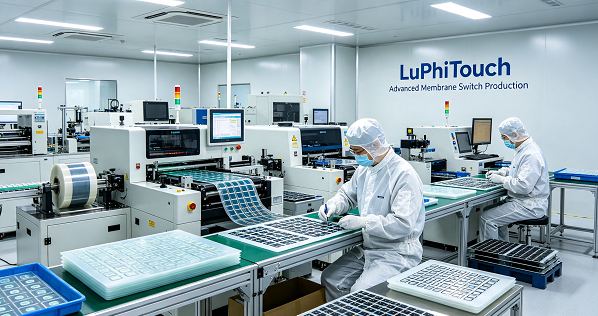

At LuPhiTouch, our manufacturing process is built on decades of experience, advanced equipment, and rigorous quality control. Here is what sets us apart.
We produce all circuit layers in‑house using high‑precision screen printing technology. Our capabilities include:
Silver‑based conductive inks – for excellent conductivity and flexibility.
Carbon‑based inks – for low‑cost, reliable contact pads.
Fine‑line printing – down to 0.2 mm line width and spacing.
Multi‑layer printing – for complex circuits with jumpers or crossovers.
FPC (flexible printed circuit) integration – for advanced interconnections.
By controlling printing in‑house, we ensure consistent quality, fast turnaround, and full traceability.
The choice of materials determines the performance and lifespan of a membrane switch. LuPhiTouch offers a wide range of proven materials:
Overlay films: Polyester (PET) – scratch‑resistant and dimensionally stable; Polycarbonate (PC) – high impact resistance; both available with hard coatings for enhanced durability.
Adhesives: 3M™ and other premium acrylic or silicone adhesives, selected for bonding strength, temperature range, and removability.
Spacers: Polyester with pressure‑sensitive adhesive, available in various thicknesses (0.05‑0.25 mm) to control key travel.
Conductive domes: Metal snap domes (stainless steel) for crisp tactile feedback and long life; polyester domes for softer feel and lower cost.
We can also supply EMI/RFI shielding layers, antimicrobial additives, and UV‑stabilised films for harsh environments.
Our graphic overlay production combines screen printing and digital printing to achieve vibrant, durable graphics. We offer:
Screen printing – cost‑effective for large volumes, excellent colour saturation.
Digital printing – for small runs and complex colour gradients.
Pad printing – for 3D components or irregular surfaces.
Laser etching – for ultra‑durable legends that never wear off.
Embossing – raised keys for improved tactile orientation, available in various heights (0.3‑1.5 mm).
Textured finishes – gloss, matte, fine grain, or soft‑touch for premium feel.
We integrate metal snap domes or polyester domes directly into the membrane stack. Our dome placement accuracy is within ±0.1 mm, ensuring consistent actuation force across all keys. We offer:
Force ranges: 50‑300 gf
Travel distances: 0.3‑1.5 mm
Dome diameters: 3‑20 mm
Lifetime: Up to 10 million cycles for metal domes
LuPhiTouch provides three illumination technologies:
LED backlighting – bright, colourful, and long‑lasting.
Fiber optic light guides – ultra‑thin and uniform.
Electroluminescent (EL) – soft, uniform glow for low‑power applications.
Backlighting can be selectively applied to individual keys, zones, or the entire panel.
We offer flexible termination options to match your system:
ZIF (zero insertion force) connectors – for easy cable connection.
FFC (flat flexible cable) – integrated or attached.
Pin‑out connectors – standard or custom spacing.
Solder pads – for direct PCB mounting.
Custom cable assemblies – with strain relief and shielding.
To reduce your assembly steps, LuPhiTouch can supply fully assembled membrane switch modules, including:
Keypad + PCB assembly
Keypad + housing frame
Keypad + display window + LEDs
This integration simplifies your supply chain and speeds up your production.
As a dedicated, LuPhiTouch offers a vast array of customisation parameters:
Parameter | Customisation Range |
|---|---|
Overall size | From 10×10 mm to 600×600 mm |
Key count | 1 to 200+ |
Key size | 3 mm to 50 mm |
Key spacing | From 2 mm |
Tactile type | Flat (no feedback), polyester dome, metal snap dome |
Actuation force | 50‑300 gf |
Travel | 0.3‑1.5 mm |
Backlight | LED, EL, fiber optic |
EMI shielding | Yes (copper or silver shielding layers) |
Waterproof rating | IP54, IP65, IP67 |
Operating temperature | -40°C to +85°C (or +125°C with special materials) |
UV resistance | Yes (UV‑stabilised films) |
Chemical resistance | Alcohol, mild acids, cleaning agents |
Colour match | Pantone or custom |
Surface finish | Gloss, matte, texture, soft‑touch |
Embossing | 0.3‑1.5 mm height |
Connector | ZIF, FFC, pin‑out, custom cable |
This level of flexibility ensures that your membrane switch fits your product perfectly, both functionally and aesthetically.
LuPhiTouch has supplied custom membrane switches to a wide range of industries:
Patient monitoring equipment, infusion pumps, ventilators.
Requirements: disinfection resistance, sealed surface, low noise, ISO 13485 compliance.
Factory automation, CNC machines, testing equipment.
Requirements: high durability, chemical resistance, operation with gloves.
Dashboard controls, steering wheel switches, infotainment panels.
Requirements: temperature extremes, UV resistance, vibration tolerance.
Microwave ovens, washing machines, remote controls, smart thermostats.
Requirements: aesthetics, cost‑effectiveness, long life.
Cockpit controls, portable communication devices, navigation systems.
Requirements: extreme reliability, EMI shielding, MIL‑STD compliance.
Navigation equipment, communication panels, engine controls.
Requirements: salt fog resistance, waterproof sealing, sunlight readability.
Every custom membrane switch we produce undergoes rigorous quality checks:
Circuit printing: optical inspection and resistance measurement.
Overlay printing: colour matching, adhesion testing.
Dome placement: automated vision systems verify position and force.
100% electrical continuity and insulation resistance testing.
Backlight brightness and colour uniformity measurement (for illuminated units).
Visual inspection under magnification for cosmetic defects.
Temperature cycling (–40°C to +85°C, 100 cycles).
Damp heat (85°C / 85% RH, 240 hours).
Salt spray (5% NaCl, 48 hours, per ASTM B117).
UV exposure (500 hours, QUV tester).
Lifecycle endurance – up to 10 million actuations on random samples.
All test records are documented and provided with shipment, ensuring full traceability.
LuPhiTouch is proud to operate under the following certifications:
ISO 9001:2015 – Quality Management.
ISO 13485:2016 – Medical Devices (upon request).
All materials comply with ROHS, REACH, and Conflict Minerals requirements.
FDA‑listed materials available for medical and food‑contact applications.
View our certifications and test reports
Decades of Expertise – We have been engineering and manufacturing membrane switches since 2003, accumulating deep knowledge in materials, processes, and applications.
Integrated Facility – From circuit printing and overlay production to dome integration and final assembly – all under one roof. This ensures quality control and rapid turnaround.
Rapid Prototyping – We can deliver functional samples in 7‑10 working days, allowing you to test and validate early in your development cycle.
Engineering Partnership – We offer Design for Manufacturability (DFM) reviews, material recommendations, and cost‑optimisation suggestions to help you achieve the best product at the best price.
Global Reach – We export to North America, Europe, Asia, and beyond, with reliable logistics and dedicated project managers for each region.
Competitive Pricing – Through efficient production and volume purchasing, we offer cost‑effective solutions without compromising quality.
Responsive Support – We assign a single point of contact for each project, ensuring clear communication and prompt issue resolution.
Whether you are designing a new medical device, upgrading an industrial control panel, or creating the next smart home product, the choice of membrane switch can make or break the user experience. As a trusted [Internal Link: custom membrane switches manufacturer -> /], LuPhiTouch has the experience, capability, and commitment to deliver the perfect solution for your application.
Contact us today to discuss your requirements. Let us show you why leading OEMs trust LuPhiTouch for their custom membrane switch needs.
We look forward to engineering your next interface success.
