How Membrane Switches Are Tested

A membrane switch may look like a simple user interface, but its performance depends on multiple printed layers, conductive circuits, adhesives, graphics, and mechanical components working together.

Before shipment, professional membrane switches are typically tested for electrical performance, switching reliability, mechanical durability, environmental resistance, appearance, and dimensional accuracy.

For equipment manufacturers, understanding these tests is important because a membrane switch is often used repeatedly throughout the product's service life. A failure in the switch can affect the usability and reliability of the entire device.

Why Testing Is Important for Membrane Switches

Different applications place different demands on a membrane switch.

A medical device may require stable electrical performance and easy cleaning. Industrial equipment may need resistance to dust, moisture, chemicals, and frequent operation. Consumer electronics may place greater emphasis on appearance, tactile feedback, and backlighting.

Therefore, testing should not be limited to checking whether a switch works when it is first manufactured.

A professional testing program evaluates whether the switch can continue to perform reliably under expected operating conditions.

1. Electrical Testing

Electrical testing is one of the most important steps in membrane switch manufacturing.

The conductive circuit must create a reliable electrical connection when the operator presses the designated key.

A manufacturer may test parameters such as:

• Contact resistance

• Circuit continuity

• Insulation resistance

• Dielectric strength

• Open circuits

• Short circuits

• Key-to-key isolation

Contact Resistance Testing

Contact resistance indicates how easily current can pass through the switch contact.

Excessive resistance can cause unstable signals, poor equipment response, or intermittent operation.

During testing, the manufacturer measures the resistance of the circuit and verifies that it remains within the customer's specified range.

Circuit Continuity Testing

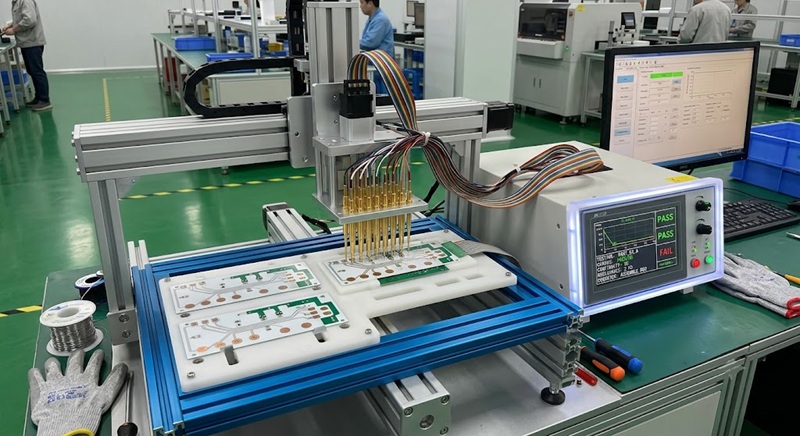

Automated electrical testers can check multiple circuit paths quickly.

The test identifies:

• Open circuits

• Short circuits

• Incorrect connections

• Missing conductive traces

• Electrical defects

This is especially important for complex custom membrane switches containing dozens or hundreds of individual keys or circuit connections.

custom membrane switches

2. Functional Switching Tests

Electrical continuity alone does not prove that a membrane switch provides a good user experience.

Functional testing evaluates whether each key operates correctly when pressed.

Technicians or automated equipment may verify:

1. The key responds to the specified actuation force.

2. The electrical circuit closes correctly.

3. The key returns to its original position.

4. No unintended activation occurs.

5. The tactile response is consistent.

For applications with frequent operator interaction, consistent actuation is particularly important.

A professional membrane switches manufacturer can also customize the actuation force and tactile response according to the equipment requirements.

3. Actuation Force Testing

Actuation force is the amount of force required to activate a key.

The appropriate force depends on the application.

For example:

• Handheld equipment may benefit from a lighter actuation force.

• Industrial control panels may require a firmer response.

• Portable devices may need a balance between accidental activation prevention and user comfort.

A force gauge or automated testing machine can measure the force required to activate individual keys.

Why Actuation Force Matters

If the force is too low, accidental activation may occur.

If the force is too high, operators may experience discomfort, especially when a control panel is used repeatedly.

Testing helps ensure that the finished switch matches the customer's design specification.

4. Mechanical Life Testing

Membrane switches are often pressed thousands or millions of times during their service life.

Mechanical life testing simulates repeated operation to determine whether the switch can maintain reliable performance after extensive use.

A test machine repeatedly presses the same key using controlled:

• Force

• Stroke

• Speed

• Frequency

• Number of cycles

After the specified number of cycles, the switch is checked again for electrical and mechanical performance.

The actual test cycle count should be defined according to the product design and customer requirements rather than using one universal number for every application.

5. Environmental Testing

Membrane switches may be installed in environments with temperature changes, humidity, dust, water, chemicals, or UV exposure.

Environmental testing helps determine whether the materials and construction are suitable for the intended operating conditions.

Common environmental tests include:

• High-temperature testing

• Low-temperature testing

• Temperature cycling

• Humidity testing

• Water resistance testing

• Chemical resistance testing

• UV exposure testing

The exact test conditions should be determined according to the final application.

For example, a switch installed on outdoor equipment may require significantly different environmental validation from one used inside an office device.

6. Waterproof and Sealing Tests

For equipment exposed to moisture, sealing performance is critical.

A membrane switch can be designed with sealed edges, suitable adhesive systems, and protective overlays to improve resistance to moisture and contaminants.

Testing may evaluate whether water or moisture can penetrate the switch structure.

Depending on the application, manufacturers may perform:

• Water spray tests

• Moisture exposure tests

• Humidity testing

• Sealing inspections

• IP-related validation when applicable

Important: An actual IP rating should only be claimed when the complete product assembly has been tested according to the applicable standard. A membrane switch alone should not automatically be described as having a particular IP rating.

7. Adhesion and Layer Bonding Tests

A membrane switch consists of multiple layers that must remain securely bonded.

Typical layers may include:

• Graphic overlay

• Spacer

• Circuit layer

• Adhesive layer

• Bottom layer

• Optional LED or backlighting components

If the adhesive system is not properly selected or processed, problems such as lifting, bubbling, or delamination may develop.

Adhesion testing helps evaluate whether the layers remain securely attached during normal use.

8. Surface and Graphic Inspection

The graphic overlay is the visible part of the membrane switch, so appearance inspection is an important quality-control step.

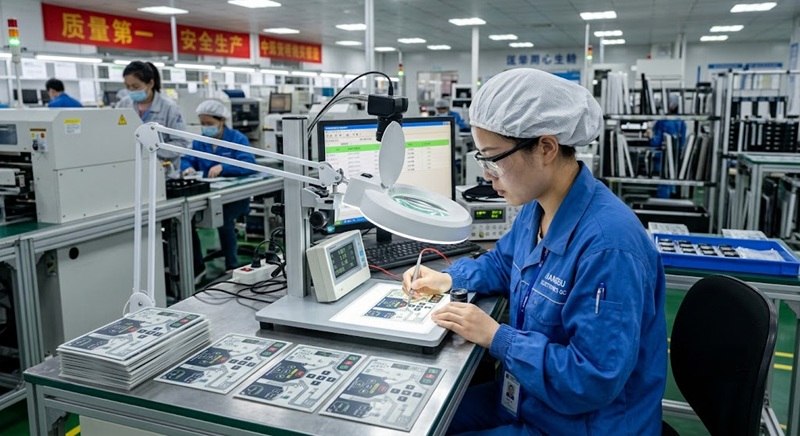

Inspectors may check for:

• Scratches

• Printing defects

• Color inconsistencies

• Pinholes

• Bubbles

• Contamination

• Misalignment

• Poor edges

• Incorrect symbols

• Uneven surfaces

For branded control panels, even small graphic defects can affect the perceived quality of the final product.

Therefore, professional manufacturers often combine automated inspection with visual inspection.

9. Dimensional and Alignment Inspection

Dimensional accuracy is essential when a membrane switch needs to be installed into an existing enclosure or control panel.

Manufacturers may inspect:

• Overall length and width

• Key position

• Hole position

• Tail dimensions

• Connector location

• Mounting features

• Layer alignment

• Graphic alignment

A switch can pass electrical testing but still fail during assembly if its dimensions are incorrect.

For this reason, dimensional inspection should be performed before mass production and during production quality control.

10. Testing Backlit Membrane Switches

Backlit membrane switches require additional testing because they contain lighting components and optical structures.

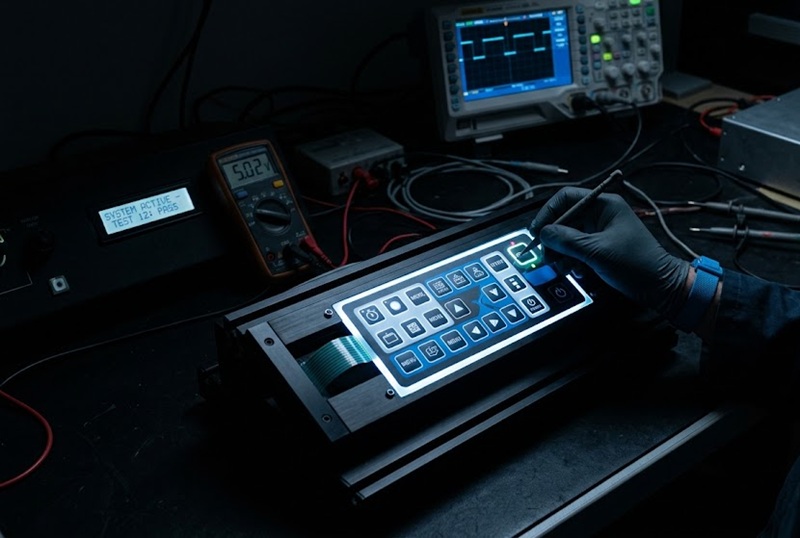

The testing process may evaluate:

• Light output

• Brightness consistency

• Light distribution

• Dark spots

• LED operation

• Color consistency

• Light leakage

• Illumination response

The design may use LEDs, light guides, printed light-diffusion structures, or other illumination technologies.

Why Backlight Uniformity Matters

A backlit interface should provide clear and consistent illumination.

Uneven brightness can make some symbols difficult to read and may reduce the perceived quality of the finished control panel.

For this reason, visual inspection should be performed under controlled lighting conditions whenever possible.

11. Chemical Resistance Testing

Industrial and medical equipment may be exposed to cleaning agents, oils, solvents, disinfectants, or other chemicals.

Chemical resistance testing evaluates whether the graphic overlay and other exposed materials can withstand the chemicals expected during normal use.

After exposure, inspectors may evaluate:

• Color change

• Printing damage

• Surface deterioration

• Swelling

• Cracking

• Adhesion

• Electrical performance

The chemicals and exposure duration should be selected based on the actual operating environment.

12. Temperature and Humidity Testing

Temperature and humidity can affect plastics, adhesives, conductive inks, overlays, and other membrane switch materials.

Testing may expose the switch to specified temperature and humidity conditions for a defined period.

After exposure, the manufacturer checks whether the switch still meets the required specifications.

This type of testing is particularly useful for products intended for outdoor, transportation, industrial, and other demanding applications.

13. How a Professional Membrane Switch Manufacturer Controls Quality

A reliable membrane switches manufacturer should not rely on final inspection alone.

Quality should be controlled throughout the manufacturing process.

A typical quality-control workflow includes:

Design Review → Material Inspection → Printing Inspection → Circuit Testing → Assembly Inspection → Functional Testing → Environmental Validation → Final Inspection → Packaging

This approach helps identify defects earlier and reduces the risk of delivering nonconforming products.

Quality Control at Different Production Stages

14. What Customers Should Ask Before Ordering Membrane Switches

When selecting a supplier, buyers should ask more than just the unit price.

Important questions include:

• What electrical tests are performed?

• How is mechanical durability verified?

• Can the manufacturer provide test reports?

• What environmental tests are available?

• How are dimensional tolerances controlled?

• Can the manufacturer support custom materials?

• How are backlit versions tested?

• What inspection standards are used?

• Can prototypes be tested before mass production?

These questions help buyers distinguish between a simple printing supplier and an experienced membrane switches manufacturer with stronger engineering and quality-control capabilities.

15. Testing Requirements for Custom Membrane Switches

Every application does not require the same testing program.

A standard control panel may require basic electrical, mechanical, dimensional, and appearance testing.

A highly customized industrial interface may require additional validation.

The best testing plan is therefore based on the application's operating environment, expected service life, regulatory requirements, and customer specifications.

16. Common Membrane Switch Defects Found During Testing

Testing is not only about approving products. It also helps manufacturers identify recurring production problems.

Common defects include:

• Open circuits

• Short circuits

• Incorrect resistance

• Poor key response

• Excessive actuation force

• Graphic misalignment

• Adhesive failure

• Layer delamination

• Surface scratches

• Uneven backlighting

• Dimensional deviations

• Contamination

When these defects are detected early, corrective actions can be implemented before large production quantities are affected.

17. From Prototype Testing to Mass Production

Testing should begin during the prototype stage rather than only after mass production starts.

A practical development process can include:

Prototype → Initial Functional Test → Design Optimization → Reliability Testing → Pre-Production Validation → Mass Production → Batch Inspection

Prototype testing allows engineers to identify problems with:

• Key layout

• Actuation force

• Circuit design

• Material selection

• Adhesive construction

• Backlighting

• Connector design

• Overall dimensions

This can reduce costly tooling changes and production problems later.
membrane switches

How to Choose a Reliable Membrane Switch Supplier

The quality of the final product depends heavily on the manufacturer's engineering capability and quality-control system.

When evaluating suppliers, consider the following:

Engineering Capability

The manufacturer should understand circuit design, materials, adhesives, printing, tactile structures, and mechanical integration.

Testing Capability

The supplier should have appropriate equipment for electrical, mechanical, dimensional, and appearance inspection.

Customization Capability

A capable supplier should be able to develop custom membrane switches based on your equipment requirements rather than simply offering standard products.

Production Experience

Experience with different applications helps the manufacturer identify potential design and reliability issues before production.

Quality Documentation

For demanding applications, test records, inspection reports, material documentation, and production traceability can be valuable.

Conclusion

Testing is a critical part of producing reliable membrane switches.

From electrical continuity and actuation force to mechanical life, environmental resistance, adhesion, dimensional accuracy, and visual quality, each test addresses a different potential failure point.

For backlit membrane switches, additional optical testing is required to ensure consistent illumination. For custom membrane switches, testing should be adapted to the product's specific operating environment and performance requirements.

Choosing an experienced membrane switches manufacturer with engineering, production, and quality-testing capabilities can help reduce failures, improve product reliability, and create a more consistent user interface.

Looking for Custom Membrane Switches?

LuphiTouch provides customized membrane switch solutions for industrial controls, medical equipment, consumer electronics, automotive applications, and other electronic devices.

Explore custom membrane switch solutions:https://www.luphitouch.com/membrane-swithes.html

Frequently Asked Questions About Membrane Switch Testing

Q1. What tests are performed on membrane switches?

A: Common tests include electrical continuity, contact resistance, actuation force, mechanical life, dimensional accuracy, appearance, adhesion, environmental resistance, and functional testing.

Q2. How long do membrane switches typically last?

A: Service life depends on the design, materials, actuation mechanism, operating environment, and application. Mechanical life should be specified and validated according to the intended usage rather than assuming one universal lifespan.

Q3. Are membrane switches waterproof?

A: Some membrane switches can be designed with sealed structures for improved moisture and water resistance. However, the actual protection level depends on the complete design and must be validated through appropriate testing.

Q4. How are backlit membrane switches tested?

A: Backlit membrane switches are tested for LED operation, brightness, light distribution, uniformity, light leakage, color consistency, and overall electrical and mechanical performance.

Q5. Why is actuation force important?

A: Actuation force affects both user comfort and accidental activation. Testing ensures that the force required to activate the switch matches the intended application.

Q6. Can custom membrane switches be tested before mass production?

A: Yes. Prototype and pre-production testing can be used to evaluate electrical performance, tactile response, dimensions, backlighting, materials, and reliability before full-scale production.

Q7. What should I ask a membrane switches manufacturer?

A: Ask about electrical testing, mechanical life testing, environmental validation, dimensional inspection, quality standards, test reports, customization capabilities, and production quality control.

Q8. Do all membrane switches require the same tests?

A: No. Testing requirements depend on the application, operating environment, expected service life, materials, design, and customer specifications.

Q9. How can testing improve membrane switch quality?

A: Testing identifies electrical, mechanical, material, and manufacturing defects before products reach customers. It also helps manufacturers optimize designs and improve production consistency.
