A human-machine interface (HMI) is more than a collection of buttons, graphics, and indicators. It is the point where people communicate with equipment. Whether the application is an industrial controller, medical instrument, testing device, security system, or commercial appliance, the quality of the HMI directly influences how easily and confidently users can operate the product.
This is where membrane switches can provide significant design advantages.
Instead of treating the control panel as a separate cosmetic component, designers can integrate switching functions, graphics, tactile feedback, illumination, display windows, and environmental protection into a compact interface. This approach allows the HMI to become a functional part of the overall product design rather than simply an external panel.
A membrane switch is a thin, customizable switching interface that allows users to send commands to electronic equipment through defined touch points.
Its value in HMI design comes from the ability to combine several functions within one engineered assembly. The visible overlay can communicate operating instructions, while the internal circuit provides the electrical switching function. Tactile elements can add physical feedback, and optional backlighting can improve visibility.
For equipment designers, this creates an opportunity to develop an HMI around the actual user workflow.
Instead of asking only, "Where should the buttons go?", designers can consider a broader set of questions:
Which controls are used most frequently?
Should users receive tactile confirmation?
Will operators wear gloves?
Does the equipment operate in low-light conditions?
Will the panel be exposed to dust, moisture, or cleaning chemicals?
Does the interface need to accommodate a display?
How much installation space is available?
Answering these questions early helps determine the appropriate membrane switch construction.
Good HMI design reduces the amount of thinking required to operate a machine.
A membrane switch allows designers to place text, symbols, icons, color zones, and functional boundaries directly on the interface. This visual information can guide users toward the correct control without requiring a separate instruction label.
For example, an industrial controller may divide its interface into:
Start and stop controls
Parameter adjustment keys
Navigation buttons
Alarm functions
Mode selection
Status indicators
The result is a control surface that communicates the operating logic visually.
The graphic overlay can also be customized according to the target market. Different languages, symbols, numbering systems, and operating instructions can be incorporated without redesigning the underlying electronic system.
This flexibility is particularly useful for OEM products sold in multiple countries.
Not every HMI requires the same type of user feedback.
A membrane switch can be designed with tactile or non-tactile operation depending on the application. Tactile configurations can provide a noticeable physical response when the user presses a key, helping confirm that an input has been registered.
This can be valuable when:
The operator cannot continuously look at the panel.
The machine operates in a noisy environment.
The interface contains frequently used controls.
Users wear gloves.
Incorrect operation could interrupt a process.
Tactile feedback should be matched to the actual operating environment. Excessive actuation force may create fatigue during frequent use, while insufficient feedback may make an operator uncertain whether a command was activated.
Therefore, actuation force, key travel, overlay thickness, embossing, and tactile component selection should be considered together.
Space is often limited inside modern equipment.
Traditional mechanical buttons may require individual components, mounting holes, bezels, and additional structural support. A membrane switch can consolidate multiple controls into a thin interface assembly.
This makes it particularly attractive for:
Portable instruments
Laboratory equipment
Medical electronics
Industrial controllers
Test equipment
Commercial appliances
Compact electronic devices
A thinner interface can also give product designers greater freedom when developing the enclosure.
Instead of allowing the switch mechanism to dictate the entire front-panel architecture, the HMI can be designed around the available space and required user workflow.
The graphic overlay is one of the most important elements of a membrane-switch HMI.
It provides the visual language of the product.
A well-designed overlay can distinguish different functions through:
Icons
Text
Line borders
Numbering
Color areas
Embossed keys
Transparent display windows
Backlit symbols
For example, a machine may use a visually distinct area for emergency-related controls while grouping adjustment keys in another section.
The objective is not simply to make the panel attractive. The graphic hierarchy should help users recognize functions quickly and operate the equipment consistently.
This is particularly important when the HMI is used repeatedly throughout a working day.
Some equipment must be operated in environments where ambient lighting changes considerably.
Backlit membrane switches can provide illuminated symbols, indicators, or control areas without requiring large external lighting components.
Backlighting can be designed for applications such as:
Industrial equipment
Automotive controls
Transportation systems
Laboratory instruments
Security equipment
Portable devices
The design should consider more than LED brightness. Light distribution, graphic transparency, diffuser effects, spacing, and viewing conditions can all influence the final appearance.
A good HMI should remain readable when the illumination is off as well as when it is activated.
The front surface of an HMI is exposed to the surrounding environment every day.
Dust, moisture, cleaning agents, oils, and repeated handling can gradually affect conventional control interfaces. A properly engineered membrane switch can provide a continuous front surface with fewer exposed mechanical openings.
This can simplify cleaning and help protect the internal switching structure.
For demanding applications, designers should define environmental requirements at the beginning of the project rather than attempting to add protection after the switch has already been designed.
Important considerations may include:
Moisture exposure
Dust exposure
Cleaning procedures
Chemical contact
Temperature range
UV exposure
Mechanical wear
Required sealing level
The exact construction should always be selected according to the actual operating environment.
Modern equipment often combines physical controls with digital information.
A membrane switch does not have to replace a display or touchscreen. Instead, it can work alongside them.

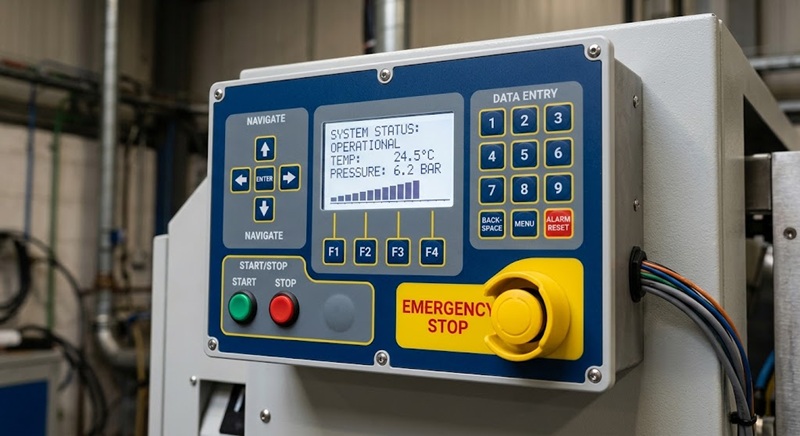

For example, a control panel may include:
A membrane keypad for frequently used commands
A transparent window for an LCD or OLED display
LED indicators for machine status
Dedicated function keys
Navigation controls
This hybrid approach can make the interface easier to operate.
A display can provide detailed information while physical keys provide predictable controls for functions that operators use repeatedly.
For OEM equipment, the HMI is part of the product's identity.
A custom membrane switch can maintain consistent:
Button locations
Graphic layouts
Colors
Logos
Icons
Surface finishes
Control labels
Backlighting effects
This consistency becomes particularly useful when the same equipment platform is offered in multiple configurations.
For example, a manufacturer may use the same basic HMI architecture while changing certain buttons, legends, or functions for different machine models.
The result is a scalable interface strategy rather than a completely new panel for every product.
One common mistake is designing the artwork first and considering usability later.
A better approach is to start with the operator.
Consider a machine operator who needs to complete the following sequence:
Power → Select Mode → Set Parameter → Start → Monitor → Stop
The HMI should visually and physically support this sequence.
Frequently used controls should be easy to locate. Related functions should be grouped together. Critical commands should be distinguishable from routine adjustments.
The membrane switch should therefore be considered part of the HMI architecture from the beginning of the product-development process.
Designers should evaluate the complete interaction between:
User → Graphic Overlay → Key Mechanism → Circuit → Controller → Machine Response
When these elements are coordinated, the HMI becomes easier to understand and more predictable to operate.
There is no single membrane switch construction that works for every HMI.
The appropriate configuration depends on the application requirements.
Tactile designs provide physical feedback during operation and can be useful for frequently used controls.
Non-tactile designs can provide a flatter interface and may be suitable where visual indicators or electronic feedback already confirm the user's input.
These are useful where symbols or controls need to remain visible under changing lighting conditions.
These can be considered for equipment exposed to moisture, dust, cleaning processes, or other environmental challenges.
For applications requiring integration with electronic control boards, PCB-based constructions can provide a practical interface between the membrane panel and the device electronics.
The right choice should be based on the complete HMI requirement rather than selecting a switch type in isolation.
Early communication between the product engineering team and the supplier can prevent expensive redesigns.
When evaluating membrane switch manufacturers, provide as much application information as possible.
Important specifications may include:
Overall panel dimensions
Key locations
Graphic artwork
Circuit requirements
Connector or tail configuration
Tactile requirements
Actuation force
Backlighting requirements
Display windows
Embossing requirements
Adhesive requirements
Environmental conditions
Expected operating frequency
Cleaning requirements
Mounting method
A supplier that understands both the electrical and mechanical requirements can help identify potential design conflicts before mass production.
The main benefits can be summarized as follows:
HMI Requirement | Membrane Switch Contribution |
|---|---|
Easy operation | Clear graphics and organized controls |
Operator feedback | Tactile or electronic feedback options |
Compact construction | Thin, integrated interface structure |
Visibility | Backlighting and custom graphic design |
Environmental protection | Sealed front-panel construction |
Product customization | Custom graphics, layouts, shapes, and functions |
Brand consistency | Logos, colors, icons, and surface finishes |
OEM flexibility | Application-specific electrical and mechanical configurations |
Integration | Compatibility with displays, LEDs, PCBs, and controllers |
The important point is that these advantages are not independent. A successful HMI results from coordinating visual design, mechanical construction, electrical performance, and the user's actual operating environment.
Before releasing a membrane switch for mass production, designers should review several areas.
Define who will operate the equipment and how frequently the controls will be used.
Identify exposure to water, dust, chemicals, temperature changes, sunlight, vibration, and cleaning processes.
Determine whether tactile feedback is required and define an appropriate actuation force and travel.
Confirm icons, text, colors, viewing windows, embossing, and surface finish.
Define circuit configuration, pinout, connector, LED requirements, shielding, and connection method.
Check panel dimensions, mounting position, adhesive areas, tail routing, enclosure tolerances, and available installation space.
Test the complete HMI assembly under conditions that represent actual use rather than evaluating the membrane switch only as an isolated component.
Membrane switches can significantly improve HMI design by bringing together physical controls, visual communication, tactile feedback, illumination, and environmental considerations in one compact interface.
Their greatest value is not simply that they are thin or customizable. The real advantage is the ability to design the interface around the user's interaction with the machine.
When the graphic overlay, switching mechanism, circuit, backlighting, enclosure, and control system are considered together, designers can create HMIs that are easier to understand, more comfortable to operate, and better suited to the product's working environment.
For OEM equipment manufacturers, this integrated approach can also support consistent product design and application-specific customization.
Looking for a custom membrane switch solution for your next HMI project?
Explore LuphiTouch's membrane switch solutions and discuss your application requirements with the engineering team:
Learn More About Membrane Switches
Q1. What is the role of a membrane switch in HMI design?
A: A membrane switch provides the physical input layer between the operator and the electronic control system. It can combine switching functions, graphics, tactile feedback, and optional illumination within one interface.
Q2. Are membrane switches suitable for industrial HMIs?
A: Yes. Custom membrane switches can be designed for industrial control panels with tactile feedback, custom graphics, backlighting, and environmental protection according to the application requirements.
Q3. Can membrane switches include backlighting?
A: Yes. Backlighting can be integrated to illuminate selected keys, symbols, indicators, or functional areas for improved visibility in low-light conditions.
Q4. Can a membrane switch include a display window?
A: Yes. A transparent or specially designed window can be incorporated into the overlay to accommodate an LCD, OLED, or other display.
Q5. What is the difference between tactile and non-tactile membrane switches?
A: Tactile membrane switches provide a physical response when pressed, while non-tactile versions generally rely on the interface's visual, audible, or electronic feedback to confirm activation.
Q6. How do I choose a membrane switch for my HMI?
A: Start with the user's workflow and operating environment. Then define dimensions, graphics, actuation force, circuit requirements, illumination, sealing requirements, mounting method, and expected operating conditions.
Q7. Can membrane switches be customized for OEM products?
A: Yes. Customization can include the panel shape, key layout, graphics, colors, embossing, tactile response, circuit configuration, backlighting, connectors, and other application-specific requirements.
