When specifying a silicone keyboard switch for your next product, you will encounter a range of technical parameters that can be overwhelming. As a professional, LuPhiTouch regularly helps customers interpret these numbers and translate them into real‑world performance. This article breaks down the most critical specifications – so you can confidently define what you need and avoid costly over‑specification or under‑performance.
The force‑travel curve is the single most important parameter for user experience. It plots applied force (in grams) against key travel (in millimetres). Three key points define the curve:
Peak Force (Snap‑over Point): The maximum force required to collapse the dome. Typical values range from 50 gf (light, for office typing) to 200 gf (heavy, for industrial gloves).
Tactile Drop Ratio: The percentage drop from peak force to the bottom‑out force. A higher drop (e.g., 30‑40%) gives a crisp, clicky feel; a lower drop (10‑20%) feels softer and more linear.
Bottom‑out Force: The force when the dome is fully compressed. This affects how "solid" the key feels at the end of travel.
At LuPhiTouch, we measure every production sample on a precision force tester (±1 gf accuracy) and provide the actual curve graph in our inspection reports. We can tailor the curve by adjusting dome geometry (height, angle, wall thickness) and silicone hardness (Shore A). Whether you need a sporty gaming key or a gentle medical switch, we deliver your exact target curve.
This parameter indicates how many actuations a switch can withstand before its force curve degrades beyond acceptable limits. For silicone keyboard switches, typical ratings are 1 million to 10 million cycles, depending on the design and material.
LuPhiTouch conducts lifecycle testing at 5 Hz actuation speed, measuring the force curve at intervals. We guarantee that the peak force drop remains within 10% of the initial value after the rated cycles. Our proprietary compound formulations and precision molding ensure that our switches consistently exceed industry standards – even at the high end of 10M cycles.
Silicone rubber excels in extreme temperatures. However, the specific range depends on the compound. Standard silicone handles ‑40°C to +125°C, while specialised grades can reach +230°C for short periods.
When you partner with a like LuPhiTouch, we select the appropriate silicone grade based on your application environment. For outdoor equipment in cold climates, we ensure low‑temperature flexibility; for under‑hood automotive use, we verify high‑temperature stability. We provide actual test data from our thermal chambers to validate your requirements.
Silicone is naturally an excellent insulator (volume resistivity >10¹⁴ Ω·cm). However, some applications require conductive domes for grounding or anti‑static purposes. In such cases, we add conductive fillers (e.g., carbon black) to achieve a specified volume resistivity – typically down to 10³ Ω·cm or lower.
LuPhiTouch offers both insulating and conductive grades. We also provide printed carbon pills on the dome contact point to ensure reliable electrical connection with the PCB or membrane circuit. Our testing includes contact resistance measurement (typically <100 Ω) to guarantee consistent switching.
Compression set measures how much a silicone dome permanently deforms after being compressed for a prolonged period. A low compression set (e.g., <5% at 25°C) means the dome will rebound to its original height even after years of static storage or repeated use.
At LuPhiTouch, we strictly control vulcanisation parameters and post‑curing processes to minimise compression set. We provide test results per ASTM D395, giving you confidence that your switches will not sag over time.
Depending on your industry, your silicone keyboard switch may be exposed to moisture, cleaning agents, UV light, or saline environments. Key parameters include:
Waterproof rating (IP code): We offer IP67 seals with integrated rims.
Chemical resistance: We test against common sterilants (IPA, hydrogen peroxide) and industrial fluids.
UV/ozone resistance: Our compounds are inherently resistant, but we can add stabilisers for extreme exposure.
LuPhiTouch maintains comprehensive environmental test facilities – salt spray chambers, UV weathering testers, and humidity ovens. We validate your switch's resistance under your specific operating conditions.
Precise dimensions are critical for automated assembly and consistent keyboard height. Our typical tolerances are:
Overall height: ±0.05 mm
Dome diameter: ±0.03 mm
Wall thickness: ±0.02 mm

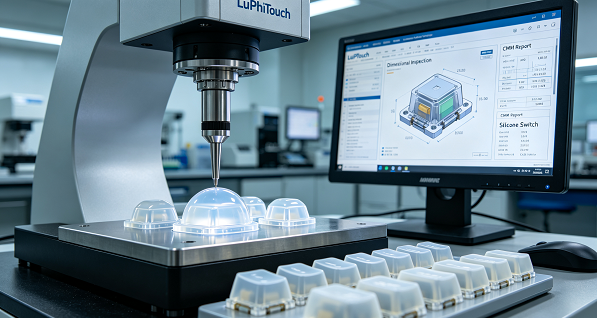

We achieve this through precision‑ground moulds and real‑time process control. Every batch is verified with CMM (coordinate measuring machine) reports.
Understanding these parameters is only half the battle – the other half is finding a manufacturer who can consistently deliver them. LuPhiTouch has decades of experience in silicone and membrane switch manufacturing. We offer:
In‑house material science – we formulate our own compounds.
Advanced tooling – CNC EDM with micron accuracy.
Full testing lab – force, life, environmental, and electrical tests.
Certifications – ISO 9001, ISO 13485, ROHS, REACH, FDA.
We do not just take orders; we collaborate with you to translate your application needs into precise specifications. Contact LuPhiTouch today to discuss your technical requirements. Let us help you select or custom‑design the perfect silicone keyboard switch for your project.
