Waterproof Membrane Switch Buying Guide: What Buyers Should Know

In industrial equipment, medical devices, appliances, control panels, and outdoor electronics, a membrane switch may face moisture, cleaning agents, dust, temperature changes, and frequent operation. A standard switch can struggle in these conditions, while a properly designed waterproof membrane switch can provide a more reliable user interface.

However, choosing the right product is not simply a matter of asking for a “waterproof” keypad. The sealing structure, materials, circuit technology, installation method, and operating environment all affect real-world performance.

What Is a Waterproof Membrane Switch?

A waterproof membrane switch is a low-profile human-machine interface designed with protective layers and sealing features that help prevent water or moisture from reaching sensitive internal circuits.

Unlike a conventional mechanical control panel, a membrane switch can combine:

• Graphic labels and operating instructions

• Tactile buttons

• Conductive circuits

• LEDs or other indicators

• Connectors and electronic components

• Adhesive and sealing structures

The result is a compact interface that can be customized to the equipment's shape, functions, and appearance.

Key point: Waterproof performance depends on the complete switch design—not just the top graphic layer.

Custom Membrane Switches to the product page

5 Factors to Consider Before Buying

1. Define the Required Water and Environmental Protection

Start by identifying where the switch will be used.

A control panel inside a dry machine room has very different requirements from one exposed to rain, condensation, cleaning procedures, or splashing liquids.

Consider:

• Occasional splashes or continuous moisture

• Indoor or outdoor installation

• Dust exposure

• Cleaning chemicals

• Temperature and humidity

• UV exposure

• Frequency of operation

If the switch will be exposed to significant moisture, discuss the required IP protection level and sealing structure with your supplier before finalizing the design.

2. Choose the Right Overlay Material

The graphic overlay is the first line of defense and also the part users interact with directly.

Common choices include polyester-based films and polycarbonate materials. Selection should consider flexibility, abrasion resistance, chemical resistance, printing quality, and the operating environment.

For outdoor equipment, UV resistance may also become important. For frequently cleaned equipment, the surface should be selected with the cleaning method and chemicals in mind.

3. Pay Attention to the Circuit Structure

The internal circuit determines how reliably the switch sends signals to the equipment.

The best option depends on the available installation space, circuit complexity, bending requirements, expected service life, and project budget.

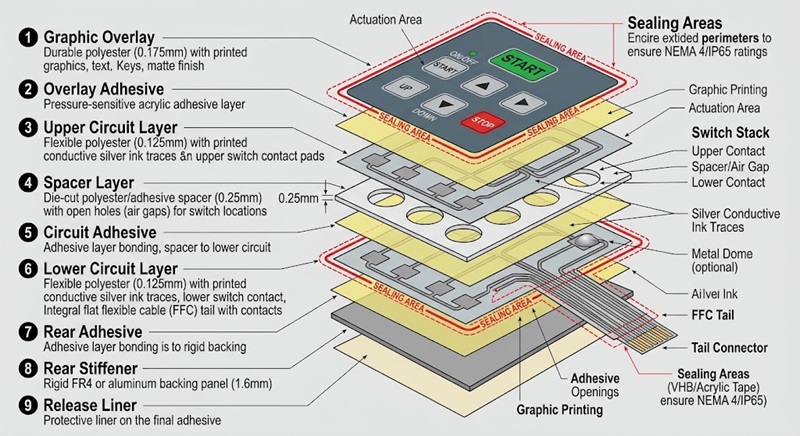

4. Check the Sealing and Construction

A waterproof switch should be designed as an integrated structure.

Potential weak points include:

• Edges of the overlay

• Button openings

• Connector areas

• Cable exits

• Adhesive interfaces

• Mounting points

A supplier should understand how the switch will be installed into the final enclosure. Even a well-designed membrane switch can lose its protective performance if the surrounding installation is poorly sealed.

Buying tip: Provide the supplier with enclosure drawings, mounting dimensions, and environmental requirements as early as possible.

5. Consider Tactile Feedback and User Experience

Water resistance is important, but usability matters too.

Users should be able to recognize when a button has been successfully activated. Depending on the application, a membrane switch can incorporate metal domes or other tactile structures to provide physical feedback.

You can also consider:

• Different button shapes

• Embossed keys

• Backlighting

• LED indicators

• Transparent windows

• Custom symbols and colors

• Different connector configurations

A good design balances environmental protection with comfortable operation.

Waterproof Membrane Switch vs. Standard Membrane Switch

The important distinction is that waterproof performance should be treated as a system-level design requirement, rather than a marketing label.

Questions to Ask Your Membrane Switch Supplier

Before placing an order, ask the manufacturer:

1. What environmental conditions can the switch be designed for?

2. What sealing or IP requirements can be supported?

3. Which overlay material is recommended for my application?

4. Should I use PET, PCB, or FPC circuitry?

5. How are connectors and cable exits protected?

6. What tactile options are available?

7. Can the switch include LEDs or other components?

8. What reliability and functional tests are performed?

9. Can prototypes be produced before mass production?

10. Can the manufacturer support customization from design through production?

These questions can help prevent costly redesigns after tooling or production has started.

Why Custom Design Often Makes Sense

Off-the-shelf keypads may appear convenient, but they can create compromises in button layout, dimensions, connector position, sealing, graphics, and installation.

A custom membrane switch allows the interface to be developed around the actual product.

For example, a manufacturer may help integrate the graphic overlay, tactile elements, circuit, LEDs, connectors, and mounting structure into one customized assembly.

Membrane Switch Manufacturer to the product page

This approach can be especially useful for industrial controls, medical equipment, appliances, instrumentation, communication equipment, and other products where reliability and user interface design are equally important.

Final Buying Checklist

Before approving your waterproof membrane switch design, confirm:

• Application environment is clearly defined

• Required moisture protection is specified

• Overlay material matches the environment

• Circuit type fits the electrical design

• Connector and cable areas are properly considered

• Tactile feedback meets user requirements

• Graphics and symbols are easy to read

• Mounting dimensions match the enclosure

• Prototype testing is completed

• Reliability requirements are agreed with the supplier

Looking for a Custom Waterproof Membrane Switch?

Choosing the right supplier early can simplify both engineering and production. If your project requires a customized membrane switch with specific environmental, electrical, mechanical, or graphic requirements, discuss the application with an experienced manufacturer before finalizing the design.

CTA:Explore Custom Membrane Switch Solutions

Frequently Asked Questions

Q1. Are all membrane switches waterproof?

A: No. Water resistance depends on the materials, construction, sealing, connector design, and installation environment. A membrane switch should be specified according to its actual application requirements.

Q2. What is the most important factor when buying a waterproof membrane switch?

A: Start with the operating environment. Moisture exposure, cleaning methods, temperature, dust, UV exposure, and installation conditions determine the appropriate materials and construction.

Q3. Which material is better for a waterproof membrane switch?

A: There is no universal best material. Polyester and polycarbonate overlays can both be suitable, depending on requirements such as durability, flexibility, chemical resistance, appearance, and outdoor exposure.

Q4. Can a waterproof membrane switch be customized?

A: Yes. Customization can include dimensions, button layout, graphics, colors, tactile feedback, LEDs, circuits, connectors, and mounting structures.

Q5. Should I choose PET, PCB, or FPC circuitry?

A: PET is often suitable for economical flexible interfaces, PCB can be advantageous for rigid and complex designs, while FPC is useful where flexibility and compact integration are important. The final choice should match the device architecture.

Q6. How can I improve the reliability of a waterproof membrane switch?

A: Clearly define the environmental requirements, optimize sealing and connector areas, select appropriate materials, validate the design with prototypes, and perform functional and reliability testing before mass production.
