Is your refrigerator acting strangely? Maybe it's not cooling properly, the lights are flickering, or it's making unusual noises. It can be frustrating when such an essential appliance malfunctions. You might be wondering what's wrong and how to fix it. A common culprit behind these issues is a faulty refrigerator control board, which is essentially the brain of your appliance, managing various functions like cooling cycles, defrosting, and lighting. Diagnosing a bad control board involves observing specific symptoms and sometimes performing basic checks.
It reminds me of a time when my own refrigerator suddenly stopped cooling. I was worried about all the food inside going to waste! After some investigation, it turned out to be a problem with the control board. Let's delve deeper into how you can identify if your refrigerator's control board is the issue.
What are the Common Symptoms of a Bad Refrigerator Control Board?
What Basic Tests Can You Perform to Check a Refrigerator Control Board?
Is your fridge behaving erratically? Perhaps it's not cooling consistently, or maybe it's stopped cooling altogether. These kinds of problems can be a real headache, especially when you rely on your refrigerator daily. Recognizing the signs of a failing control board early can save you time and prevent further food spoilage.
Several telltale signs can indicate a problem with your refrigerator's control board. These include inconsistent cooling, where the temperature fluctuates or the fridge doesn't get cold enough; the refrigerator not cooling at all; the defrost cycle malfunctioning, leading to excessive frost buildup; unusual noises or error codes displayed on the control panel; or intermittent issues with lights or other functions.
Sometimes, the refrigerator might cool fine for a while and then suddenly stop, only to start working again later. This on-and-off behavior often points to a failing component on the control board. A common cause is a failing relay controlling the compressor or a weakened capacitor struggling with stable power. This leads to frustrating temperature fluctuations, potentially spoiling perishables. Cheaper boards with less robust components can be more susceptible to thermal stress and electrical fluctuations. When troubleshooting, consider if the problem occurs more frequently during peak usage times or specific environmental conditions, as this can hint at component stress.
If your refrigerator has completely stopped cooling, the control board might not be sending power to the compressor, which is responsible for cooling the refrigerant. This is a serious issue requiring prompt attention. The control board acts as the central command, directing power to the compressor based on temperature sensor readings. A failure in the board's relay or triac that switches power will result in no cooling. If your fridge is completely warm and you hear no compressor activity, it's a strong indicator. Diagnosing this often involves checking for voltage at the compressor terminals when the board should be sending power. A lack of power there, despite a physically sound compressor, points directly to the control board.
The control board manages the defrost cycle, which melts frost buildup. If this cycle malfunctions, you might notice excessive frost, leading to reduced freezer space and inefficient cooling. The design relies on the control board to periodically activate a heating element and a defrost thermostat. If the board fails to initiate or properly manage this cycle, frost accumulates. For example, if your freezer coils are completely iced over, preventing cold air circulation, the defrost cycle isn't working. Conversely, if the defrost heater stays on too long, it could lead to warmer freezer temperatures. You might observe thick ice layers on the back panel of the freezer.

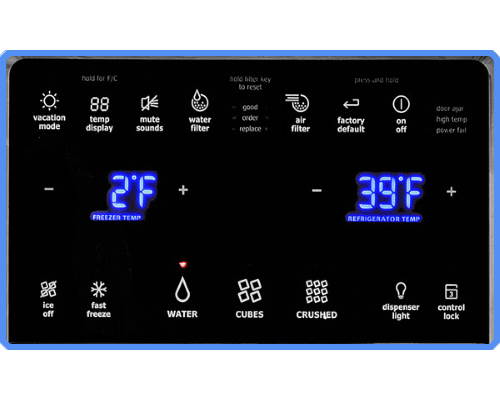

Some refrigerators display error codes on their control panels when a fault is detected. Unusual clicking sounds from the control board area can also indicate a problem with relays or other components. The control board monitors sensor data and triggers alerts when readings fall outside acceptable ranges. Error codes are programmed into the board's firmware to help diagnose issues. For instance, a persistent "HI" temperature alarm or a specific numerical code (e.g., "E0," "F3") that doesn't clear after a reset often points to an internal board logic issue. Similarly, continuous, rapid clicking from the back of the fridge but no compressor start suggests a failed relay attempting to engage. Noting these codes and any unusual sounds can provide valuable clues about a potential control board failure.
While not always definitive, a visual inspection of the refrigerator's control board can sometimes reveal obvious signs of damage. This is a crucial first step before considering more complex testing. Remember to always disconnect the refrigerator from the power source before attempting any inspection.
To visually inspect a refrigerator control board, first locate it, usually behind a panel at the top or back of the refrigerator. Look for any signs of physical damage such as burnt components (discolored or bulging capacitors, resistors), cracked solder joints, or corrosion. A burning smell emanating from the area can also indicate a problem with the control board.
Burnt components are often the most obvious signs of a faulty control board. These can include bulging or leaking capacitors, discolored or cracked resistors, or integrated circuits with visible burn marks. This physical degradation occurs due to electrical overload or failure. Capacitors fail when internal pressure builds up, causing them to bulge or leak. Resistors overheat and burn when excessive current flows through them. Any dark, charred areas or physically distorted components should raise immediate suspicion. Such findings strongly indicate significant electrical stress and that the control board likely needs replacement.
Solder joints provide electrical connections. Over time, thermal stress or vibration can cause these joints to crack, leading to intermittent or complete loss of connection. Thermal expansion and contraction stress solder joints. Design choices regarding solder type and component mounting affect joint integrity. A hairline crack around a pin or lead can cause sporadic connectivity; for example, if a relay intermittently engages, a cold or cracked solder joint could be the cause. Using a magnifying glass can help spot these subtle but critical flaws that disrupt electrical pathways.
Moisture or spills can lead to corrosion on the control board, damaging components and interrupting electrical pathways. Look for any greenish or whitish deposits on the board or component leads. Corrosion is an electrochemical reaction between metal and its environment, accelerated by moisture and contaminants, degrading the metal and leading to electrical discontinuity. Even minor condensation can lead to corrosion on exposed metallic traces or pins. If you observe greenish fuzz on wire terminals or white powdery residue on leads, it suggests moisture damage. Identifying corrosion indicates the board's reliability is compromised and it may not be repairable.
While some tests require specialized equipment, there are a few basic checks you can perform to help diagnose a faulty control board. These usually involve observing the board's behavior when the refrigerator is powered on (with caution) or checking for continuity in certain components (with the power off).
Basic tests for a refrigerator control board might include listening for clicking sounds from relays when the refrigerator cycles on or off, observing indicator lights on the board (if present) for normal operation, and, if you have experience with electronics, using a multimeter to check for continuity or voltage at specific test points (always with extreme caution and after consulting the refrigerator's service manual).
Relays are electromechanical switches on the control board that power components like the compressor and fans. They typically make a faint clicking sound when they activate or deactivate. An absence of these clicks when the refrigerator should be cycling can indicate a problem with the relay or its control circuit on the board. This mechanical movement within the relay occurs when its coil is energized. If the compressor isn't running and you don't hear the expected click from its associated relay when the thermostat calls for cooling, it strongly suggests the relay isn't activating, pointing to a board fault. Carefully listening during refrigerator cycles can provide crucial clues.
Some control boards have LED indicator lights that flash or stay on to show status or functions. Observing these lights can aid diagnosis. Consult your refrigerator's service manual to understand their meaning. The microcontroller on the board activates these LEDs based on circuit and sensor status. For instance, an LED might flash a specific code for a sensor error or stay steady for normal operation. A missing or continuously flashing light when it should be solid, or vice-versa, can point to a specific internal board malfunction. Comparing observed light behavior to the manual's description is a practical diagnostic step.
If you have electronics experience and understand safety, a multimeter can check for continuity (power off) or voltage (extreme caution, consult manual) at test points. This helps determine power delivery or open circuits. This step should only be performed by individuals knowledgeable in electronics testing due to electric shock risk. Understanding basic electrical circuits and how to measure voltage, current, and resistance is key. You could test the control board's fuse for continuity or check voltage outputs to the compressor or fan, as per the wiring diagram. These measurements pinpoint component failures or circuit breaks. Again, safety is paramount.
While a faulty control board is a common cause of refrigerator problems, other components can also lead to similar symptoms. It's important to consider these alternatives before concluding that the control board is definitely the issue.
You should suspect other components if you notice symptoms more directly related to mechanical parts (like a noisy compressor or fan motor), if specific components fail to operate despite the control board appearing to send power (requiring further testing of those individual components), or if the issue seems isolated to a particular function not directly managed by the main control board (though this is less common in modern refrigerators).
The compressor is the heart of the cooling system. If it's failing, it might not cool properly, make excessive noise, or fail to run. The theoretical basis involves the compressor's mechanical and thermodynamic processes. Failure can be due to wear, refrigerant leaks, or electrical issues within its motor. A loud grinding or clunking noise from the compressor area, or if it hums but doesn't start, often indicates a compressor issue, not the board. If the control board sends power to the compressor (verifiable with a multimeter), but it still doesn't operate correctly, the compressor itself is likely the culprit.
The evaporator fan circulates cold air inside, while the condenser fan dissipates heat from the coils. If either motor fails, cooling performance is affected. The theoretical basis is electric motors and their airflow generation. Failures can be due to bearing wear, shorts, or obstructions. If you open the freezer door and the internal fan isn't spinning, or if the back of the fridge is very hot and the condenser fan isn't running, these indicate a fan motor failure. You might hear a squealing or buzzing before complete failure. If the control board provides power to the fan, but it doesn't turn, the fan motor needs attention.
While the control board manages the defrost cycle, actual defrosting involves a heater, a defrost thermostat (or thermistor), and sometimes a separate timer. Failure of any of these can lead to frost buildup. The theoretical basis involves the electrical resistance heating of the defrost element and the temperature-sensitive switching of the thermostat. Failures can be due to heater burnout or thermostat malfunction. If the defrost heater isn't warming up when it should (safely testable for warmth), or if the defrost thermostat isn't opening/closing correctly at specific temperatures, these point to issues with those individual components rather than the control board's command.
Identifying a bad refrigerator control board involves carefully observing your refrigerator's symptoms, performing a visual inspection of the board, and, if you are comfortable and knowledgeable, conducting basic electrical tests. While many issues can stem from a faulty control board, it's also important to consider other components like the compressor, fan motors, and defrost system. A thorough diagnostic process will help you pinpoint the root cause of the problem and determine the best course of action, whether it's repairing or replacing the control board or another component.
