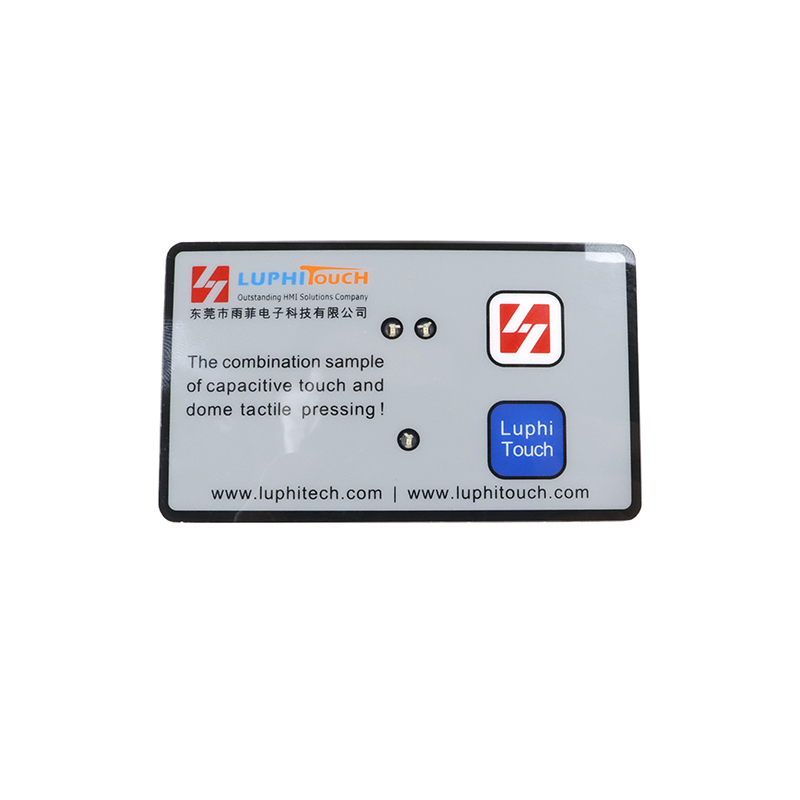

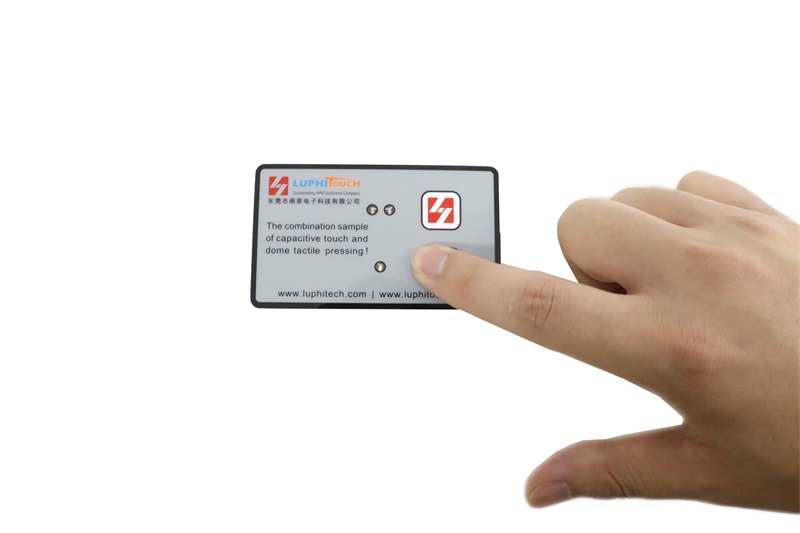

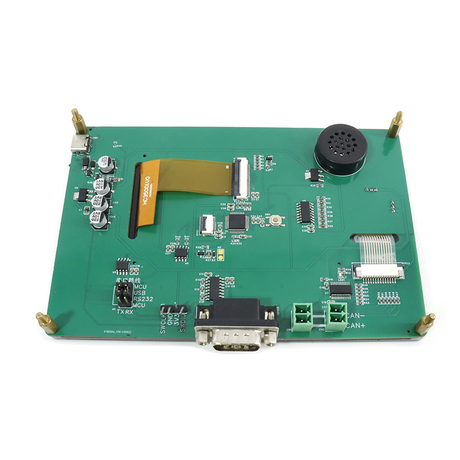

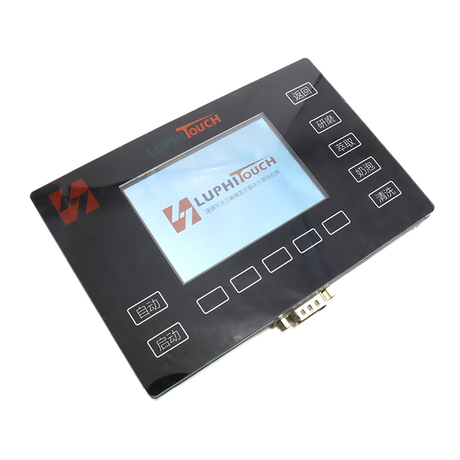

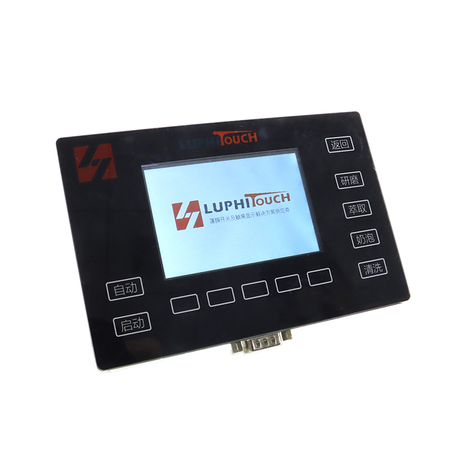

Are there the integrated design of touch buttons and pan switch have any Other Technical Difficulties in This Design?

Although the integrated design of touch buttons and pan switch is feasible, it still needs to overcome multiple technical challenges in practical development, involving hardware, software, environmental adaptability, and user experience in multiple aspects. The following is a specific analysis:

I. Challenges in Hardware Design

1、Electromagnetic Compatibility (EMC) Issues

Interference Source: The metal spring of the push button switch may generate electromagnetic noise (such as electric sparks or high-frequency oscillations) when pressed, which interferes with the capacitive detection circuit of the touch sensor.

Impact: Causes touch buttons to misfire (such as automatic response without operation) or sensitivity decrease (needs multiple touches to take effect).

Solution:

Shielding Design: Add a metal shielding layer or grounded copper foil around the pot switch to isolate electromagnetic noise.

Filter Circuit: Add an RC filter or ferrite bead on the signal line of the touch sensor to suppress high-frequency interference.

PCB Layout Optimization: Separate the layout of the touch sensor and pot switch circuits to avoid parallel routing of signal lines.

2、Spatial Layout Conflict

Thickness limitation: Touch buttons need to cover a protective layer (such as glass or plastic), while pot switch buttons require space for pressing travel, which may result in excessive module thickness.

Structural interference: If the two are overlapped, the pressure on the pot plate may compress the touch sensor when pressed, affecting its performance.

Solution:

Stereoscopic Design: Arrange the touch sensor on the surface of the module, and hide the button switch on the side or bottom (e.g., through side buttons or groove design).

Multi-layer PCB: Use a multi-layer PCB to arrange the touch sensor circuit and button switch circuit in layers, reducing the space occupied on the plane. Miniaturized Components: Choose ultra-thin button switches (such as thickness below 0.3mm) and flexible touch sensors (such as FPC base material) to reduce spatial requirements.

3、Mechanical Life Difference

Lifespan mismatch: The mechanical lifespan of a button switch is typically 100,000 to 1,000,000 operations, whereas touch sensors have no mechanical wear and can last up to billions of operations. If both are used for the same function (such as a power switch), the button may fail first.

Solution:

Functional Division: Use the button for low-frequency critical operations (such as emergency stop) and touch for high-frequency operations (like volume adjustment).

Redundant Design: Integrate both touch and buttons on key functions, automatically switching to the other when one fails. High-Lifespan Buttons: Choose metal dome arrays or dual-contact designs to extend lifespan to over 5 million times.

II. Challenges in Software Algorithms

1、 Conflict Avoidance and Misoperation Prevention

Scene: The user touches the button and presses the pan plate at the same time, or mistakenly considers pressing the pan plate as a touch operation.

Solution:

Time window differentiation: Set a minimum time interval between touch and press (e.g., touch must be sustained for more than 50 ms to take effect, while pressing must be completed within 10 ms). Pressure threshold differentiation: Detect the pressure of pressing through a pressure sensor (such as a strain gauge), with touch being light touch and the pot clip being heavy pressure.

Position locking: Define the operation areas for touch and pot clip in software to avoid signal overlap (e.g., the touch area is in the center of the screen, while the pot clip is on the border).

2、Environmental Adaptive Algorithm

Humidity Impact: In high humidity environments, touch sensors may experience changes in capacitance values due to water vapor, leading to false touches; miniature switches may suffer from poor contact due to metal oxidation.

Temperature effects: Touch sensor sensitivity decreases at low temperatures, and the elasticity of the bimetallic strip in the pot thermostat weakens at high temperatures.

Solution:

Adaptive Calibration: Adjust the baseline capacitance value of the touch sensor dynamically through software algorithms to compensate for environmental changes. Temperature Compensation: Incorporate a temperature sensor into the pot switch and adjust the pressure threshold according to temperature.

Waterproof Coating: Spray three-proof paint (moisture, mildew, and salt mist resistance) on the contact points of the pot switch to enhance reliability.

III. Challenges in Environmental Adaptability

1、Waterproof and dustproof design

hallenge: The touch area needs to be fully sealed (e.g., IP67 level), while the pot switch requires a pressing travel, which increases the difficulty of sealing.

Solution:

Dual-sealing structure: The touch area is covered with glass or plastic, and the button switches are sealed with a silicone sleeve or encapsulation glue, both designed independently and assembled. Ventilation membrane: A ventilation membrane (such as GORE-TEX) is added at the button switch to balance internal and external air pressure and prevent condensation of water vapor.

Glue dot process: The button switch contacts on the PCB are encapsulated with glue dots to form a flexible sealing layer.

2、Vibration and Shock Tolerance

Scene: In industrial equipment or vehicle-mounted scenarios, modules may be subjected to continuous vibration or impact, causing the spring of the pushbutton switch to loosen or the signal of the touch sensor to fluctuate.

Solution: Structural Reinforcement: Add supporting structures (such as metal brackets) around the PCB to limit its vibration amplitude. Software Filtering: Apply digital filtering (like a moving average algorithm) to the touch signals to suppress noise caused by vibrations. High Reliability Components: Choose vibration-resistant PCBs (like spring-loaded ones with locking mechanisms) and industrial-grade touch sensors.

IV. Challenges in User Experience

1、Haptic Feedback Consistency

Issue: Touch buttons lack physical feedback, while the buttons on the pan have clear feedback. Users may experience confusion due to the difference in feedback during operation.

Solution:

Haptic feedback simulation: Integrate a linear motor (such as LRA or ERM) into the touch button to simulate the pressing sensation through vibration. Audio feedback: Add key sounds (e.g., via a speaker or piezoelectric ceramic sheet) for touch operations to differentiate from the "click" sound of the bimetallic strip.

Visual feedback: Trigger interface animations (such as button highlighting or scaling) during touch operations to enhance the sense of operation confirmation.

3、 Complexity of Operational Logic

Question: If the touch and dial pad functions overlap (e.g., both used for volume adjustment), users may confuse the operation methods.

Solution:

Functional differentiation: Touch for fine-tuning adjustments (e.g., sliding to continuously adjust volume), and knob for quick switching (e.g., short press to skip previous/next track).

Guided design: Label the operation methods on the interface or buttons (e.g., "Slider to Adjust", "Press to Switch") to reduce learning costs.

Customizable settings: Allow users to customize the functions of touch and knob through software, adapting to different usage habits.

V. Costs and Production Challenges

1、Cost Control

Challenge: Integrating design requires simultaneous procurement of touch sensors, pushbutton switches, and related driver chips, potentially increasing BOM costs.

Solution:

Modular Design: Integrate the touch and piezo functions into a single module, reducing the number of connectors and enclosures.

Component Selection Optimization: Choose low-cost touch solutions (such as resistive alternatives to capacitive) or generic piezo components (like standard size pogo pins).

Mass Production: Lower component unit prices through bulk purchases and spread out R&D costs.

2、Production yield

Challenge: Integral design requires simultaneous maintenance of the touch sensor's fitting accuracy and the pressure travel of the pot switch, increasing production difficulty.

Solution:

Automated Assembly: Using SMT placement machines and robotic arms for high-precision assembly, reducing human errors.

Online Inspection: Adding functional testing steps (such as touch sensitivity testing, heating element lifespan testing) on the production line to promptly screen out defective products.

Process Optimization: Establishing standardized operation procedures (SOPs) for critical processes (like touch sensor lamination, heating element welding) to enhance consistency.

Summary and Recommendations

The design of integrated touch buttons and pan switches needs to overcome multiple challenges such as electromagnetic interference, spatial layout, mechanical lifespan, software algorithms, environmental adaptability, user experience, and cost control. It is recommended to start from the following directions:

1、Early simulation: Optimize hardware design through electromagnetic simulation (such as HFSS) and mechanical simulation (such as SolidWorks), and avoid interference and structural issues in advance.

2、Prototype Testing: After creating a prototype, conduct rigorous environmental tests (such as high and low temperatures, vibration, water resistance) and user tests. Iterate and optimize the design.

3、Supply Chain Collaboration: Deep cooperation with touch sensor and pan chip suppliers to develop customized high-compatibility components and reduce costs.

4、Standardized Design: Establish enterprise-level design standards, unify the interfaces, dimensions, and testing standards for touch panels and control panels, and enhance reusability.
