In modern electronic devices and industrial control systems, user interfaces must remain clear, reliable, and easy to operate under various environmental conditions. One technology that addresses these requirements effectively is the backlight film switch. As a professional backlight film switch manufacturer, companies today provide advanced illuminated membrane switch solutions that combine durability, functionality, and sleek design.
Backlight film switches are widely used in industries such as medical equipment, industrial machinery, automotive electronics, and consumer devices. Their ability to maintain clear visibility in low-light environments makes them an essential component in many modern control interfaces.

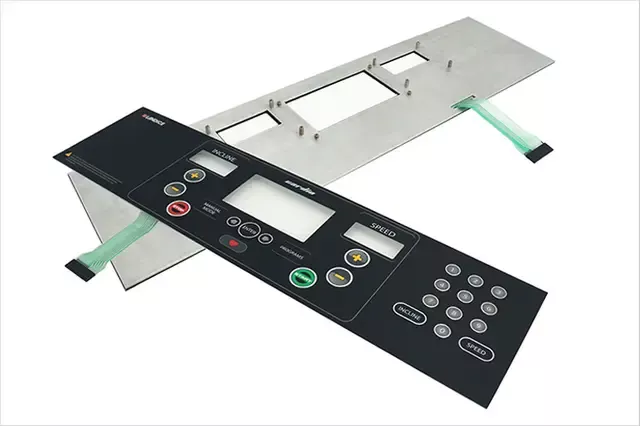

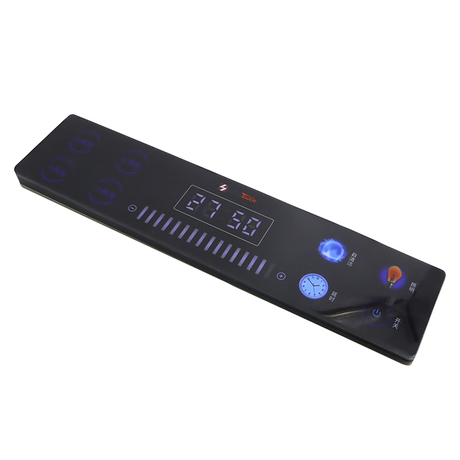

A backlight film switch, also known as a backlit membrane switch, is a type of membrane switch integrated with an internal lighting system. This lighting system illuminates symbols, icons, or buttons on the control panel, allowing users to easily operate the interface even in dim environments.
The structure of a typical backlight film switch includes several layers:
Graphic overlay layer
Adhesive spacer layer
Circuit layer (printed silver circuit or flexible circuit)
Backlighting layer (LED, fiber optic, or EL lighting)
Rear adhesive or mounting layer
This layered design creates a compact, sealed interface that offers excellent protection against dust, moisture, and contamination while maintaining responsive tactile feedback.
Backlight film switches provide numerous benefits compared with traditional mechanical switches or non-illuminated membrane switches.
The integrated lighting system ensures that control buttons and symbols remain visible even in low-light or nighttime environments. This improves operational accuracy and reduces user errors.
High-quality membrane switches can achieve 1 to 5 million actuations, making them suitable for demanding industrial applications that require frequent operation.
Backlit membrane switches are extremely thin, often only a few millimeters thick. This allows manufacturers to integrate them into compact electronic products without increasing device size.
The sealed structure provides protection against:
Dust
Moisture
Oil
Chemicals
This makes them particularly suitable for industrial equipment and medical devices.
Manufacturers can fully customize membrane switches to meet specific design and functional requirements, including button layout, lighting effects, graphic design, and tactile feedback.
Different lighting technologies can be integrated into membrane switches depending on product requirements.
LED lighting is the most widely used option due to its high brightness, long lifespan, and energy efficiency. LEDs can also support different colors and adjustable brightness levels.
Fiber optic systems distribute light evenly across the panel surface. They are ideal for applications that require uniform illumination.
EL lighting provides soft, even illumination across the entire panel. It is commonly used in applications where ultra-thin lighting solutions are required.
Each technology offers unique advantages, and experienced manufacturers can recommend the most suitable option based on the product’s application environment and design goals.
Backlight film switches are used across many industries where reliable illuminated interfaces are essential.

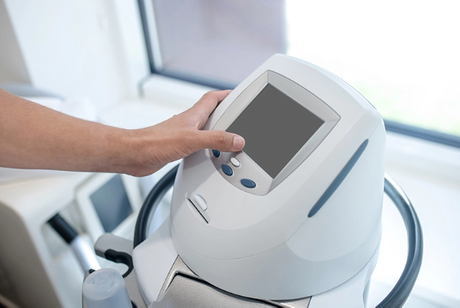

Medical devices often operate in controlled lighting environments where clear interface visibility is critical. Backlit membrane switches are used in:
Patient monitoring systems
Diagnostic equipment
Portable medical instruments
Industrial machinery frequently operates in low-light factories or outdoor environments. Illuminated switches help operators easily identify control buttons.
Typical applications include:
Machine control panels
Automation systems
CNC equipment
Industrial instrumentation
Many modern consumer products incorporate backlit control panels to improve user experience and product aesthetics.
Examples include:
Home appliances
Smart home devices
Kitchen equipment
Automotive dashboards and control systems require illuminated buttons for night driving conditions. Backlit membrane switches are commonly used in:
HVAC control panels
Dashboard interfaces
Infotainment systems
A professional backlight film switch manufacturer can provide comprehensive customization services to meet the unique requirements of different industries.
Common customization options include:
Manufacturers can design custom icons, colors, and surface finishes that match brand identity and product aesthetics.
Metal domes can be integrated into the switch structure to provide clear tactile feedback, improving the user experience.
Both printed silver circuits and flexible printed circuits (FPC) can be used depending on durability requirements and design complexity.
Additional design features can improve durability, such as:
Waterproof sealing
UV-resistant materials
EMI shielding layers
These options ensure that the final product performs reliably even in harsh operating conditions.
Selecting an experienced manufacturer is critical to ensuring product performance and long-term reliability.
When evaluating potential suppliers, consider the following factors:
Engineering and design capabilities
Rapid prototyping services
Quality control systems
Production capacity
Industry experience
A reliable manufacturer should be able to provide full technical support from product design to mass production.
Backlight film switches have become an essential component in modern electronic interfaces due to their durability, compact structure, and superior visibility. From industrial equipment and medical devices to automotive electronics and consumer products, illuminated membrane switches offer a practical and reliable control solution.
By working with an experienced backlight film switch manufacturer, businesses can obtain fully customized backlit membrane switch solutions that meet both functional and aesthetic requirements while ensuring long-term performance and reliability.
As technology continues to advance, backlit film switch designs will play an increasingly important role in improving human-machine interaction across a wide range of industries.
