The satisfying click, the tactile feedback, the precision—it's easy to understand the appeal of mechanical keyboards. If you're currently using a membrane keyboard, you might have wondered if you could get the best of both worlds. Can you simply upgrade your existing keyboard by swapping in some high-performance mechanical switches? It’s a common question we encounter as specialists in Human-Machine Interface (HMI) design.
As experts at LuphiTouch, where we design and manufacture highly customized interface solutions from membrane keypads to complex assemblies, we want to provide a definitive answer. dlaycable will break down the technical realities, explore the alternatives, and help you understand the core differences from an engineering perspective.
To be direct: you cannot put mechanical switches on a standard membrane keyboard. The two technologies are fundamentally different in their construction, operation, and electronic principles. Attempting to install a mechanical switch onto a membrane circuit layer would be like trying to fit a car engine into a bicycle frame—the core systems are completely incompatible.
To understand why this modification is impossible, we need to look at how each keyboard type is built. At LuphiTouch, our expertise lies in understanding these constructions to their core to deliver reliable solutions for industries like medical, defense, and automation.

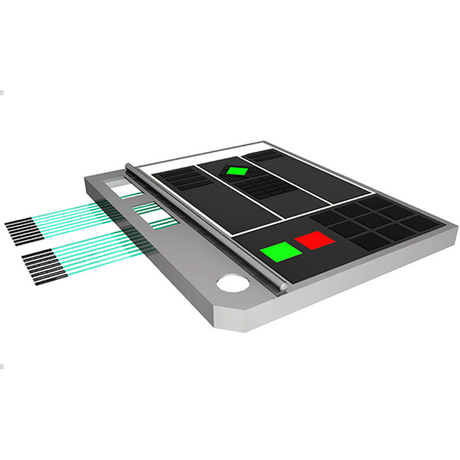

A membrane keyboard is a marvel of efficiency and durability. It isn't made of individual switches. Instead, it's a layered sandwich of flexible materials:
Graphic Overlay: The top surface with the printed keys that you see and touch.
Top Circuit Layer: A thin, flexible layer (usually PET) with conductive traces printed on its underside.
Spacer Layer: An adhesive sheet with cutouts that separates the top and bottom circuit layers, preventing them from touching.
Bottom Circuit Layer: Another flexible layer with a corresponding set of conductive traces.
When you press a key, you push the conductive pad on the top layer through the cutout in the spacer, making it touch the conductive pad on the bottom layer. This completes a circuit, and the keyboard's controller registers the keystroke. There is no individual mechanical component to replace.

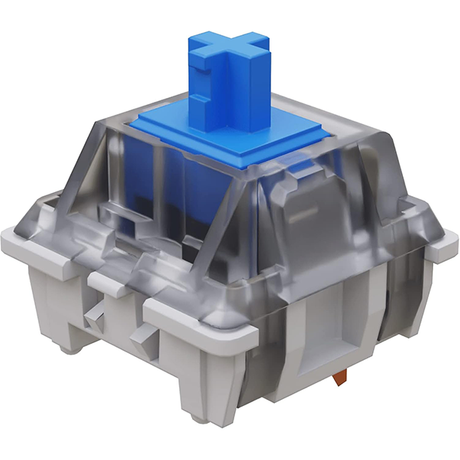

A mechanical keyboard, in contrast, uses a distinct, self-contained switch for every single key. Each mechanical switch is a complex component containing:
Stem: The plastic part that you see, which the keycap attaches to.
Housing: The casing that holds all the components together.
Spring: Provides resistance and pushes the key back up after being pressed.
Metal Contacts: Two small metal pieces that are pushed together by the stem's movement to complete the circuit.
These individual switches are then typically soldered onto a rigid Printed Circuit Board (PCB). The PCB has a dedicated circuit trace for each switch. The entire system is built around these individual, modular components.
You may have seen "mecha-membrane" or "hybrid" keyboards on the market, which adds to the confusion. However, these are not membrane keyboards with mechanical switches installed.
Typically, a "mecha-membrane" keyboard is still a standard membrane keyboard at its core. It uses the same rubber dome and membrane circuit layers. The "mechanical feel" comes from an added plastic slider or clicker mechanism within the rubber dome to mimic the tactile bump and sound of a true mechanical switch. It is a simulation, not a true mechanical actuation. You are still pressing a rubber dome onto a membrane circuit.
For the truly determined enthusiast, is there a path forward? Yes, but it's not an "upgrade"—it's a complete gut-and-replace project. This would involve:
Removing all the internal components of the membrane keyboard (the membrane layers, controller, etc.), leaving you with just the plastic case.
Designing or purchasing a custom PCB that fits inside the case.
Purchasing and soldering dozens of individual mechanical switches onto the new PCB.
Wiring the new PCB to a new keyboard controller.
Mounting everything securely inside the original case.
As you can see, this is an advanced electronics project that requires significant time, skill, and resources. You are not putting mechanical switches *on* a membrane keyboard; you are building a new mechanical keyboard *inside* an old membrane keyboard's shell.
This entire discussion highlights a critical principle in engineering and design: choosing the right technology for the application. Instead of trying to force one technology to behave like another, it's far more effective to select the one whose inherent advantages match your needs.
While mechanical keyboards excel in the consumer and gaming markets, custom membrane keypads, like those we engineer at LuphiTouch, offer a different set of powerful advantages essential for professional, industrial, and medical applications:
Durability and Sealing: The sealed, layered design makes membrane keypads highly resistant to dust, moisture, chemicals, and spills. They can be designed to meet high IP (Ingress Protection) ratings like IP65 or IP67, which is impossible for standard mechanical keyboards.
Reliability: With fewer moving parts and a protected circuit, membrane keypads offer exceptional operational lifespans, often rated for millions of actuations in harsh environments.
Low Profile and Sleek Design: The thin, flexible nature allows for incredibly compact and integrated designs, perfect for modern medical devices or control panels where space is at a premium.
Cost-Effectiveness for Customization: For creating a completely custom layout, shape, and graphic design, the tooling and manufacturing process for a membrane keypad is significantly more cost-effective than creating a custom PCB and keycap set for a mechanical keyboard.
Integrated Features: We can easily integrate features like custom backlighting (LGF, EL, or Fiber Optic), embedded LEDs, and even touch screens directly into the HMI assembly, providing a complete, one-stop solution.
So, can you put mechanical switches on a membrane keyboard? The answer is a clear no due to fundamental differences in their core technology. While a "mecha-membrane" offers a simulated feel and a full DIY conversion is technically possible for experts, both approaches miss the larger point.
The best solution is always one that is engineered for its purpose from the ground up. Whether your project requires the tactile response of discrete switches or the sealed, durable, and highly customizable interface of a membrane keypad, the key is to make an informed choice.
At LuphiTouch, we specialize in helping our clients navigate these choices. If your application demands a reliable, durable, and custom-designed human-machine interface, we have the expertise and technology to deliver the perfect solution. Contact us today to discuss your project's unique requirements.
