A product interface may remain in service long after its first production run. During that time, a company may update its electronics, revise its branding, change an enclosure, or replace an obsolete component. The challenge is keeping the control panel compatible without creating an entirely new design every time the product evolves.
When working with a custom membrane keypad manufacturer, lifecycle planning should begin before the first production order. Clear revision records, replaceable interfaces, documented material choices, and defined change procedures help product teams maintain continuity across product generations.

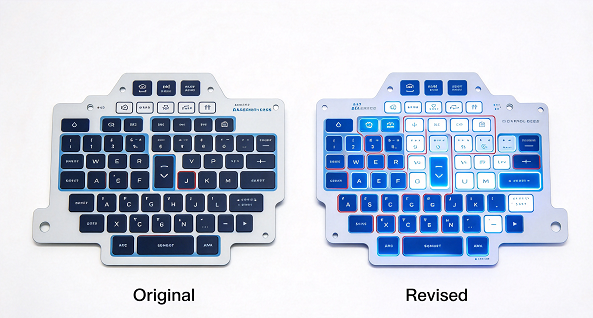

Not every part of a control panel needs to change when a product is updated. Key positions, connector locations, mounting points, and frequently used legends may be worth preserving, while branding, secondary labels, or selected functions may evolve.
During early design reviews, divide requirements into three groups:
Must remain stable: mounting outline, critical key locations, electrical interface, and safety-related labels.
May change by model: logos, language, selected graphics, or optional indicators.
Requires formal reapproval: circuit routing, materials, adhesive systems, dimensions, or functions that affect fit and performance.
This simple classification creates a practical boundary for future revisions. It also helps teams identify which updates can be handled as artwork changes and which require engineering verification.
A product team may hold a PDF, a CAD drawing, a graphic file, and an email describing a change. If these records identify different versions, a supplier can unintentionally produce a technically correct part to an outdated specification.
Use one part number and revision identifier for each approved configuration. Keep the drawing, artwork, circuit definition, connector details, and approval status linked to that identifier. A change log should record what changed, why it changed, who approved it, and whether the change requires new samples or testing.
Document or record | What to control |
|---|---|
Product drawing | Dimensions, cut-outs, mounting points, and tolerance notes |
Graphic artwork | Logos, legends, color references, language, and revision |
Electrical definition | Pinout, circuit mapping, connector, and indicator functions |
Material specification | Overlay, adhesive, spacer, and approved alternatives |
Approval record | Sample reference, comments, sign-off, and effective date |
For broader guidance on maintaining controlled documented information, see ISO 10013:2021. It provides guidance on creating and maintaining documented information that supports a quality management system.
A new controller board can affect the keypad even when its visible design remains the same. Pin assignments, connector orientation, scan matrix, indicator drive, and cable reach may change during an electronics update. These details should be checked before assuming an existing keypad can be reused.
Before approving a board revision, compare the new electrical definition with the current assembly. Confirm that the connector fits, all key positions map to the correct inputs, indicator behavior is preserved, and the tail can be routed without excessive bending or tension. If the circuit changes, test the revised assembly with the intended firmware and controller.
A short compatibility review is often more efficient than discovering a mismatch after a batch of parts has been ordered. Keep the evaluation focused on actual differences between the old and new design rather than repeating every test without considering risk.
Long-running products may encounter material discontinuations, supplier changes, or new environmental requirements. A replacement material should not be treated as interchangeable merely because it has a similar name or thickness. Differences in surface finish, printing performance, adhesive behavior, flexibility, or optical appearance can affect the finished interface.
Ask the manufacturer to identify critical materials and propose alternatives in advance where practical. Define which changes can be accepted through document review and which require physical samples or additional testing. For example, a change to a non-visible backing material may create a different risk from a change to the printed overlay or adhesive bonded to the enclosure.
This is where a design-for-manufacturing review can help. The DFM guide for custom membrane switch keypadsdiscusses how construction decisions influence manufacturability and consistency.
Service teams need to know which part fits which product revision. Similar-looking keypads may have different circuits, tail layouts, labels, or mounting details. Without clear identification, a replacement can be ordered incorrectly or installed in a device it was not designed for.
A replacement plan should identify the compatible product models, approved part number, revision, installation orientation, and any required functional checks. If the same front-panel design serves multiple models, clearly document the differences rather than relying on appearance alone.
Replacement planning item | Recommended record |
|---|---|
Compatibility | Product models and revisions supported |
Identification | Part number, revision, and label or package marking |
Installation | Orientation, connector handling, and mounting notes |
Verification | Key function, connector check, and visual inspection |
Obsolete versions | Whether stock remains approved for service use |
The initial unit price is only one part of lifecycle cost. Engineering time, new tooling, validation, inventory management, service stock, and line interruptions can all affect the economics of a redesign.
When choosing a custom membrane keypad manufacturer, discuss the anticipated product lifetime and expected revision frequency. Ask how drawings and approved samples will be retained, whether tooling or production data can be retrieved for repeat orders, and how obsolete revisions will be separated from current stock.
A well-documented design may reduce duplicate engineering work during later updates. For a related look at cost planning during design, read How Custom Membrane Switches Reduce Manufacturing Costs.
A change procedure should define who can request an update, who evaluates its impact, and who approves production release. It should also identify whether existing inventory can still be used, whether new samples are needed, and when a revised specification becomes effective.
Ask your supplier to notify you before making a change that could affect fit, function, appearance, or agreed performance. Keep the approved configuration accessible to purchasing, engineering, quality, and service teams. Good records are useful only when the people who need them can find the current version.
LuphiTouch provides customized membrane switch solutions for OEM products. When discussing a project, share current drawings, anticipated product updates, electrical interfaces, replacement needs, and estimated volumes. Explore LuphiTouch membrane switches to discuss a design and supply approach that fits your project.
Possibly, but the connector, pinout, scan matrix, indicator control, cable routing, and firmware behavior should be checked first. A visual match does not guarantee electrical compatibility.
It helps ensure that suppliers, engineers, purchasing teams, and service teams refer to the same approved construction. This reduces the risk of producing or ordering an outdated configuration.
Sometimes. It depends on whether the graphic layer can be replaced independently and whether the existing construction, adhesive, and circuit remain suitable. The manufacturer should review the design before promising interchangeability.
Include part numbers, revision history, approved materials, compatibility records, retained drawings, sample approval, forecast quantities, and a process for evaluating substitutions.
Test it when a change may affect fit, electrical operation, key response, appearance, materials, or environmental performance. The scope of testing should reflect the specific change and its risk.
