In the world of product design and manufacturing, the user interface is the critical point of contact between a person and a machine. For decades, membrane switches have served as a reliable, cost-effective, and versatile solution for this interaction. Unlike traditional mechanical keyboards, a custom membrane switch keypad is a seamless, printed electronic circuit that provides a robust and clean interface for a vast array of applications.
From the microwave in your kitchen to complex industrial control panels, these switches are everywhere. But what makes them so special, and how can a custom design elevate your product?

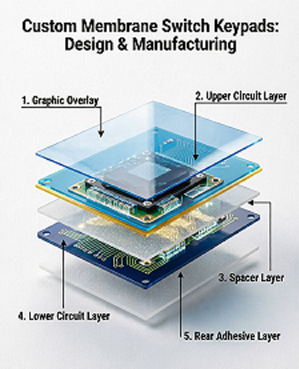

A membrane switch is not a single piece but a system of thin, flexible layers laminated together under high pressure. Each layer serves a specific function to create a reliable electrical circuit.
Graphic Overlay: This is the top, visible layer. It’s typically made from durable polycarbonate or polyester and features the keypad's graphics, symbols, and text. This layer is designed to withstand wear, chemicals, and UV exposure.
Upper Circuit Layer: Beneath the overlay lies a thin sheet with conductive traces (usually silver or copper ink) printed on it. This layer contains the top contact points, or "domes," for each key.
Spacer Layer: This is a thin, adhesive layer with cutouts that correspond to each key location. It separates the upper and lower circuit layers, preventing them from touching until a key is pressed.
Lower Circuit Layer: Similar to the upper circuit layer, this sheet contains the bottom part of the circuit traces and the corresponding contact points.
Rear Adhesive Layer: The final layer is a strong adhesive that allows the entire membrane switch assembly to be mounted securely onto the product's enclosure or a printed circuit board (PCB).
When a user presses a key on the graphic overlay, the top circuit layer is pushed through the spacer, making contact with the bottom circuit layer. This action completes the circuit, sending a signal to the device's main controller.
Opting for a custom membrane switch keypad offers numerous advantages over off-the-shelf solutions or mechanical buttons.
Sealed and Durable: The laminated construction creates a sealed unit that is resistant to dust, moisture, and spills. This makes them ideal for use in harsh environments, medical equipment, and food processing, where cleanliness is paramount.
Design Versatility: Customization is virtually limitless. You can design any shape, size, or layout. The graphic overlay can be printed in any color, with custom fonts, logos, and even Braille for accessibility.
Cost-Effective: For medium to high-volume production, membrane switches are significantly more economical than mechanical keyboards due to simpler assembly and fewer components.
Tactile Feedback: While they are flat, membrane switches can be designed with metal or polyester domes underneath the keys to provide a satisfying "click" or tactile response, assuring the user that their input has been registered.
Backlighting Options: For use in low-light conditions, backlit membrane switches are an excellent choice. Designers can integrate LEDs, fiber optics, or electroluminescent (EL) lamps to illuminate specific keys or the entire panel.
To better understand the advantages, let's compare membrane switches to traditional mechanical keyboards.
Feature | Membrane Switch Keypad | Mechanical Keyboard |
|---|---|---|
Durability | Sealed against dust and liquids | Vulnerable to spills and debris |
Lifespan | Typically 1-5 million actuations | Typically 10-50 million actuations |
Cost | Lower cost, especially at volume | Higher per-unit cost |
Customization | High (graphics, shape, size) | Low (limited to standard layouts) |
Profile | Very thin and lightweight | Thicker and heavier |
Noise Level | Quiet operation | Can be loud (audible click) |
When designing a custom membrane switch, several factors must be considered to ensure optimal performance and user experience.
Tactile vs. Non-Tactile: Do your users need physical feedback? A tactile switch with a metal dome provides a distinct "snap," while a non-tactile (or "embossed") switch offers a softer, quieter press.
Actuation Force: This is the amount of pressure required to activate a key, measured in grams (g). The force should be light enough for easy use but heavy enough to prevent accidental presses. A common range is 180g to 250g.
Circuit Material: Silver ink is the most common and cost-effective choice. However, for applications requiring higher durability or flexibility, copper or even FPC (Flexible Printed Circuit) materials can be used.
Termination Type: How will the switch connect to your device's PCB? Common methods include a tail with exposed contacts, a ZIF (Zero Insertion Force) connector, or a standard pin header.
Environmental Sealing: For outdoor or industrial use, specifying the correct level of ingress protection (IP rating) is crucial. A well-designed membrane switch can achieve ratings of IP67 or higher, making it dust-tight and protected against temporary immersion.
The versatility of custom membrane switch keypads makes them suitable for a wide range of industries.
Consumer Electronics: Microwave ovens, washing machines, coffee makers, and remote controls.
Medical Devices: Patient monitors, infusion pumps, and diagnostic equipment, where a sealed, cleanable surface is essential.
Industrial Controls: Machinery control panels, test and measurement equipment, and automation systems that require durability.
Automotive: Dashboard controls, climate control panels, and in-vehicle entertainment systems.
Telecommunications: Office phone systems and network equipment interfaces.
A custom membrane switch keypad is more than just a collection of buttons; it's the face of your product. By understanding the construction, benefits, and design possibilities, you can create a user interface that is not only functional and durable but also enhances your brand identity. Whether you need a simple three-button panel or a complex, backlit graphic interface, the possibilities are endless.
For more information on how to get started with your custom project, please visit our membrane switches page.
1. What is the typical lifespan of a membrane switch?
A well-designed membrane switch can last for 1 to 5 million actuations, depending on the materials and dome technology used. This is more than sufficient for most consumer and industrial applications.
2. Can membrane switches be used outdoors?
Yes, absolutely. By using UV-stable inks and polycarbonate materials, and ensuring a proper seal against the enclosure, membrane switches can be designed to withstand harsh outdoor environments, including direct sunlight and rain.
3. What is the difference between a tactile and non-tactile switch?
A tactile switch provides physical feedback (a "click" or "snap") when pressed, confirming the actuation. A non-tactile switch has a softer, quieter feel with no distinct click, often used in applications where a flat, sealed surface is preferred.
4. Are custom membrane switches expensive to produce?
While there are initial costs for tooling and setup, the per-unit cost of membrane switches is very low, especially for medium to high-volume production runs. They are generally much more cost-effective than assembling individual mechanical buttons.
5. Can I integrate an LCD or LED display with a membrane switch?
Yes, this is a very common practice. A window can be created in the graphic overlay and circuit layers to mount an LCD, LED, or other display technologies directly behind the keypad, creating a complete user interface assembly.
