How to Evaluate Silicone Keypad Manufacturers Before You Commit

The silicone keypad in your product does not fail on its own; it fails when a supplier cut a corner in material, loosened the tolerance on key travel, or skipped a test nobody thought to ask about. That is why the most reliable way to evaluate silicone keypad manufacturers is to read their specifications and inspect their quality systems, rather than rely on marketing claims. This guide explains what those details mean at each stage, from material to tactile feel, conductive contacts, printing and testing, and shows how LuphiTouch, a supplier of user interface components and control panels, addresses them for demanding markets such as home appliances, medical devices, industrial control and instrumentation.

Start with the material specification

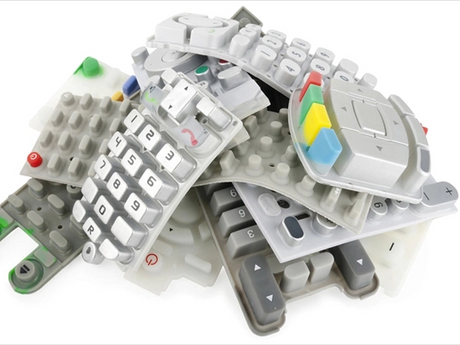

A silicone rubber keypad is defined by far more than a hardness number. Reputable silicone keypad manufacturers document the polymer system, the Shore A hardness and physical properties including tensile strength, tear strength, elongation and compression set. Compression set deserves special attention: a low value means the keypad recovers its shape after millions of actuations, even in warm environments where rubber relaxes fastest. Density tells you whether the molded part is consistent, and flammability rating, for example UL 94 V-0 where the application requires it, is a hard requirement in many appliance and medical projects.

Request the material datasheet before any discussion of pricing. A supplier that cannot produce one for a standard compound will rarely be able to guarantee performance for your custom design. LuphiTouch rubber keypad product page

Key force, travel and snap ratio define the feel

Tactile quality is not cosmetic; it affects operator feedback and fatigue over long shifts. The three numbers that matter are actuation force, pre-travel and snap ratio. Typical silicone rubber keypads actuate between 150 g and 300 g depending on the application and key size, and the snap ratio, the percentage of travel at which the switch feel releases, should normally sit above 40 percent for a positive click.

Insist on a force-travel curve measured from real samples, not a nominal value copied from the drawing. Molding pressure, silicone hardness and the shape of the key skirt all change the curve; a manufacturer that measures every batch can hold the feel within a narrow window from first article to high-volume production.

Conductive contacts: pills or printed circuits

Silicone keypads deliver switching through conductive contacts, and the choice affects long-term resistance stability. Carbon-loaded silicone pills are the classic solution: robust, cost-effective and stable over environmental cycling. Printed silver-based contacts suit complex layouts or sit on the keypad when the conductive path must travel farther.

Whatever the method, ask for contact resistance targets and the test method used to verify them. Resistance drift is one of the most common failure modes in low-cost keypads, and it is only visible when a supplier actually tracks it over temperature and humidity.

Legends, printing and surface durability

A keypad face must survive years of cleaning, contact with skin oils and repeated presses. Two-tone molded legends are formed into the silicone itself and resist wear far better than surface-printed graphics, although printing remains the workhorse for complex color requirements.

Verify the ink system, the adhesion test and the expected wear cycles. And do not forget shaft and skirt dimensions: silicone is a soft material, and tolerances here decide how the keypad aligns with your control panel and membrane switch assembly.

The tests that separate good suppliers

Reliability is built in the testing room. Look for silicone keypad manufacturers that run actuation force verification, travel measurement, contact resistance checks and high- and low-temperature cycling on production lots, and that inspect assembled modules against recognized acceptance criteria such as IPC standards.

Equally important are the process controls behind the tests: incoming material inspection, batch traceability, first article inspection and documented corrective action when a lot fails. A supplier that can show test reports for your own part numbers is one you can audit, and auditability is what keeps a supply chain predictable.

Look beyond a single keypad

The most cost-effective partners are rarely single-component suppliers. A manufacturer that also builds membrane switches, control panels, user interface modules and complete mechatronic assemblies can align keypad design with the surrounding interface, share tooling strategy and reduce the number of vendors you must qualify. When keypads, switches, displays and housings are designed as one system, tolerance stack-up problems are caught before they become field failures.

Why LuphiTouch belongs on your shortlist

LuphiTouch designs and manufactures silicone rubber keypads, alongside touch-display modules, membrane switches, control panels, touchscreens, displays and capacitive sensing switches, for customers in home appliances, medical devices, industrial control and instrumentation. The same facilities that produce your keypad also support OCA bonding, EMS contract manufacturing and box-build assembly, which means one accountable partner from silicone keypad to finished product. When you evaluate silicone keypad manufacturers, evaluate for the whole life of the product: material honesty, measured feel, tested reliability and integration depth. Those are the qualities that keep your device performing after years in the field.
