Membrane keypads are widely used in today’s electronic devices due to their durability, cost-effectiveness, and flexible design. As a core component of human-machine interfaces (HMI), they provide reliable input solutions for industries such as medical, industrial automation, and consumer electronics.

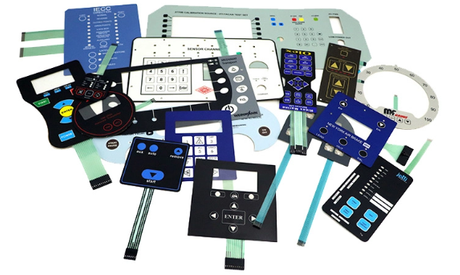

Membrane keypads are thin, flexible input devices made of multiple layers, including a graphic overlay, spacer, and circuit layer. When a user presses a key, the top layer makes contact with the circuit layer, completing an electrical connection and sending a signal.
Unlike traditional mechanical keyboards, membrane keypads have no individual moving parts, making them more resistant to wear and environmental damage.
Membrane keypads are lightweight and thin, ideal for space-limited devices.
They are resistant to dust, moisture, chemicals, and repeated use.
Simplified structure and manufacturing processes reduce overall costs.
Design options include colors, icons, embossing, and backlighting.
Their flat surface allows easy cleaning, making them suitable for medical and industrial environments.
A typical membrane keypad consists of the following layers:
Graphic Overlay: Displays symbols, text, and branding
Top Circuit Layer: Conductive traces for signal transmission
Spacer Layer: Prevents accidental contact between circuits
Bottom Circuit Layer: Completes the electrical circuit
Adhesive Layer: Secures the keypad to the device
To ensure optimal performance, manufacturers must consider several factors:
Polyester (PET) is commonly used for its durability and flexibility.
Embossing or metal domes can provide a better user experience.
Sealing techniques improve resistance to water, dust, and chemicals.
Circuit design must ensure consistent conductivity over time.
Membrane keypads are used across a wide range of industries:
Medical devices and diagnostic equipment
Industrial control panels
Household appliances
Automotive control systems
Security and access control systems
Their versatility and reliability make them a preferred choice for both simple and complex interfaces.
The production of membrane keypads involves several precision steps:
Screen printing conductive circuits
Layer alignment and lamination
Embossing and finishing
Electrical testing and quality inspection
Membrane keypads offer a reliable, cost-effective, and customizable solution for modern electronic interfaces. With their slim design, durability, and adaptability, they continue to play a vital role in various industries. Investing in high-quality membrane keypad design and manufacturing can significantly enhance product performance and user experience.
