Deciding between a TFT LCD and an AMOLED display depends entirely on the application's specific requirements. AMOLED screens offer superior contrast with true blacks and vibrant colors, making them ideal for consumer media devices. However, TFT LCDs provide exceptional brightness, a significantly longer operational lifespan, immunity to screen burn-in, and greater cost-effectiveness, establishing them as the more reliable and practical choice for industrial, medical, and long-lifecycle applications. The "better" technology is the one that best aligns with your product's priorities, whether it's the stunning visual fidelity of AMOLED or the robust, enduring performance of TFT LCD.

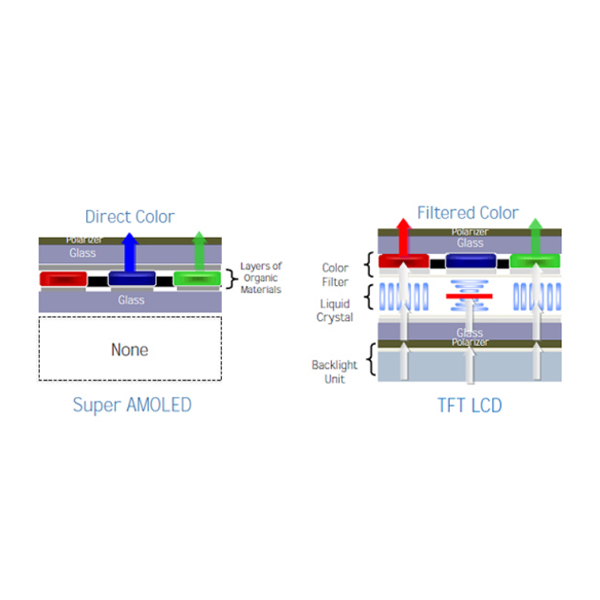

At the heart of any modern electronic device is its display, the primary interface between the user and the machine. The two dominant technologies in this space are Thin-Film-Transistor Liquid Crystal Displays (TFT LCD) and Active-Matrix Organic Light-Emitting Diodes (AMOLED). While both create high-quality images, they do so using fundamentally different methods, which results in distinct advantages and disadvantages for specific use cases.

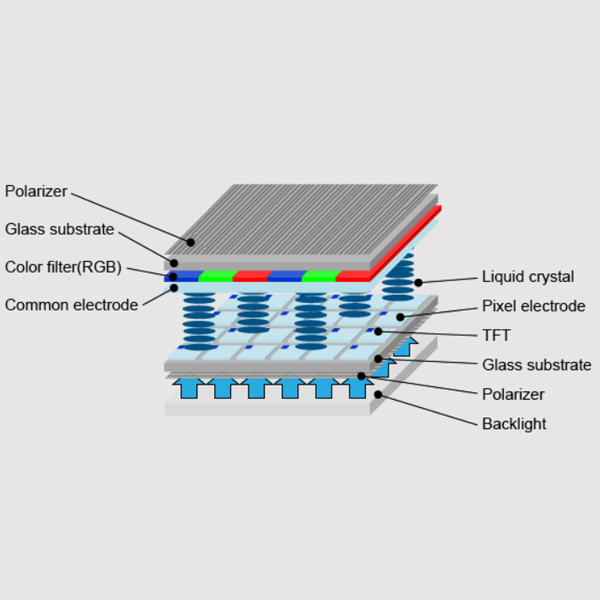

TFT LCD is a mature and highly refined display technology. Its operation relies on three main components: a powerful backlight (usually LED), a layer of liquid crystals, and a grid of thin-film transistors. The backlight provides a constant, uniform source of light. Each pixel on the screen is controlled by a tiny transistor that applies a voltage to the liquid crystals in that pixel. This voltage causes the crystals to twist, which in turn either blocks the backlight or allows it to pass through a series of color filters (red, green, and blue). By precisely controlling the alignment of these crystals, a TFT display can create millions of colors. Technologies like In-Plane Switching (IPS) have further enhanced TFTs, offering greatly improved viewing angles and color accuracy, making them suitable for a wide range of professional applications.
AMOLED technology operates without a separate backlight. As the name "Organic Light-Emitting Diode" suggests, each individual pixel in an AMOLED display is its own light source. Each pixel is composed of organic compounds that glow when an electric current is applied—a phenomenon known as electroluminescence. Because each pixel can be lit up or turned off independently, AMOLED screens can achieve "true black" by simply shutting off the pixels completely. This ability to control light at the pixel level is what gives AMOLED its signature high contrast ratio and vibrant, saturated colors.
To make an informed decision, it's essential to compare the key performance metrics of both technologies side-by-side. The following table provides a clear overview of how they stack up against each other.
| Feature | TFT LCD | AMOLED |
|---|---|---|
| Color & Contrast | Good color reproduction, with a defined contrast ratio. IPS panels offer excellent color accuracy. | Superior. "Infinite" contrast ratio with true blacks and highly saturated, vibrant colors. |
| Power Consumption | Consistent power draw due to the constant backlight; more efficient on bright or white screens. | Variable power draw; highly efficient on dark screens but consumes more power displaying white. |
| Brightness & Sunlight | Excellent. Capable of very high brightness levels, making it superior for outdoor and direct sunlight visibility. | Good, but high brightness can accelerate pixel degradation. Can be less visible in direct sunlight. |
| Lifespan & Burn-in | Extremely long operational lifespan. Immune to permanent image retention or burn-in. | Shorter lifespan due to organic compound degradation. Susceptible to permanent burn-in with static images. |
| Cost | More cost-effective to manufacture, especially for larger sizes and at scale. | More expensive to produce due to complex manufacturing processes. |
| Viewing Angles | Good, especially with IPS technology which offers wide, consistent viewing angles. | Excellent. Colors and brightness remain consistent even at extreme viewing angles. |
Beyond the high-level summary, understanding the nuances of how these displays perform in real-world scenarios is critical for engineers and product designers. The choice often comes down to balancing visual appeal with long-term reliability and cost.
There is no denying that AMOLED displays offer a visually stunning experience. Their ability to turn pixels completely off results in an "infinite" contrast ratio, where deep blacks next to bright colors create a dramatic and immersive image. This makes them a favorite for media consumption on smartphones and high-end televisions. However, modern TFTs, particularly those using IPS technology, have made significant strides. They deliver excellent color accuracy, wide color gamuts, and contrast ratios that are more than sufficient for professional applications where color fidelity is more important than sheer vibrancy. For a medical imaging device or an industrial control panel, the consistent and accurate color representation of a high-quality TFT LCD is often the more desirable characteristic.
The efficiency of these displays is directly linked to their core technology. A TFT LCD's backlight is always on, meaning its power consumption is relatively stable regardless of the image being shown. It is most efficient when displaying a full white screen, as the liquid crystals simply allow all the light to pass through. Conversely, an AMOLED display's power draw is highly variable. Displaying a black screen consumes almost no power, but a full white screen requires every single pixel to be activated at maximum brightness, resulting in significantly higher power consumption than a comparable TFT. For devices that feature dark-mode user interfaces, AMOLED is more efficient. For industrial or medical equipment that often displays static, bright, or white-heavy interfaces, a TFT LCD can often be the more power-efficient choice over the product's lifetime.
For industrial, medical, and enterprise-grade products, operational lifespan is a non-negotiable priority. This is where TFT LCD technology holds a decisive advantage. The inorganic components of an LCD panel have a very long and predictable lifespan, easily running for tens of thousands of hours without significant degradation. Most importantly, they are not susceptible to "burn-in" or permanent image retention.
AMOLED technology, on the other hand, relies on organic compounds that degrade over time. The blue-light-emitting diodes have the shortest lifespan, which can lead to color shifting as the display ages. More critically, if a static image (like a taskbar, clock, or control icon) is displayed for extended periods, those pixels will age faster than the surrounding ones, leaving a permanent, ghost-like image on the screen. This makes AMOLED a problematic choice for applications where static UI elements are common, such as in control systems, point-of-sale terminals, or medical monitoring equipment.
TFT LCD manufacturing is a mature, highly optimized process. Decades of refinement have made it an incredibly cost-effective and scalable technology. This allows for the reliable production of displays in a vast range of sizes and specifications at a competitive price point, which is a crucial factor for any product being manufactured at scale. AMOLED production is a more complex and delicate process, leading to higher manufacturing costs and historically lower yields. While prices are decreasing, AMOLED panels remain the more premium and expensive option, particularly for custom or larger-sized displays.
The technical data leads to a clear conclusion: the ideal display technology is defined by its intended environment and use case.
For applications where reliability, longevity, and consistent performance are paramount, TFT LCD is the superior engineering choice. It is the go-to technology for:
Industrial Control Panels: Where displays must run 24/7 showing static information without risk of burn-in.
Medical Devices: Requiring high brightness for visibility in operating rooms and long-term color stability for accurate diagnostics.
Outdoor Kiosks & Digital Signage: Needing exceptional sunlight readability and durability against temperature fluctuations.
Automotive & Avionics: Demanding a long operational life and proven resistance to environmental stress.
The combination of cost-effectiveness, durability, and high performance makes TFT LCD a robust and pragmatic solution for products designed to last.
AMOLED technology excels in the fast-paced world of consumer electronics, where product life cycles are shorter and visual "wow-factor" is a key selling point. Its strengths are best utilized in:
Smartphones & Wearables: Where thin profiles, power efficiency with dark UIs, and vibrant colors enhance the user experience.
High-End Televisions: Providing the deep blacks and high contrast that are perfect for a cinematic viewing experience.
Gaming Devices: Offering fast response times and deeply saturated colors that make games more immersive.
In these markets, the stunning image quality often outweighs the concerns about longevity and potential burn-in.
Choosing the right display is a foundational decision in product design. While the vibrant colors and deep blacks of AMOLED are appealing, a thorough analysis reveals the immense practical advantages of TFT LCD technology for professional and industrial-grade products. The superior lifespan, immunity to burn-in, excellent sunlight visibility, and cost-effective scalability of TFT LCDs ensure that the display will perform reliably for the entire lifecycle of the product it is built into. For projects that demand unwavering performance and long-term value, TFT LCD remains the most trusted and intelligent choice in screen technology.
