A control panel may look simple from the outside, but the switch beneath the surface has to handle repeated pressing, moisture, dust, cleaning chemicals, temperature changes, and mechanical stress.

For equipment used outdoors, in industrial environments, medical equipment, food-processing systems, transportation, or other demanding applications, a standard membrane switch may not provide sufficient environmental protection. This is where a waterproof membrane switch becomes an important part of the product design.

However, choosing a waterproof solution should not start with the question, “Which switch has the highest IP rating?”

The better question is:

What environmental conditions will the switch actually experience, and how should the complete switch assembly be designed to survive them?

This buying guide explains the most important factors buyers, engineers, product designers, and procurement teams should evaluate before ordering a custom waterproof membrane switch.

1. What Is a Waterproof Membrane Switch?

A waterproof membrane switch is a low-profile human-machine interface designed to provide electrical switching while protecting its internal circuit structure from moisture and other environmental contaminants.

Unlike a traditional mechanical push button, a membrane switch normally consists of several functional layers. Depending on the design, these can include:

• Graphic overlay

• Adhesive layers

• Upper circuit

• Spacer

• Lower circuit

• Conductive contacts

• Metal or polyester domes

• Rear adhesive

• Flexible connector tail

• Optional gasket or sealing structure

When an operator presses a key, the conductive elements make contact and complete the electrical circuit. After the key is released, the circuit returns to its normal open state.

The waterproof performance comes from how these layers are designed, bonded, aligned, and sealed.

This means waterproofing is not simply a material choice. It is a system-level design requirement.

For OEM applications, buyers should evaluate the complete assembly rather than selecting a product based only on the word “waterproof” in a supplier catalog.

Membrane Switch Design & Manufacturing Guide

2. Why Waterproofing Matters

Moisture can create several problems inside an electronic control interface.

Water or condensation may:

• Cause electrical leakage

• Create short circuits

• Accelerate corrosion

• Damage conductive traces

• Affect adhesive performance

• Reduce tactile reliability

• Contaminate contact areas

• Cause intermittent signal problems

• Shorten product service life

The risk becomes greater when equipment is exposed to rain, splash, washing, condensation, humidity, or accidental liquid spills.

For example, an indoor laboratory instrument may only need protection against occasional moisture. An outdoor controller may experience rain and temperature cycling. A food-processing machine may be repeatedly exposed to washdown conditions.

These applications should not automatically use the same membrane switch construction.

The correct design begins with understanding the actual environment.

3. Start With the Required IP Rating

One of the first specifications to establish is the required ingress protection level.

The IP code provides a standardized way to describe protection against solid particles and water ingress. However, buyers should avoid selecting an IP rating simply because a higher number sounds better.

Instead, match the rating to the real operating environment.

Common IP Considerations

An important point is that the IP rating of the complete product may depend on more than the membrane switch itself.

The enclosure, mounting surface, adhesive, connector tail, cable exit, and surrounding mechanical structure can all influence the final result.

Therefore, when ordering a waterproof membrane switch, ask the supplier how the switch integrates with the final enclosure.

4. Do Not Confuse Water Resistance With Waterproofing

The word “waterproof” can be misleading when used without a defined test requirement.

A switch that survives occasional splashes may not survive continuous water exposure.

Likewise, a switch that works reliably indoors may not perform the same way after months of outdoor temperature changes.

Buyers should clearly define:

1. Expected water exposure

2. Required IP rating

3. Operating temperature

4. Storage temperature

5. Humidity

6. Cleaning method

7. Chemical exposure

8. Mechanical cycle requirements

9. UV exposure

10. Installation environment

This information gives the manufacturer enough information to design the appropriate layer structure.

5. Choose the Right Overlay Material

The graphic overlay is one of the most important parts of a membrane switch because it is the surface directly touched by the operator.

For waterproof applications, overlay selection affects:

• Chemical resistance

• Scratch resistance

• Flexibility

• Printing quality

• UV resistance

• Tactile feel

• Surface appearance

• Long-term durability

Two commonly considered materials are polyester and polycarbonate.

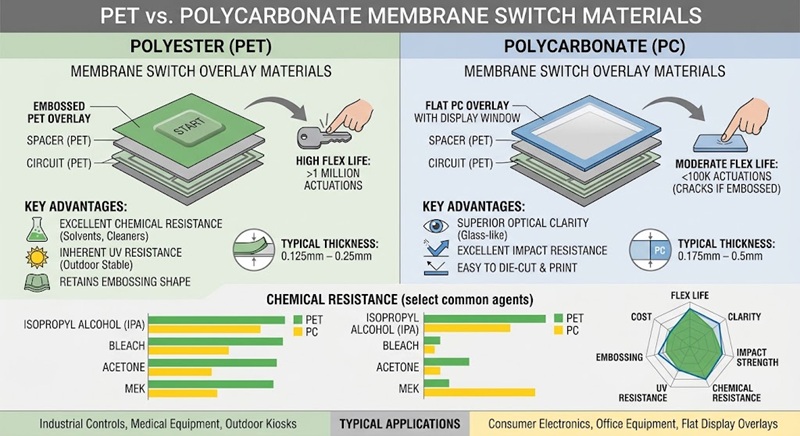

Polyester vs. Polycarbonate

There is no universally superior overlay material.

For a high-touch industrial interface, a durable polyester construction may be preferable. For an interface requiring specific visual effects, windows, or forming characteristics, polycarbonate may be more suitable.

The best choice depends on the complete product environment.

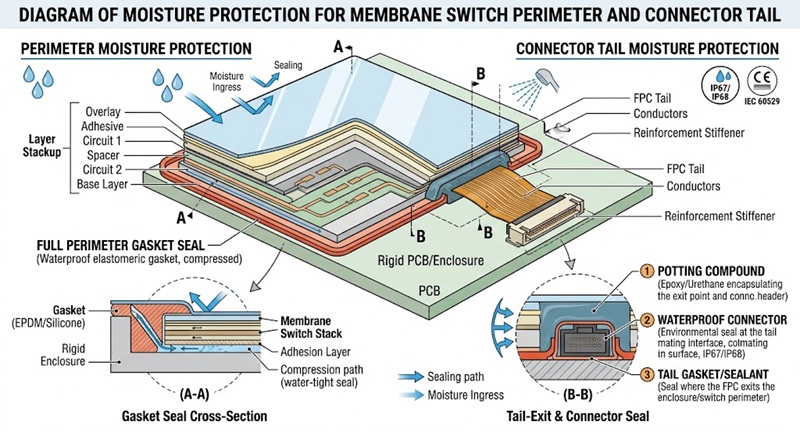

6. Evaluate the Sealing Structure

The overlay material alone does not make a switch waterproof.

The perimeter is particularly important because moisture can potentially enter through the boundary between the switch and the equipment housing.

A well-designed sealing structure should consider:

• Perimeter adhesive

• Adhesive width

• Surface flatness

• Housing material

• Housing surface finish

• Switch thickness

• Connector exit

• Cutout dimensions

• Installation pressure

• Temperature changes

The bonding surface should be designed together with the host enclosure.

For example, an adhesive may perform well on one housing material but poorly on another if surface energy, texture, contamination, or curvature differs.

This is why custom engineering is often more reliable than simply adapting an off-the-shelf keypad.

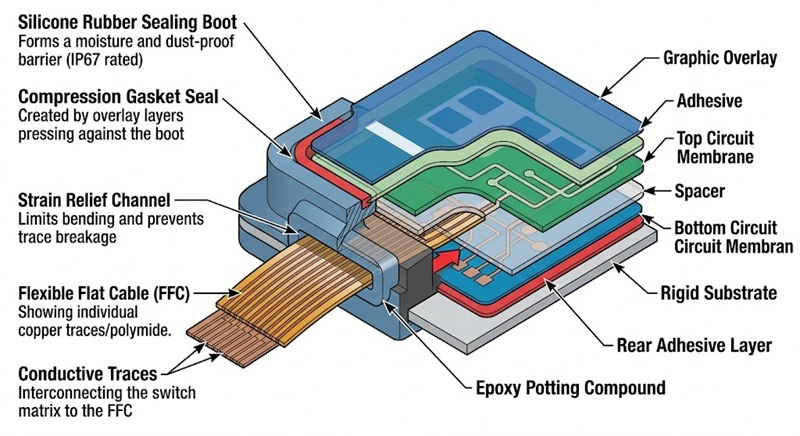

7. Pay Special Attention to the Connector Tail

One of the most frequently overlooked areas in a waterproof interface is the flexible tail.

The main membrane area may be completely sealed while the connector exit creates a potential pathway for moisture.

When specifying a waterproof membrane switch, ask:

• Where does the tail exit?

• Does the tail pass through an enclosure opening?

• Is additional sealing required?

• How much bending will the tail experience?

• Will the tail be exposed to water?

• Does the connector require environmental protection?

• Is strain relief necessary?

The tail design should be considered during the early enclosure-design stage rather than after the membrane switch is completed.

8. Select Tactile or Non-Tactile Feedback

Waterproofing is only one part of the user experience.

The operator also needs to know whether a key has been activated.

A tactile membrane switch typically uses a dome structure to provide physical feedback.

A non-tactile design may rely on visual or electronic feedback instead.

Tactile vs. Non-Tactile Design

If an operator wears gloves or works in a noisy industrial environment, tactile feedback may become especially valuable.

If the interface is primarily visual and must remain extremely thin, a non-tactile construction may be more appropriate.

9. Consider Actuation Force Carefully

Actuation force determines how much pressure an operator needs to apply to activate a key.

A force that is too low can result in accidental activation.

A force that is too high can create operator fatigue, especially when the same key is pressed hundreds or thousands of times per day.

The correct actuation force depends on:

• Overlay material

• Key size

• Dome construction

• Dome diameter

• Dome material

• Key travel

• Operator requirements

• Application environment

For this reason, buyers should provide the manufacturer's engineering team with an expected user scenario whenever possible.

Instead of saying “standard force,” specify the desired operating experience.

10. Check Expected Cycle Life

A membrane switch should be selected according to how often each key will be activated.

For example:

• A maintenance panel may only be pressed several times per day.

• A production-machine control may be pressed hundreds of times per shift.

• A handheld device may experience thousands of operations over its service life.

Cycle-life requirements can affect the selection of:

• Dome type

• Contact construction

• Overlay material

• Conductive material

• Spacer design

• Mechanical geometry

Do not choose a design based only on the highest advertised cycle number.

Instead, ask for a test specification that reflects the actual application.

A high-cycle application should ideally be validated with samples before mass production.

11. Consider Chemical Exposure

Water is not always the most aggressive environmental factor.

Industrial and medical equipment may also encounter:

• Alcohol-based cleaners

• Disinfectants

• Oils

• Grease

• Mild acids

• Alkaline cleaners

• Detergents

• Solvents

The overlay, ink, adhesive, and protective coating must be compatible with the chemicals used during the product's service life.

For a medical device, for example, frequent cleaning can be more demanding than occasional water exposure.

Therefore, the correct question is not simply:

“Is the membrane switch waterproof?”

It should be:

“Can the complete interface maintain its performance after repeated exposure to the chemicals used in our application?”

12. Outdoor Applications Require More Than Waterproofing

Outdoor equipment faces several environmental stresses simultaneously.

A waterproof membrane switch used outdoors may need to handle:

• Rain

• Humidity

• UV exposure

• Dust

• Temperature changes

• Condensation

• Repeated thermal expansion

• Mechanical vibration

These factors can interact.

For example, repeated heating and cooling may cause materials with different expansion characteristics to move against each other. Over time, this can affect adhesive interfaces or sealing areas.

Outdoor design should therefore consider the entire material stack rather than focusing only on water resistance.

Outdoor Membrane Switch Solutions.

13. When Should You Choose a Custom Waterproof Membrane Switch?

A custom solution is generally worth considering when your product requires a combination of environmental protection, unique geometry, specific tactile performance, graphics, electrical configuration, or backlighting.

Typical applications include:

• Industrial control panels

• Automation equipment

• Medical equipment

• Laboratory instruments

• Outdoor electronics

• Transportation equipment

• Security systems

• Fitness equipment

• Agricultural machinery

• Marine equipment

• Consumer electronics

The benefit of customization is not simply visual design.

A properly engineered custom interface can integrate the mechanical, electrical, environmental, and user-interface requirements into one assembly.

14. How to Choose the Right Manufacturer

The right supplier should be able to discuss the entire application rather than simply quote a keypad from a drawing.

During supplier evaluation, look for evidence of:

• Membrane switch engineering experience

• Custom circuit design capability

• Graphic overlay production

• Tactile dome integration

• Waterproof sealing experience

• Prototype development

• Quality control

• Functional testing

• OEM/ODM support

• Stable production capacity

Ask the manufacturer to review your drawings before finalizing the quotation.

A good engineering review may identify problems with:

• Key spacing

• Tail routing

• Adhesive area

• Housing clearance

• Graphic alignment

• Dome position

• Sealing boundaries

• Connector location

Solving these issues before tooling or mass production can save considerable time and cost.

15. Final Buying Advice

Choosing a waterproof membrane switch should be treated as an engineering decision rather than a simple component purchase.

The most important factors are not necessarily the cheapest price or the highest IP number.

Instead, focus on whether the switch is correctly matched to:

Environment + sealing + materials + electrical requirements + tactile performance + enclosure + testing.

For a reliable OEM project, start by defining the actual operating conditions. Then work with the manufacturer to select the layer structure, overlay, adhesive, circuit, tactile system, connector, and sealing approach.

Finally, validate the prototype under conditions that realistically represent the finished product.

This approach can help reduce leakage problems, premature wear, poor tactile performance, and costly redesigns.

If you are sourcing a customized interface for industrial, medical, outdoor, or electronic equipment, a professional manufacturer can help translate your product requirements into a manufacturable membrane switch solution.
