Why does your smartphone spring to life with a light tap, while an ATM requires a firm press? The answer lies in the touch screen technology powering each device. Capacitive and resistive touch screens, the two dominant types, shape how we interact with everything from phones to industrial controls, but they work in fundamentally different ways.
In this comprehensive guide, we’ll explore the differences between capacitive and resistive touch screens, diving into their mechanics, advantages, applications, and how to choose the right one for your needs. Whether you’re an engineer designing a new interface, a consumer curious about your gadgets, or a business owner selecting technology, this article offers clear, actionable insights to help you make informed decisions.
A capacitive touch screen detects touch or proximity by sensing changes in electrical charge. It relies on the body’s natural capacitance—the ability to store an electric charge—to register input. When your finger touches the screen, it disrupts an electric field, triggering a response.

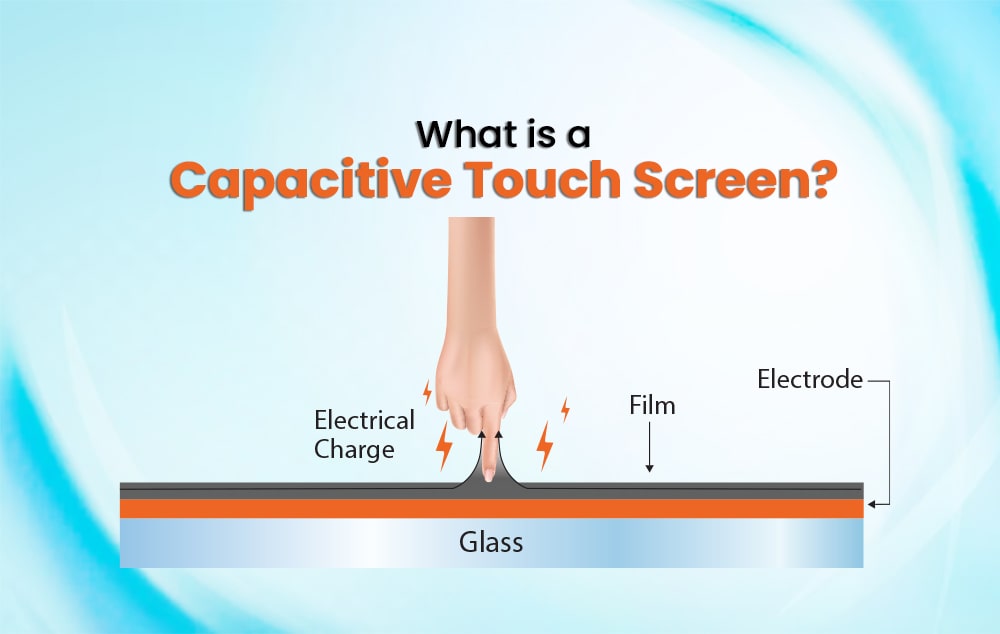

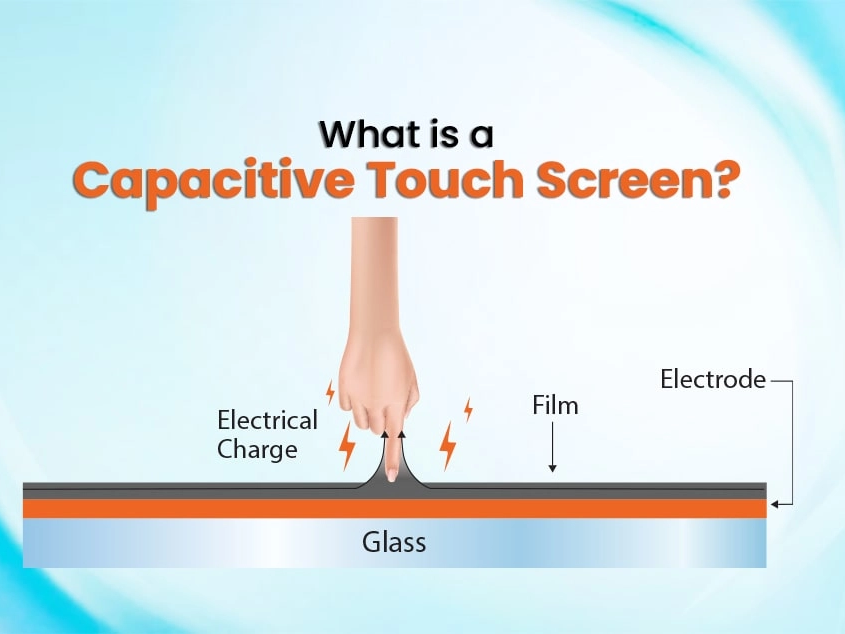

Capacitive screens feature a glass surface coated with a conductive layer, typically indium tin oxide (ITO). This layer forms a capacitor that holds a charge. Electrodes at the screen’s corners maintain a stable electric field. When a finger approaches, it alters the field, causing a capacitance change (1–10 picoFarads). A controller detects this shift in under 10 milliseconds, enabling fast, smooth interactions.
Multi-Touch: Supports gestures like pinch-to-zoom or swiping, thanks to a grid of electrodes.
Clarity: Glass surfaces deliver sharp, vibrant displays.
Sensitivity: Responds to light touches, ideal for intuitive interfaces.
Capacitive screens power the responsive, gesture-driven experiences we expect from modern devices.

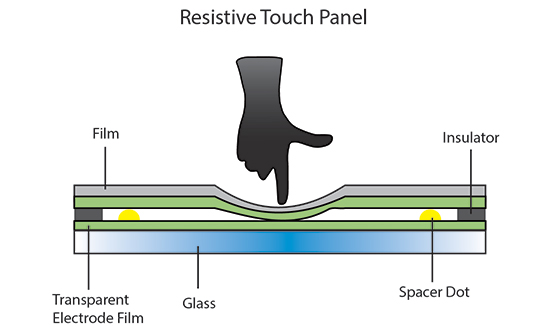

A resistive touch screen registers input through physical pressure. It consists of two flexible layers—usually plastic or glass—separated by tiny spacer dots. When pressed, the layers touch, completing a circuit to detect the input location.
The top layer, often polyethylene terephthalate (PET), flexes under pressure (100–300 grams of force) to contact the bottom layer, typically glass or plastic with a conductive coating. Spacer dots prevent unintended contact. A controller maps the touch point by measuring voltage changes, with response times around 20–30 milliseconds.
Versatile Input: Works with fingers, styluses, or gloved hands.
Cost-Effective: Simpler construction reduces manufacturing costs.
Pressure-Based: Requires deliberate force, reducing accidental touches.
Resistive screens are rugged and adaptable, thriving in environments where precision or cost matters.

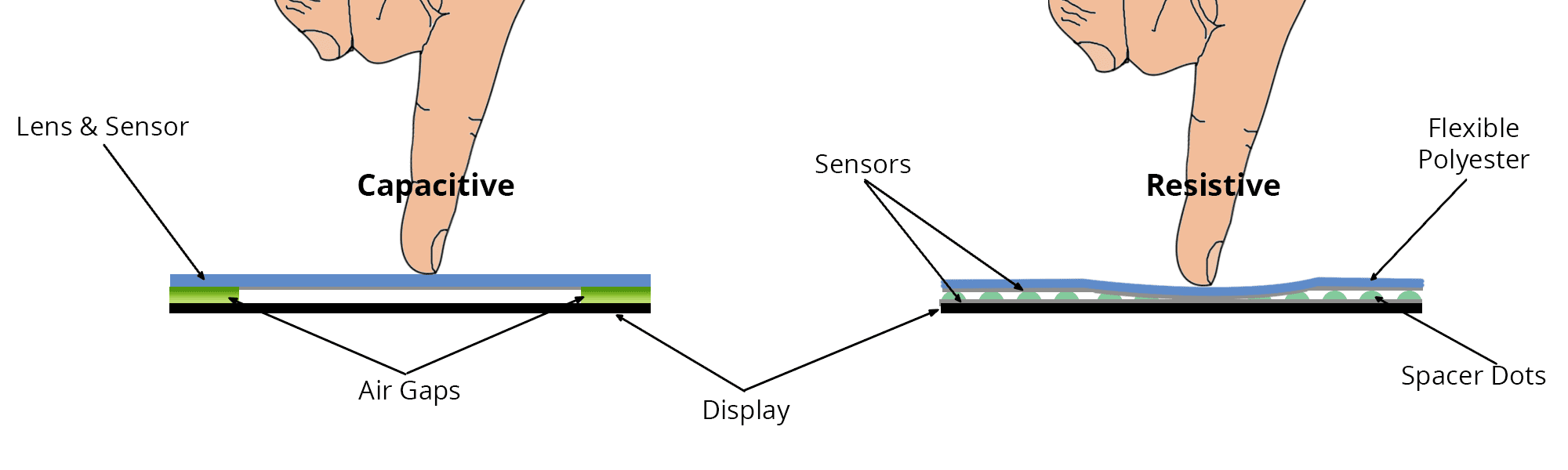

Capacitive and resistive touch screens differ in design, performance, and use cases. Here’s a breakdown of the main distinctions:
Sensitivity:
Capacitive: Detects light touches or proximity, offering instant response.
Resistive: Requires physical pressure, making it less sensitive but more deliberate.
Multi-Touch:
Capacitive: Supports multi-touch gestures (e.g., pinch-to-zoom).
Resistive: Typically single-touch, though advanced models support limited multi-touch.
Durability:
Capacitive: Glass surfaces resist scratches but can shatter.
Resistive: Plastic layers withstand pressure but wear out over time (1–2 million touches).
Clarity:
Capacitive: High transparency for vibrant displays.
Resistive: Multiple layers reduce clarity and brightness.
Input Flexibility:
Capacitive: Limited to conductive inputs (e.g., fingers), struggles with gloves.
Resistive: Accepts any input (stylus, gloves, tools).
Cost:
Capacitive: Higher due to complex sensors and glass.
Resistive: Lower, ideal for budget-conscious applications.
Each technology has unique strengths and limitations, shaping their suitability for different applications.
Advantages:
Fast Response: Detects input in under 10 ms for seamless interaction.
Multi-Touch: Enables complex gestures, ideal for smartphones.
Clear Displays: Glass surfaces enhance visual quality.
Durability: Resists scratches and surface wear.
Disadvantages:
Glove Incompatibility: Struggles with non-conductive inputs like gloves.
Higher Cost: Complex sensors increase production expenses.
Fragility: Glass can crack under impact.
Advantages:
Versatile Input: Works with styluses, gloves, or any object.
Cost-Effective: Affordable for large-scale deployment.
Rugged: Withstands harsh environments (dust, moisture).
Deliberate Input: Pressure requirement reduces accidental touches.
Disadvantages:
Lower Sensitivity: Slower response (20–30 ms) feels less intuitive.
Wear Over Time: Plastic layers degrade after 1–2 million touches.
Reduced Clarity: Layered design dims displays.
The choice between capacitive and resistive touch screens depends on the device and environment.
Smartphones and Tablets: Power intuitive, multi-touch interfaces (e.g., iPhone, iPad).
Premium Kiosks: Deliver vibrant, responsive displays in retail or museums.
Laptops and Monitors: Enable touchpads and interactive screens.
Wearables: Support compact, gesture-driven controls in smartwatches.
Example: The iPhone’s capacitive screen allows seamless swiping and zooming, enhancing user experience.
Industrial Controls: Withstand dust and vibration in factory equipment.
Medical Devices: Support gloved operation in sterile settings (e.g., diagnostic tools).
ATMs and POS Terminals: Offer reliable input in high-traffic environments.
Handheld Devices: Used in rugged PDAs or older GPS units.
Example: A factory control panel uses a resistive screen to allow workers wearing gloves to adjust settings reliably.
A portable diagnostic tool required a touch screen for use in sterile environments. Designers chose a resistive screen to support gloved inputs and ensure reliability in humid conditions. The screen’s 100-gram actuation force minimized accidental touches, while its IP65 rating protected against disinfectants, showcasing resistive technology’s adaptability.
Selecting between capacitive and resistive touch screens depends on several factors:
Capacitive: Best for clean, controlled settings (e.g., offices, homes) where clarity and speed matter.
Resistive: Ideal for harsh conditions (e.g., factories, outdoors) with dust, moisture, or temperature extremes.
Tip: For outdoor kiosks, choose resistive screens with IP65+ ratings for weather resistance.
Capacitive: Suits multi-touch applications like gaming or design software.
Resistive: Perfect for stylus or glove use in medical or industrial settings.
Example: A tablet for graphic design needs capacitive multi-touch, while a medical monitor benefits from resistive glove compatibility.
Capacitive: Higher upfront cost but justifies premium features.
Resistive: Cost-effective for large-scale or budget-conscious projects.
Tip: For low-budget projects, resistive screens save costs without sacrificing core functionality.
Capacitive: Prioritize for consumer devices where speed and aesthetics are key.
Resistive: Choose for applications where deliberate input reduces errors.
Example: A museum exhibit uses capacitive screens for interactive, vibrant displays, while an ATM opts for resistive to ensure precise inputs.
Touch screen technology is evolving to bridge the gap between capacitive and resistive strengths:
Hybrid Screens: Combine capacitive sensitivity with resistive input versatility, supporting gloves and multi-touch.
Haptic Feedback: Add tactile vibrations to capacitive screens for a button-like feel.
Flexible Displays: Use resistive principles in bendable screens for wearables.
IoT Integration: Embed touch screens in smart home devices and industrial IoT systems.
For example, a future smartwatch might use a hybrid screen to offer multi-touch with glove compatibility, blending the best of both worlds. These advancements ensure touch screens remain central to user interfaces.
Capacitive and resistive touch screens each offer unique strengths—capacitive excels in responsiveness and clarity for consumer devices, while resistive shines in versatility and ruggedness for industrial and medical applications. By understanding their differences, you can choose the right technology for your project, balancing performance, cost, and environment.
