When an appliance starts acting erratically – perhaps it's not turning on, performing functions incorrectly, or displaying strange error codes – the control board often comes under suspicion. This electronic "brain" governs most of its operations.
To test for a bad control board, you typically start with a thorough visual inspection for obvious damage, followed by power cycling the appliance. If symptoms persist, more advanced testing with a multimeter to check for voltage outputs or continuity, combined with analyzing specific error codes and ruling out other components, can help confirm a faulty board.
I remember a washing machine that suddenly stopped mid-cycle, leaving a tub full of water. After checking the basics, my initial thought was a motor issue. However, a quick online search and a visual inspection led me to the control board. While I couldn't definitively test every circuit, identifying some burnt components on the board pointed directly to the problem. It taught me that knowing how to approach testing can save a lot of time and misdiagnosis. Let's delve into the practical steps and considerations for testing this crucial component.
Table of Contents:

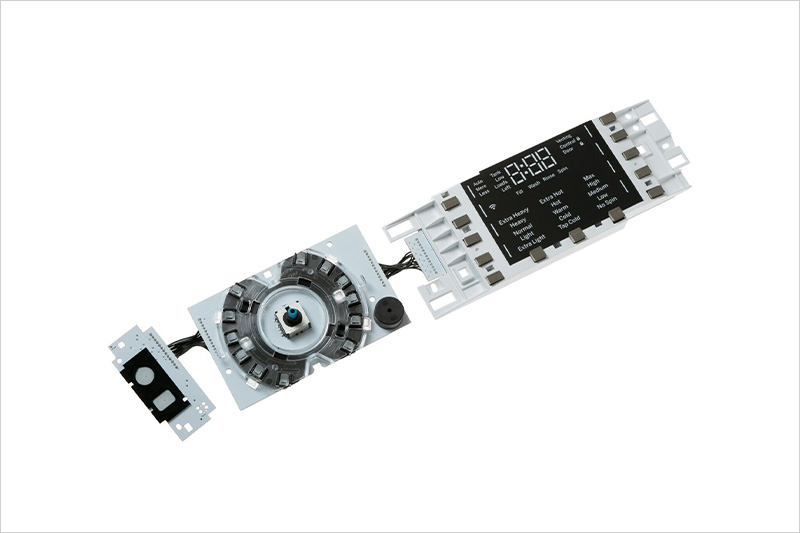

In any modern electronic appliance, from refrigerators to washing machines and ovens, the control board acts as the central processing unit, interpreting user commands, managing cycles, and coordinating various components. When an appliance malfunctions, pinpointing the exact cause can be challenging without a systematic approach.
Testing a control board is necessary to accurately diagnose complex appliance malfunctions, distinguish between a faulty control board and other failed components, and avoid unnecessary part replacements. It helps confirm if erratic behavior, unresponsive controls, or specific error codes originate from the electronic brain of the appliance.
Control boards are often expensive components. Replacing one without proper diagnosis can be a costly mistake if the actual problem lies elsewhere. Many symptoms, like a motor not spinning or water not dispensing, could be due to a failed motor or solenoid, not necessarily the board commanding it. Appliance systems operate in a chain of command: input (user, sensor) -> control board (process) -> output (actuator, motor). A fault in any link can disrupt the system. For instance, a multimeter test can verify if the control board is sending the correct voltage to an output component. If the voltage is correct but the component doesn't activate, the component is likely faulty. If there's no voltage, the board or its input is suspect.
Some appliance issues aren't as straightforward as a simple "on/off" problem. They might involve intermittent failures, partial functionality, or a cascade of seemingly unrelated symptoms.
Multi-angle Analysis: A control board often manages multiple subsystems (e.g., in a dishwasher: wash cycle, dry cycle, water heating, pump operation). If several of these subsystems fail simultaneously or show erratic behavior, it strongly points to a central control board issue, as it's the common link. However, if only one specific function fails (e.g., only the door lock, but everything else works), it might be the individual component itself or a specific circuit on the board dedicated to that function.
Before you even think about grabbing a screwdriver or a multimeter, it's crucial to take a few preliminary steps. These initial actions are vital for both your safety and for providing a clean slate for diagnosis, sometimes even resolving the issue without further testing.
Before testing a control board, always ensure the appliance is completely disconnected from its power source by unplugging it or turning off the dedicated circuit breaker. Perform a basic power cycle reset to clear temporary glitches, and visually inspect for the most obvious signs of damage or loose connections, ensuring safety is paramount.
Working with electricity can be dangerous. The most important initial step is to completely de-energize the appliance to prevent electric shock or damage to components.
Unplug the Appliance: If the power cord is accessible, firmly grasp the plug and pull it directly from the wall outlet. This is the safest and most definitive way to cut power.
Flip the Circuit Breaker: If the plug is inaccessible (e.g., for built-in appliances), go to your home's main electrical panel. Locate the circuit breaker labeled for your kitchen, laundry room, or specifically the appliance in question. Flip it to the "OFF" position. It's wise to verify that the power is indeed off by attempting to turn on the appliance or checking if its internal lights are off.
Wait for Discharge: After disconnecting power, wait at least 5-10 minutes. This allows any residual electrical charge in the control board's capacitors to fully dissipate. Capacitors act like tiny batteries, maintaining power to certain parts of the circuit even after the main power supply is removed. Waiting for this discharge prevents accidental shocks and ensures the board undergoes a complete power-down state.
Many minor electronic glitches can be resolved with a simple power cycle, much like restarting a computer. This should always be the first troubleshooting step after ensuring safety.
Process: With the power safely disconnected, wait the recommended 5-10 minutes. Then, restore power by plugging the appliance back in or flipping the circuit breaker to "ON."
Purpose: This hard reset clears the control board's volatile memory, effectively resetting any software errors, frozen states, or temporary misconfigurations. If the appliance works normally after this step, then further testing might not be needed. It could have just been a temporary software hiccup.
Once the appliance is safely de-energized, a thorough visual inspection of the control board is the next crucial step. Sometimes, the problem reveals itself clearly through physical damage, eliminating the need for complex electrical tests.
To conduct a visual inspection of a control board, carefully locate and access it within the appliance, typically by removing a back or top panel. Look for any visible signs of physical damage such as burnt or discolored components, bulging or leaking capacitors, cracked solder joints, or evidence of water damage or corrosion, as these are strong indicators of a bad board.
The location of the control board varies significantly by appliance type and model.
Typical Locations:
Refrigerators: Often located in the back, behind a thin access panel, or sometimes in a housing on top of the appliance.
Washing Machines/Dryers: Commonly found behind the main control panel (requiring removal of screws) or sometimes in the lower back of the unit.
Ovens/Ranges: Usually behind the main control console or integrated into the display assembly.
Procedure: Consult your appliance's service manual or a reliable online diagram for specific instructions on how to safely access the board. This often involves removing screws, clips, or snapping plastic covers. Take photos as you disassemble to aid reassembly.
Physical signs of damage on a control board are often clear indicators of component failure.
Burnt or Discolored Areas: Look for any dark, scorched, or discolored spots on the board, especially around components like resistors, integrated circuits (ICs), or relays. This indicates overheating due to excessive current or component failure.
Bulging or Leaking Capacitors: Capacitors are cylindrical components. Look for tops that are bulging upwards or any brown, crusty residue around their base, which indicates electrolyte leakage. A leaking or bulging capacitor has failed and needs replacement, often necessitating a new board.
Cracked Solder Joints: Examine the points where components are soldered to the board, especially larger components like relays or connectors that experience mechanical stress or heat cycles. Hairline cracks around the component leads can cause intermittent or complete loss of electrical connection. A magnifying glass can be helpful here.
Corrosion or Water Damage: Look for any greenish, whitish, or powdery residue on the board's surface, particularly near connectors or metallic traces. This is a sign of moisture exposure, which can short circuits or degrade components over time. A burning smell emanating from the board's area also suggests overheating. Components fail due to various stresses: electrical overloads (burning), thermal cycling (cracked solder), or chemical/moisture exposure (corrosion, capacitor leakage). These physical manifestations are direct evidence of a compromised electrical pathway or component breakdown.
A multimeter is an indispensable tool for diagnosing electrical circuits, including control boards. While you can't test every microchip, a multimeter can verify if the board is receiving power, sending output voltages, or if specific pathways (like fuses) have continuity.
Yes, a multimeter is invaluable for testing a control board, but it requires electrical knowledge and strict safety. You can use it to verify incoming voltage to the board, check outgoing voltage to components (like motors or solenoids), test for continuity in fuses or specific traces (with power off), and assess resistance in certain sensors, helping pinpoint if the board is failing to provide necessary power or signals.
Before suspecting the control board, you must ensure it's receiving power from the appliance's power supply.
Safety First: Only perform this test if you are competent with multimeters and working with live electricity. Keep probes isolated and avoid touching anything other than the test points.
Set Multimeter: Set your multimeter to measure AC voltage (for main input) or DC voltage (for internal board voltages, usually low voltage).
Test at Connectors: With the appliance powered ON (and safely accessible), carefully place the multimeter probes on the input terminals of the control board's power connector. Consult the appliance's wiring diagram or service manual to identify the correct input pins and the expected voltage (e.g., 120V AC, 240V AC, or a lower DC voltage from a transformer). The control board relies on a stable input voltage to operate. A lack of proper input voltage indicates a problem with the power cord, the outlet, a fuse upstream, or the appliance's main power supply, not necessarily the control board itself.
This test helps determine if the control board is successfully sending power commands to other components.
Identify Output: Locate the connectors on the control board that lead to components experiencing problems (e.g., compressor, drain pump, fan motor, heating element).
Set Multimeter: Set your multimeter to the appropriate AC or DC voltage range.
Activate Component: If possible, try to activate the component (e.g., run a cycle that should engage the drain pump, or set the temperature to engage the compressor).
Test Output: Carefully place the probes on the output terminals of the control board for that specific component. Compare the reading to the expected voltage (found in the service manual). If the control board is functioning correctly, it should output the specified voltage to activate its connected components when commanded. For example, if a washing machine's drain pump isn't working, and the control board is sending 120V AC to the pump's connector, then the pump itself is faulty, not the board. If no voltage is present, the board (or its internal relay/circuit) is likely bad.
These tests are performed with the appliance completely unplugged and de-energized.
Set Multimeter: Set your multimeter to continuity mode (beeps for connection) or resistance (Ohms, Ω) mode.
Fuses: Many control boards have small, non-replaceable fuses. Touch probes to both ends of the fuse. If the multimeter beeps (continuity) or shows near 0 Ohms, the fuse is good. No beep or an "OL" (open loop) reading indicates a blown fuse, often meaning the board needs replacement.
Relays (Coil Resistance): For relays on the board, you can sometimes test the resistance across their coil terminals. A specific (non-zero, non-infinite) resistance indicates a healthy coil. No resistance (short) or infinite resistance (open) suggests a faulty relay coil. However, this doesn't test the relay's contacts, which often fail.
Traces/Components: For experienced technicians, continuity can be checked across circuit traces or internal components, but this is highly complex and usually impractical for DIYers. Continuity confirms an uninterrupted electrical path. Resistance measurements indicate the health of components like coils or thermistors. A blown fuse on the board indicates an overcurrent event has occurred, often a symptom of a larger component failure, but it confirms the board is no longer functional.
Table: Multimeter Test Summary
Modern appliances use complex diagnostic systems, and understanding their error codes and how to access diagnostic modes can be a powerful tool in testing a control board, sometimes even more so than basic multimeter readings.
To interpret error codes and diagnostic modes, first consult your appliance's user or service manual for a list of codes and their meanings. Many appliances allow you to enter a diagnostic mode via specific button presses, which can display hidden codes or initiate component tests, providing precise information about a potential control board or component fault.
Error codes are the appliance's way of telling you what's wrong. They are displayed on the control panel, often as alphanumeric sequences (e.g., "F3 E1" on a washer, "Er FF" on a refrigerator). The control board's firmware is programmed to monitor various sensors (temperature, pressure, door switches, motor RPM) and operational parameters. If a reading falls outside the acceptable range or a component doesn't respond as expected, the board triggers and displays an error code. This code corresponds to a specific fault identified in the firmware.
Many appliances have a hidden diagnostic mode, typically accessed by pressing a specific sequence of buttons on the control panel (e.g., "Delay Start" + "Cancel" repeatedly, or a specific pattern of door openings).
Purpose: Diagnostic modes allow the user (or technician) to:
Retrieve stored error codes that might not be actively displayed.
Test individual components (e.g., cycle the drain pump, turn on the fan, engage the water valve) to see if they respond. This is invaluable for troubleshooting, as it tells you if the control board is trying to activate the component.
Recalibrate sensors or internal settings.
Procedure: The exact button sequence is unique to each brand and model. It is almost always found in the appliance's service manual, not usually the basic user manual. Online forums or repair videos specific to your model can also be good resources.
Often, symptoms that seem to point to a control board issue are, in fact, caused by a much simpler and less expensive component failure. Before condemning the control board, it's crucial to systematically rule out other common culprits.
Before replacing a control board, you should always rule out other common component failures that can mimic a faulty board. This includes checking for tripped circuit breakers, ensuring proper power supply, inspecting door switches, testing individual motors or solenoids, and verifying sensor functionality, as these are frequently the true cause of appliance malfunctions.
Sometimes, the "control board" isn't bad; it's just not getting power.
Tripped Breaker: A circuit breaker might have tripped, cutting power to the appliance. Check your home's electrical panel.
Faulty Outlet: Test the wall outlet with another appliance or a voltage tester to ensure it's providing power.
Loose Connections: Inspect the appliance's power cord and internal wiring harnesses for any loose or corroded connections that might be interrupting power to the control board or its components.
Many symptoms are caused by a single failed component that the control board is trying to operate.
Door Switches: Many appliances (washers, dryers, refrigerators, dishwashers) will not operate if a door switch is faulty or stuck open, preventing the control board from initiating a cycle. Test for continuity across the switch when the door is closed.
Motors & Pumps: If a washing machine isn't spinning, the motor or its capacitor might be bad, not the control board's command. Similarly, a drain pump might be clogged or seized. Using a multimeter to check for continuity or specific resistance values on these components can diagnose them. If the control board is sending the correct voltage to the component, but the component isn't working, the component itself is the problem.
Heating Elements: If an oven isn't heating or a dryer isn't getting hot, the heating element itself, its thermostat, or a thermal fuse could be faulty, not the main control.
Solenoids & Valves: If a refrigerator's water dispenser isn't working, the water inlet valve solenoid could be stuck or burnt out.
Sensors: A faulty temperature sensor (thermistor) can send incorrect readings to the control board, leading to cooling issues (too cold or too warm) or incorrect defrost cycles, making the board appear to be bad when it's just acting on bad data. Testing sensor resistance values (which change with temperature) against a chart is key here.
Table: Troubleshooting Steps after Reset Failure
While DIY troubleshooting can save money and provide a sense of accomplishment, there are clear situations when attempting further repairs on a control board or complex appliance becomes unsafe or impractical.
It's time to call a professional appliance technician when visual inspections and basic power cycling don't resolve the issue, especially if you lack experience with multimeters or electrical circuits. Professionals possess specialized diagnostic tools, access to service manuals, and the training to safely diagnose complex component failures, including those within the control board, ensuring a correct and safe repair.
If you've performed the initial safety steps, conducted a thorough visual inspection, executed a power cycle reset, and the appliance still malfunctions, it's often an indication that the problem is beyond simple troubleshooting.
Complex Electrical Diagnostics: Using a multimeter to test specific components or circuits on a live control board requires precise knowledge of electrical schematics and safety protocols. Incorrect testing can lead to electric shock or further damage to the appliance.
Specialized Tools and Software: Professional technicians often have access to brand-specific diagnostic tools, software, and detailed service manuals that are not readily available to the public. These tools can communicate directly with the control board, extract detailed error logs, and perform advanced calibration routines.
Refrigerant Handling: If the problem involves cooling issues in a refrigerator and seems related to the sealed refrigerant system (e.g., compressor, condenser), this absolutely requires a certified technician. Refrigerant handling requires specialized equipment and licensing due to environmental and safety regulations.
Consider the cost of potential replacement parts versus the cost of a professional service call.
Expensive Parts: Control boards can be one of the most expensive parts of an appliance. If you misdiagnose and buy the wrong part, you've wasted money.
Risk of Further Damage: Improper attempts at repair can damage other components, turning a fixable problem into a more costly or even irreparable one. A technician's expertise minimizes this risk.
Warranty: If your appliance is still under warranty, attempting a DIY repair might void it. Always check your warranty terms before starting any work.
Ultimately, your safety is paramount. If you feel uncomfortable, unsure, or out of your depth at any point during the testing process, it's always best to defer to a qualified professional.
Safety Training: Technicians are trained in appliance repair safety, including electrical hazards, mechanical risks, and proper handling of tools.
Certification and Insurance: Reputable professionals are often certified and insured, providing peace of mind that the work will be done correctly and that you are protected against any unforeseen incidents.
Testing for a bad control board requires a methodical approach, starting with crucial safety precautions. A visual inspection and power cycle are essential first steps, often revealing the issue or resolving simple glitches. When symptoms persist, a multimeter can provide invaluable diagnostic information by confirming power delivery or identifying faulty components. However, always be prepared to rule out other common component failures that can mimic a bad board. Knowing when to escalate from DIY troubleshooting to calling an expert ensures both your safety and an effective, lasting repair for your appliance.
