If your oven is malfunctioning—displaying error codes, failing to heat, or acting erratically—the problem might lie with the oven control board. Testing the control board is a critical step in diagnosing and resolving these issues. In this guide, we'll walk you through the process of testing an oven control board step-by-step, ensuring you can identify the problem and decide whether a repair or replacement is needed.
The oven control board is the central hub that manages all functions of your oven, from temperature regulation to cooking modes. When it fails, your oven may stop working entirely or behave unpredictably. Testing the control board helps you:
1. Diagnose the root cause of the problem.
2. Avoid unnecessary replacement costs.
3. Determine if a repair or replacement is necessary.
Before you begin, gather the following tools:
1. Multimeter: For testing electrical continuity and voltage.
2. Screwdrivers: To remove the control panel and access the control board.
3. Insulated Gloves: For safety when handling electrical components.
4. Oven Manual: For reference to wiring diagrams and error codes.
Safety is paramount when working with electrical appliances. Start by:
1. Unplugging the oven from the wall outlet.
2. Turning off the circuit breaker that supplies power to the oven.
To reach the control board:
1. Remove the screws securing the oven's control panel.
2. Gently pull the panel forward to expose the control board.

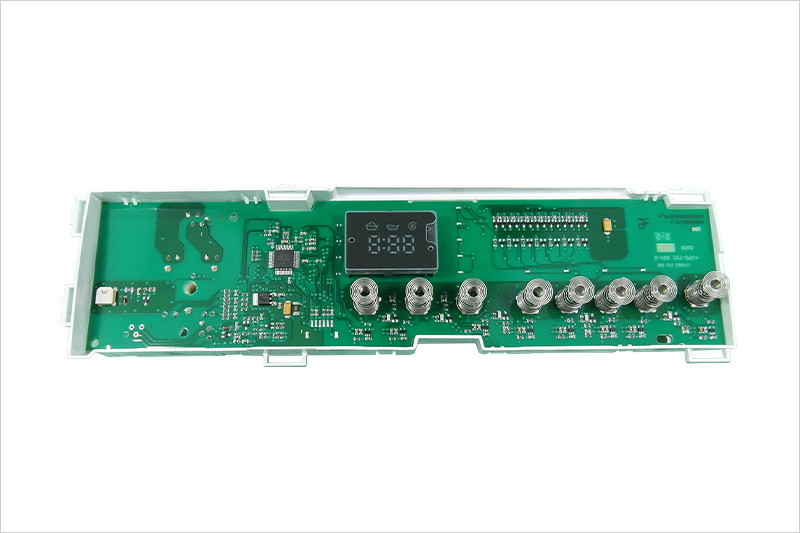

3. Locate the control board, which is typically a rectangular component with multiple wires and connectors.
Before testing, perform a visual inspection:
1. Look for burn marks, swollen capacitors, or loose wires.
2. Check for corrosion or discoloration on the board.
3. If you notice any visible damage, the control board may need to be replaced.
Using a multimeter, you can test the control board for continuity and proper voltage. Here's how:
1. Set the Multimeter: Adjust the multimeter to measure resistance (ohms) or voltage, depending on the test.
2. Test the Input Voltage:
1. Locate the power supply wires connected to the control board.
2. Place the multimeter probes on the terminals and check for the correct voltage (refer to your oven manual for specifications).
3. Test the Output Voltage:
1. Check the output terminals to ensure the control board is sending the correct voltage to other components.
4. Test for Continuity:
1. Use the multimeter to check for continuity across the control board's circuits. A lack of continuity indicates a broken circuit and a faulty control board.
1. If the Control Board Passes All Tests: The issue may lie elsewhere, such as with the temperature sensor, heating element, or wiring.
2. If the Control Board Fails Any Test: The control board is likely faulty and needs to be replaced.
1. Oven Not Heating: The control board may fail to send power to the heating elements.
2. Error Codes: Persistent error codes like F1, F2, or F5 often indicate control board issues.

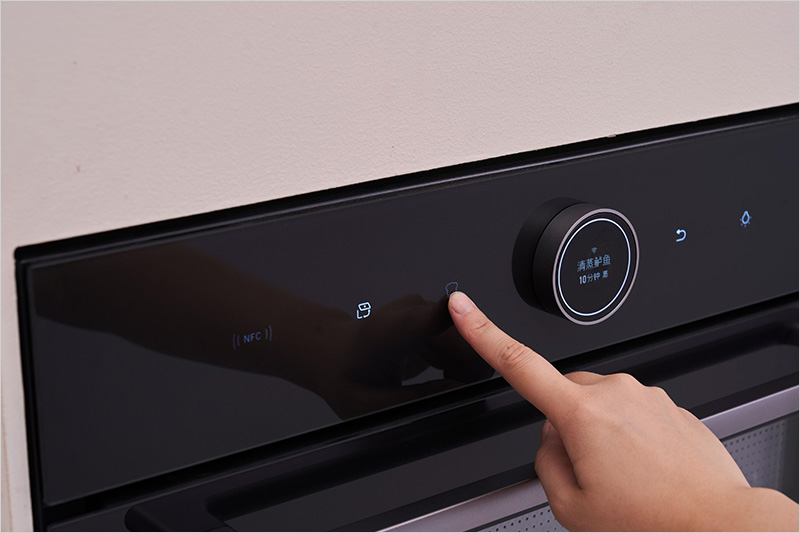

3. Unresponsive Controls: Buttons or touchpads may stop working.
4. Inconsistent Temperatures: The oven may overheat or fail to reach the set temperature.
If testing confirms that the control board is faulty, replacement is usually the best option. While some control boards can be repaired, replacement is often more cost-effective and reliable. Be sure to purchase a compatible control board for your specific oven model.
1. Avoid Power Surges: Use a surge protector to safeguard your oven from electrical fluctuations.
2. Keep the Oven Clean: Spills and grease can damage the control board over time.
3. Schedule Regular Maintenance: Have a professional inspect your oven annually to catch issues early.
Testing an oven control board is a straightforward process that can save you time and money. By following this guide, you can diagnose control board issues with confidence and decide whether a repair or replacement is needed. If you're unsure or uncomfortable working with electrical components, don't hesitate to call a professional technician.
