Rubber Keypads: Are They Right for Your Project?

When embarking on a new product development, every component choice matters, and the user interface is no exception. Among the myriad options, rubber keypads, often found in everyday devices from remote controls to industrial machinery, present a compelling solution. Rubber keypads are frequently the right choice for projects demanding durability, environmental resistance, cost-effectiveness for high volumes, and customizable tactile feedback, making them ideal for applications ranging from consumer electronics to harsh industrial or medical environments. Understanding their unique characteristics, advantages, and limitations is crucial for designers and engineers to determine if they align perfectly with a project's specific requirements.

This article will explore what defines a rubber keypad, analyze its core advantages and disadvantages, compare it to alternative technologies, and discuss common applications to help you assess if rubber keypads are the optimal solution for your next project.

Table of Contents:

1. What Defines a Rubber Keypad for Product Integration?

2. What are the Core Advantages of Choosing Rubber Keypads for a Project?

3. What Disadvantages and Limitations Do Rubber Keypads Present?

4. How Do Rubber Keypads Compare to Membrane Switches and Mechanical Keypads?

5. In Which Project Applications Do Rubber Keypads Excel?

6. What Customization Options and Design Considerations are Available for Rubber Keypads?

What Defines a Rubber Keypad for Product Integration?

A rubber keypad, typically molded from silicone rubber, serves as a tactile input device where the key's action is achieved by the compression and deformation of the rubber material itself. Its design centers around a resilient, molded elastomer sheet that often incorporates conductive elements on the underside of each key area.

A rubber keypad is defined by its construction using a molded silicone rubber sheet that forms the key's body and provides tactile feedback through its inherent elasticity. Upon pressing, a conductive element on the underside of the rubber keypad makes contact with a circuit board, completing an electrical circuit to register the input. Unlike systems with discrete switches, the rubber component itself acts as the spring and often the keycap, simplifying assembly and offering unique environmental sealing properties.

What are the Core Advantages of Choosing Rubber Keypads for a Project?

Choosing rubber keypads for a project offers several compelling advantages, particularly regarding durability, environmental resistance, and user experience, making them suitable for a diverse range of applications.

Rubber keypads offer significant advantages including excellent tactile feedback, inherent resistance to dust, water, and chemicals, and superior durability against impacts and vibrations. They are also cost-effective for high-volume production, provide quiet operation, and allow for extensive design customization in terms of shape, color, and backlighting.

Here's a breakdown of their key benefits:

• Exceptional Environmental Resistance:

• Water and Dust Resistance: Silicone is non-porous and can form a sealed barrier over underlying electronics, achieving high IP ratings (e.g., IP67, IP68) against liquid splashes, spills, and dust ingress.

• Chemical Compatibility: They can be formulated to resist various chemicals, oils, and solvents, crucial for industrial and medical settings.

• Temperature Versatility: Silicone maintains its properties across a wide temperature range, typically from -55°C to 200°C (-67°F to 392°F), making them suitable for extreme operating conditions.

• UV Resistance: Certain formulations offer excellent resistance to UV radiation, preventing degradation when exposed to sunlight.

• Superior Durability and Reliability:

• Impact and Vibration Resistance: The inherent elasticity of silicone absorbs shocks and vibrations, protecting internal circuitry and ensuring long-term performance in rugged environments.

• High Actuation Cycles: Well-designed rubber keypads can withstand millions of key presses without significant degradation of tactile feel or function.

• Customizable Tactile Feedback: The "snap ratio" (the ratio of actuation force to release force) can be precisely engineered by altering the dome's shape, webbing design, and silicone hardness. This allows for soft, responsive touches or firm, deliberate presses.

• Cost-Effectiveness for Volume Production: While tooling costs for molds can be higher initially, the unit cost for large production runs is generally lower than discrete switch assemblies, leading to overall savings.

• Ergonomic and Aesthetic Flexibility:

• Customizable Shapes and Sizes: Silicone can be molded into virtually any shape, allowing for highly ergonomic designs and unique product aesthetics.

• Color Integration: Multiple colors can be molded together (co-molding) or spray-painted/silk-screened, offering extensive visual branding options.

• Backlighting and Legends: Translucent silicone can be combined with laser etching or light guides for effective backlighting, illuminating legends and symbols for low-light visibility.

• Quiet Operation: The soft, compressible nature of silicone naturally dampens keypress sounds, making rubber keypads ideal for noise-sensitive environments like medical facilities or quiet offices.

What Disadvantages and Limitations Do Rubber Keypads Present?

While highly advantageous, rubber keypads do come with certain disadvantages and limitations that project managers must consider to ensure they are indeed the right fit. These often relate to their tactile consistency over time, visual wear, and design constraints.

Rubber keypads, despite their benefits, can suffer from dome fatigue, leading to a "mushy" feel and inconsistent tactile feedback over extended use. They can also be prone to cosmetic wear like legend abrasion, may require higher tooling costs for low-volume projects, and typically offer less precise key travel compared to mechanical switches.

Here are the primary disadvantages:

• Dome Fatigue (Tactile Degradation): Over very long periods of heavy use, the silicone rubber domes can lose their elasticity. This results in a "mushy" feeling, reduced tactile feedback, and inconsistent actuation force, which can impact user experience.

• Potential for Inconsistent Feel: Despite advanced manufacturing, slight variations in the molding process or silicone batch can lead to subtle differences in the feel of individual keys on the same keypad, though this is often imperceptible to casual users.

• Cosmetic Wear: Printed legends or coatings on the keycaps can wear off over time with frequent use, especially in harsh environments, making the keypad unreadable. While laser etching offers better durability, it's not immune to extreme abrasion.

• Higher Initial Tooling Costs: The upfront investment in precision molds for silicone rubber keypads can be substantial. This makes them less economical for very low-volume production runs where the tooling cost cannot be amortized over many units.

• Limited Key Travel Precision: Compared to mechanical switches, which offer very precise and consistent key travel, rubber dome keypads can have slightly less defined travel distances, though this is often mitigated by good design.

• Less "Premium" Feel (Perception): In some consumer electronics, particularly high-end mechanical keyboards, rubber dome technology is perceived as less "premium" due to its prevalence in cheaper devices, despite its technical merits.

How Do Rubber Keypads Compare to Membrane Switches and Mechanical Keypads?

Understanding how rubber keypads stack up against other common input technologies—membrane switches and mechanical keypads—is crucial for selecting the optimal solution for a specific project. Each offers a unique balance of cost, tactile feedback, and environmental resistance.

Rubber keypads offer superior tactile feedback and environmental sealing compared to flat membrane switches, while being more cost-effective and quieter than mechanical keypads. Membrane switches excel in thinness and low cost for simple interfaces, whereas mechanical keypads provide unparalleled tactile consistency, durability, and customization for high-performance applications.

Here's a comparative overview:

In Which Project Applications Do Rubber Keypads Excel?

Rubber keypads excel in a broad spectrum of project applications where their unique blend of durability, environmental resistance, tactile feel, and cost-effectiveness makes them the optimal choice. Their versatility allows them to serve diverse industries.

Rubber keypads are exceptionally well-suited for projects in demanding environments, including industrial machinery, medical devices, and outdoor equipment, due to their superior resistance to water, dust, and chemicals. They are also ideal for high-volume consumer electronics like remote controls and calculators where cost-effectiveness and tactile feedback are critical for user satisfaction.

Specific applications where rubber keypads commonly excel include:

• Industrial Controls:

• Factory Automation: Control panels for machinery, robotics, and assembly lines where resistance to dust, oil, and vibrations is essential.

• Heavy Equipment: Keypads for construction vehicles, agricultural machinery, and marine equipment needing robust, weather-resistant interfaces.

• Medical Devices:

• Patient Monitoring Systems: Devices in hospitals and clinics requiring easy-to-clean, sterile, and fluid-resistant surfaces.

• Diagnostic Equipment: Interfaces for laboratory instruments where chemical resistance and reliability are paramount.

• Consumer Electronics:

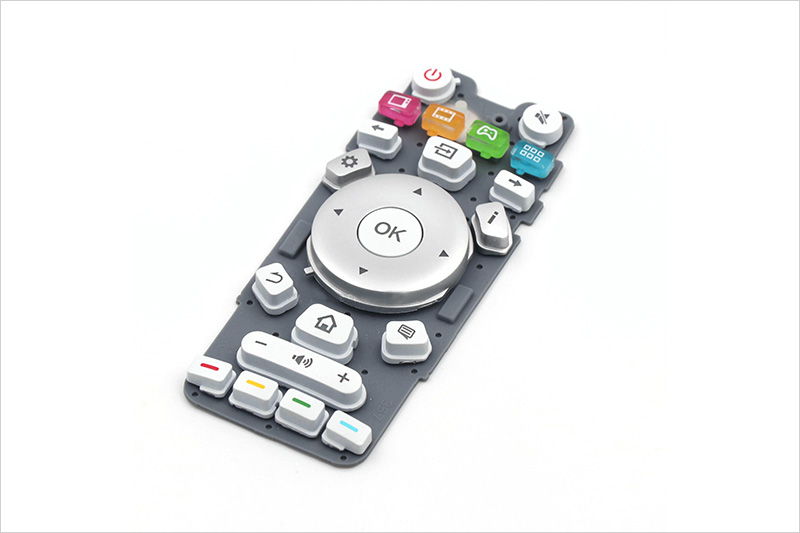

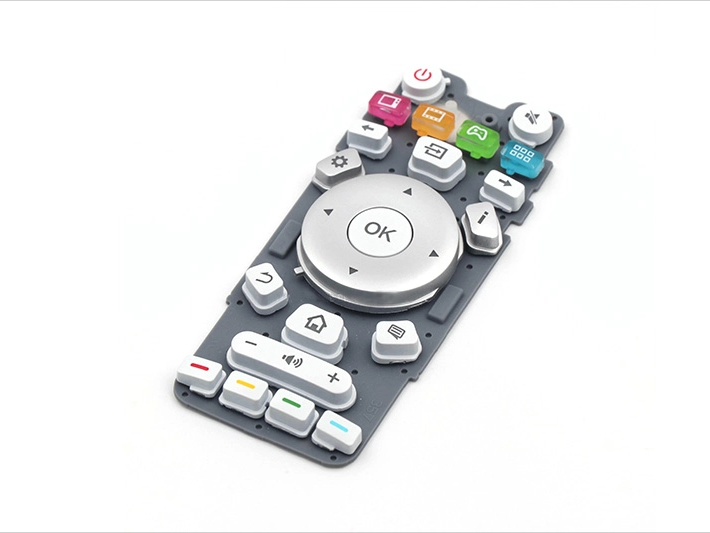

• Remote Controls: Televisions, home theater systems, and gaming consoles benefit from their low cost, good tactile feel, and durability against drops and spills.

• Calculators and POS Terminals: High-usage devices requiring reliable, tactile input for repetitive actions.

• Home Appliances: Interfaces for microwaves, ovens, washing machines, and dishwashers, leveraging their moisture resistance.

• Outdoor and Portable Devices:

• GPS Devices and Handheld Radios: Rugged, weatherproof keypads for navigation and communication in challenging outdoor conditions.

• Flexible and Roll-Up Keyboards: Portable computing accessories that require durability and compact storage.

• Automotive:

• Dashboard Controls: Buttons for climate control, infotainment, and steering wheel functions, valuing their tactile feel, durability, and ability to withstand temperature extremes.

• Security Systems: Keypads for access control systems, alarms, and intercoms, where weather resistance and reliability are critical.

What Customization Options and Design Considerations are Available for Rubber Keypads?

Rubber keypads offer extensive customization options, allowing designers to tailor their aesthetics, tactile feel, and functionality to precise project requirements. Careful design considerations are crucial to maximize performance and longevity.

Rubber keypads provide significant customization in shape, size, color, and key legends, with options for backlighting and specialized coatings. Key design considerations include optimizing the rubber dome's geometry for specific tactile feedback, ensuring proper integration with the underlying PCB, and selecting appropriate surface finishes for durability and aesthetics.

Here are key customization options and design considerations:

• Aesthetic and Visual Customization:

• Shapes and 3D Designs: Silicone can be molded into virtually any shape, allowing for concave, convex, multi-level, or irregularly shaped keys and overall keypad designs.

• Coloring: Colors can be achieved through pigmenting the silicone itself, co-molding multiple colors, or applying spray paints and silkscreen inks.

• Key Legends and Graphics:

• Silkscreen Printing: Cost-effective for applying legends, logos, and graphics. Can be coated for wear resistance.

• Laser Etching: Creates highly durable, sharp legends by removing a top color layer to reveal a contrasting color or translucent base, ideal for backlighting.

• Molded-in Legends: Legends are formed during the molding process, offering the highest durability as they cannot wear off.

• Backlighting Integration:

• Translucent Silicone: Keypads can be molded from translucent silicone, allowing light from LEDs on the PCB to shine through.

• Light Guides: Molded light pipes within the silicone ensure uniform illumination of legends or icons.

• "Deadfront" or "Ghost" Effects: Legends are invisible until illuminated, creating a sleek, modern look.

• Tactile and Functional Customization:

• Tactile Feedback (Snap Ratio/Force): Achieved by adjusting:

• Dome Geometry: Cone, bell, flat, or custom shapes.

• Webbing Design: The surrounding silicone structure supporting the dome.

• Silicone Hardness (Durometer): Softer silicone for lighter presses, harder for firmer.

• Key Travel: The distance a key travels can be customized by dome height and design.

• Conductive Contact Material: Carbon pills are standard, but gold pills can be used for ultra-low resistance and higher reliability in critical applications.

• Surface Finishes and Coatings:

• Matte, Glossy, or Textured Finishes: Affect feel and appearance.

• PU (Polyurethane) or Silicone Coatings: Applied over printed legends to enhance abrasion resistance, chemical resistance, and provide a desired tactile feel (e.g., smooth or non-tacky).

• Integration with Electronics:

• PCBs or Flexible Circuits: The keypad must align perfectly with the underlying circuitry.

• Attachment Methods: Keypads can be secured via adhesives, screws, or compression within the device's housing.

• Connecting Tail Length and Flexibility: Ensuring the electrical connection tail can reach and bend without stress.

Table: Common Customization & Effects

Conclusion: Are Rubber Keypads Right for Your Project?

In conclusion, rubber keypads, specifically those crafted from silicone, stand out as a highly versatile and robust solution for human-machine interfaces. Their manufacturing process, centered on precision molding and conductive integration, yields components that offer excellent tactile feedback, inherent resistance to harsh environments, and significant cost-effectiveness for high-volume production. While considerations like dome fatigue and initial tooling costs exist, their strengths in durability, customization, and environmental sealing make them an ideal choice for projects spanning consumer electronics, demanding industrial applications, and critical medical devices. Ultimately, if your project prioritizes a balance of reliability, customizable feel, and resilience against physical or environmental stresses, rubber keypads are very likely the right fit.
