Picture tapping your microwave’s sleek panel to start cooking—no buttons, just a smooth, instant response. This is the power of capacitive touch switches, a technology transforming user interfaces in smartphones, appliances, and industrial systems. But what makes these switches so special, and how do they work?
In this guide, we’ll explore capacitive touch switches in depth, covering their definition, mechanics, applications, benefits, and challenges. Whether you’re an engineer designing cutting-edge devices, a hobbyist curious about touch tech, or a consumer wanting to understand your gadgets, this article offers clear, actionable insights to enhance your knowledge.
A capacitive touch switch is an electronic switch that detects touch or proximity by sensing changes in capacitance—the ability to store an electric charge. Unlike mechanical switches that require physical pressure to operate, capacitive switches rely on the body’s electrical properties. When your finger nears the switch, it disrupts an electric field, triggering an action like turning on a device or navigating a menu.
The switch typically includes a conductive layer, often indium tin oxide, beneath an insulating surface like glass or plastic, forming a capacitor. A graphic overlay may add visual indicators, and a backer provides support. This design eliminates moving parts, making capacitive switches durable, sleek, and ideal for modern interfaces in consumer electronics, medical devices, and beyond.
At its core, a capacitive touch switch operates on capacitance, measured in picoFarads (pF), which reflects an object’s ability to hold an electric charge. Think of it as a tiny reservoir for electrical energy. Here’s how it functions:
The switch’s sensor, typically a conductive electrode, generates a stable electric field that extends through the insulating surface. When a conductive object, such as a finger, approaches, it alters the field, causing a capacitance change of 1–10 pF. A controller detects this shift in under 10 milliseconds, translating it into a command, all while consuming minimal power, often less than 100 microWatts.
Field Creation: The sensor establishes a low-power electric field.
Touch Disruption: A finger enters the field, reducing capacitance.
Signal Processing: The controller registers the change and interprets it.
Action Execution: The device responds, such as dimming a light or opening an app.
This rapid, reliable process ensures seamless user experiences, with no mechanical wear to compromise longevity.
Capacitive touch switches vary to suit different needs. Here are the primary types:
Surface Capacitance: Features a single conductive layer for simple touch detection. Cost-effective and used in basic devices like touch lamps, it supports only one touch point.

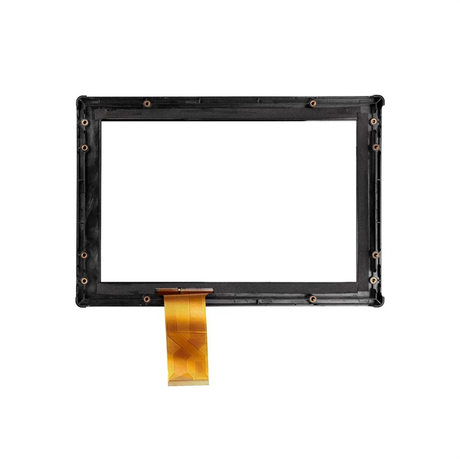

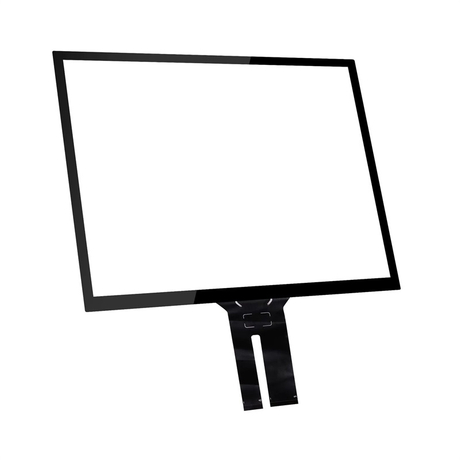

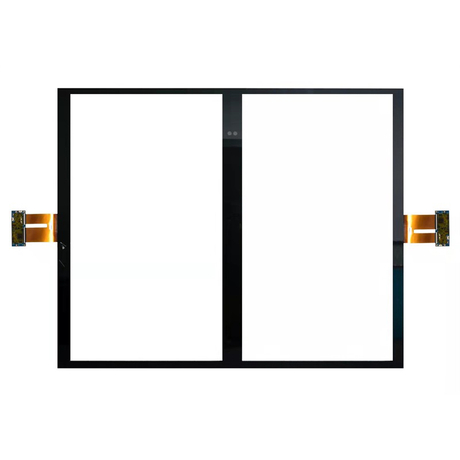

Projected Capacitance: Uses a grid of electrodes for multi-touch and precise detection, common in smartphones and tablets. It includes:
Self-Capacitance: Electrodes work independently, detecting single or multi-touch but less accurately for complex gestures.
Mutual Capacitance: Electrodes form a grid where intersections pinpoint touch, enabling precise gestures like pinch-to-zoom.
Proximity-Sensing Variants: Detect objects without contact, ideal for touchless interfaces in hygiene-sensitive settings like medical equipment.
Each type offers trade-offs in cost, sensitivity, and functionality, allowing designers to tailor solutions to specific applications.
Capacitive touch switches power intuitive interfaces across diverse sectors. Here’s where they excel:
Smartphones and Tablets: Enable smooth swiping and multi-touch gestures.
Laptops: Drive responsive touchpads and capacitive buttons.
Wearables: Support compact, user-friendly controls in smartwatches.
Microwaves and Ovens: Replace traditional buttons with sleek touch panels.
Refrigerators: Offer touch controls for settings like temperature.
Touch-Sensitive Lamps: Adjust brightness with a single tap.
Control Panels: IP67-rated switches endure dust and moisture in factories.
Kiosks and ATMs: Provide durable, public-facing interfaces.
Interactive Displays: Engage users in museums or retail settings.
Monitors and Pumps: Facilitate sterile, touch-based operation to minimize contamination.
Diagnostic Tools: Ensure reliable interfaces for critical functions.
Dashboards: Power touch controls for infotainment and climate systems.
Keyless Entry: Detect proximity for secure, button-free access.

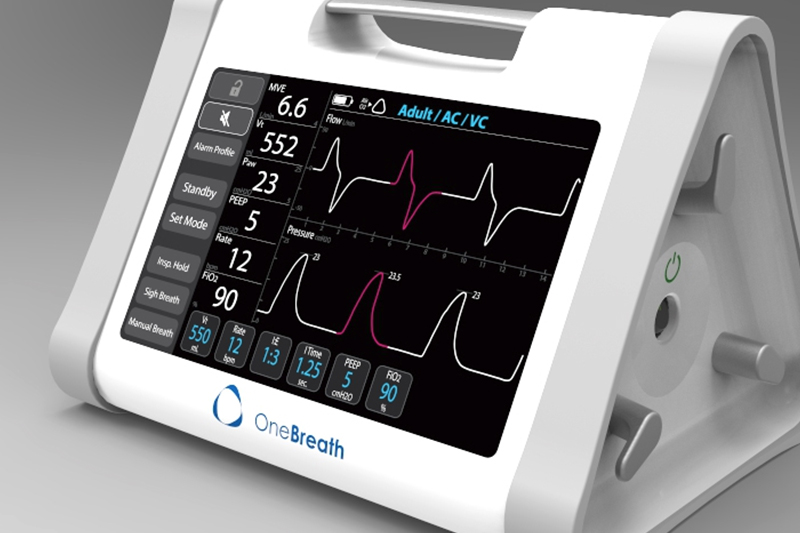

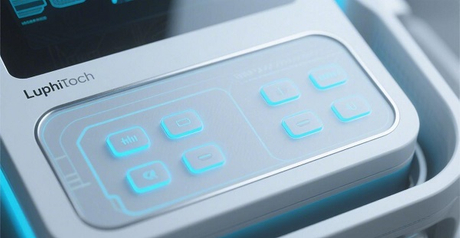

In a medical ventilator, a capacitive touch panel allows clinicians to adjust settings without physical buttons, reducing contamination risks. The IP68-rated switch resists disinfectants and ensures consistent performance, highlighting the technology’s reliability in critical environments.
Capacitive touch switches are favored for their unique benefits:
Durability: No moving parts, lasting millions of cycles compared to mechanical switches’ ~100,000 cycles.
Aesthetics: Flat, seamless surfaces create sleek, modern designs.
Ease of Cleaning: Sealed surfaces resist dust, liquids, and bacteria, ideal for medical and kitchen applications.
Customization: Flexible layouts support backlighting, icons, or curved surfaces.
Environmental Resistance: IP67/IP68 ratings ensure functionality in harsh conditions.
Responsiveness: Detect light touches or proximity in under 10 ms for intuitive use.
These advantages make capacitive switches a top choice for both consumer and industrial applications, balancing style and performance.
Despite their strengths, capacitive touch switches face challenges. Here’s how they’re addressed:
False Triggers: Humidity or stray capacitance can cause unintended activation.
Solution: Auto-calibration algorithms dynamically adjust sensitivity.
Glove Incompatibility: Standard switches may not detect gloved hands.
Solution: High-sensitivity designs or glove-compatible algorithms ensure functionality.
Higher Costs: More expensive than mechanical switches due to sensor complexity.
Solution: Simplified designs and economies of scale lower costs over time.
Interference: Electromagnetic noise can disrupt performance.
Solution: Shielded circuits and robust controllers reduce interference.
For example, an IP68-rated switch in a humid factory uses auto-calibration to prevent false triggers, ensuring reliable operation.
Capacitive touch switches stand out against alternatives. Here’s how they compare:
Operation: Physical movement closes a circuit.
Pros: Tactile feedback, low cost.
Cons: Wear out after ~100,000 cycles, bulky design.
Use Case: Basic appliances, budget devices.
Operation: Pressure connects two conductive layers.
Pros: Works with any object (e.g., stylus), low cost.
Cons: Less sensitive, wears out after ~1 million cycles.
Use Case: Older touchscreens, low-end kiosks.
Operation: Pressure generates voltage to trigger action.
Pros: Extremely durable, ideal for extreme environments.
Cons: High cost, niche applications.
Use Case: Marine equipment, hazardous settings.
Capacitive switches offer a compelling mix of durability, style, and responsiveness.
Capacitive touch technology is evolving to meet modern demands. Emerging trends include:
Multi-Touch Precision: Enhanced electrode grids for complex gestures in gaming or design tools.
Haptic Feedback: Vibrations mimic button presses for tactile experiences.
IoT Integration: Switches in smart homes control lights or thermostats via apps.
Wearable Innovation: Ultra-thin switches for fitness trackers and medical patches.
For instance, a smart thermostat might use a capacitive touch switch to adjust temperature, paired with voice control for seamless operation. These advancements ensure capacitive switches remain integral to user interface design.
Capacitive touch switches redefine how we interact with technology, offering durable, responsive, and stylish interfaces. By sensing capacitance changes, they power everything from smartphones to medical devices, balancing aesthetics with functionality. While challenges like false triggers exist, advanced designs and calibration techniques make them versatile for diverse applications.
When selecting a capacitive touch switch, consider your project’s needs—durability for industrial use, multi-touch for consumer devices, or IP ratings for harsh environments. For customized solutions, Luphi Electronics provides high-performance capacitive touch switches tailored for industries like medical, industrial, and appliances. With over 15 years of expertise and ISO certifications (ISO9001, ISO13485), Luphi delivers IP67/IP68-rated designs that enhance reliability and user experience. Contact us at +86-134-3741-0111 or jasony@luphitouch.com to elevate your next project.
