If you've ever wondered how membrane switches connect to electronic devices, the answer often lies in ZIF connectors. ZIF (Zero Insertion Force) connectors are a critical component in membrane switch design, enabling reliable and efficient electrical connections. In this article, we'll explore what ZIF connectors are, how they work, and why they're essential for modern membrane switch technology.

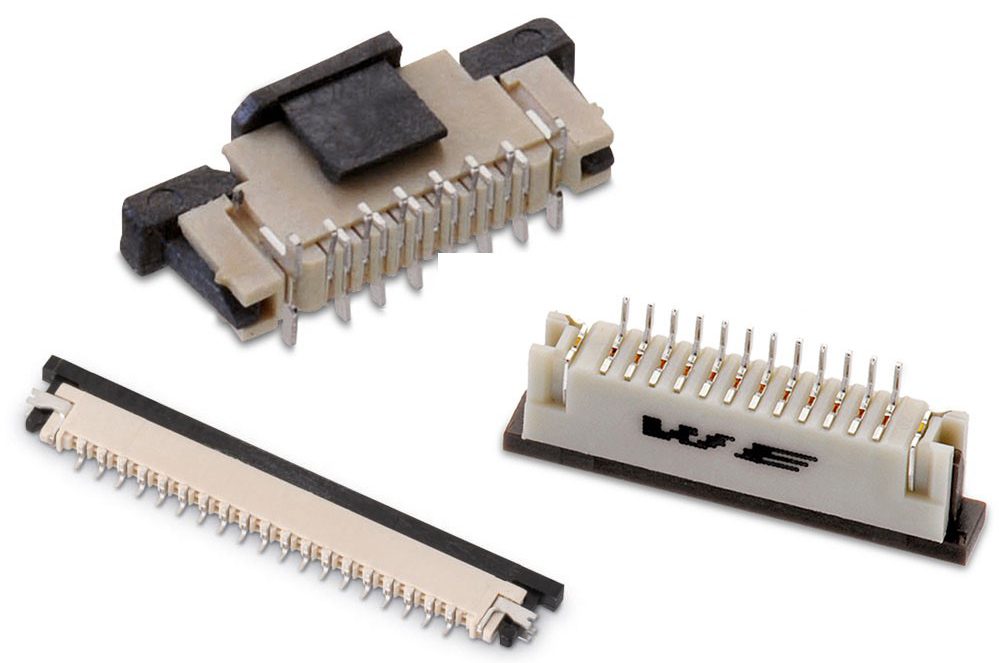

ZIF connectors, or Zero Insertion Force connectors, are specialized electrical connectors designed to make it easy to connect and disconnect flexible circuits, such as those found in membrane switches. Unlike traditional connectors that require force to insert or remove cables, ZIF connectors use a mechanism that eliminates the need for pressure, reducing the risk of damage to delicate components.
ZIF connectors feature a unique locking mechanism that holds the flexible circuit in place without applying pressure. Here's how they work:
1. Open the Connector: A small lever or latch is lifted to open the connector.
2. Insert the Circuit: The flexible circuit (often a ribbon cable) is placed into the connector.
3. Close the Connector: The lever or latch is closed, securing the circuit in place and creating a reliable electrical connection.
This design ensures a secure connection while minimizing wear and tear on the circuit and connector.

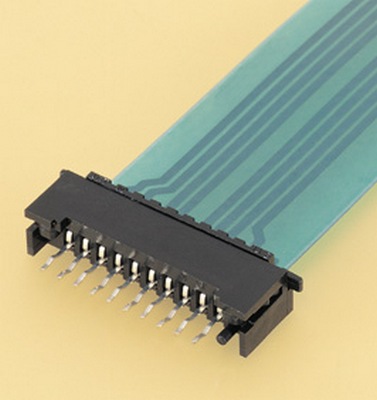

Membrane switches are widely used in industries like medical devices, consumer electronics, and industrial controls. ZIF connectors are ideal for these applications because:
1. Durability: They reduce the risk of damage to the flexible circuit during installation or removal.
2. Space Efficiency: ZIF connectors are compact, making them perfect for devices with limited space.
3. Ease of Use: The zero insertion force mechanism simplifies assembly and maintenance.
4. Reliability: They provide a stable and consistent electrical connection, even in demanding environments.
1. Low Profile: Designed to fit into slim devices.
2. High Density: Supports multiple connections in a small area.
3. Secure Locking Mechanism: Ensures the circuit stays in place during use.
4. Wide Compatibility: Works with various flexible circuit materials and thicknesses.
ZIF connectors are commonly used in:
1. Medical Devices: Such as diagnostic equipment and patient monitors.
2. Consumer Electronics: Including remote controls, calculators, and gaming devices.
3. Industrial Controls: Like control panels and machinery interfaces.
4. Automotive Systems: For dashboard controls and infotainment systems.
1. Reduced Assembly Time: The zero insertion force mechanism speeds up production.
2. Improved Reliability: Fewer connection issues compared to traditional connectors.
3. Cost-Effective: Lower risk of damage reduces repair and replacement costs.
4. Versatility: Compatible with a wide range of devices and applications.
When selecting a ZIF connector, consider the following factors:
1. Circuit Thickness: Ensure the connector matches the thickness of your flexible circuit.
2. Pin Count: Choose a connector with the appropriate number of pins for your application.
3. Operating Environment: Select a connector rated for the temperature, humidity, and vibration levels of your device.
4. Manufacturer Quality: Opt for connectors from reputable manufacturers to ensure reliability.
While ZIF connectors are highly reliable, they can occasionally encounter issues:
1. Loose Connections: Ensure the lever or latch is fully closed.
2. Misaligned Circuits: Double-check the alignment before closing the connector.
3. Wear and Tear: Replace connectors that show signs of damage or wear.
ZIF connectors play a vital role in the functionality and reliability of membrane switches. Their unique design simplifies assembly, reduces the risk of damage, and ensures a stable electrical connection. Whether you're designing a medical device, consumer electronics, or industrial control panel, understanding ZIF connectors can help you create better, more reliable products.
