A clear, intuitive control interface helps users operate equipment confidently in changing light conditions. Backlit membrane switches combine a slim, customizable control surface with illumination behind selected legends, symbols, or key areas. They help users identify controls without a bulky keypad or separate lighting hardware.
When designing membrane switches for OEM products, teams must balance visual clarity, tactile response, electrical integration, environmental protection, and target cost. This guide covers how illuminated membrane switches work, lighting options, and key specifications.

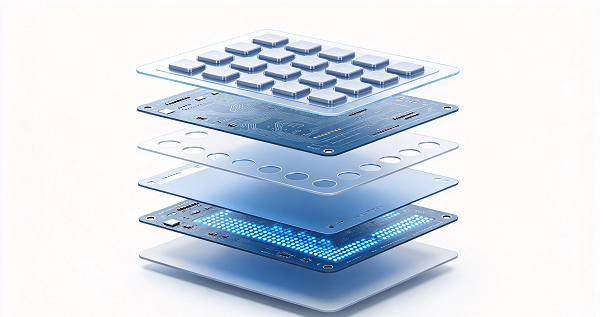

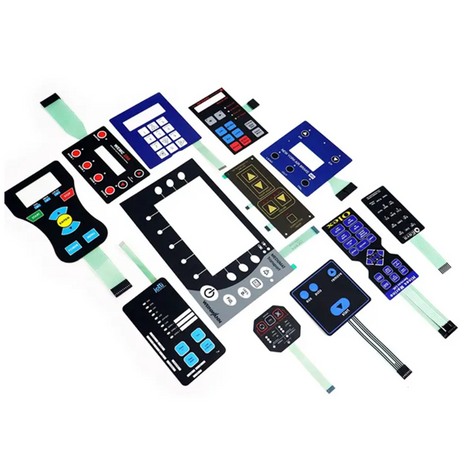

A backlit membrane switch is a low-profile human-machine interface (HMI) that combines a printed graphic overlay, flexible switching circuitry, spacing and adhesive layers, and a lighting system. Optional features include tactile domes, a rigid backing plate, display windows, and connector tails.
Pressing a key closes the circuit and sends an input to the host device. The backlight keeps selected icons or labels visible in dim conditions, whether on individual keys, status indicators, or larger panel areas.
Improved visibility: Illuminated symbols can be easier to find in low-light workspaces, vehicles, equipment rooms, and other dim environments.
Compact integration: Switching, printed graphics, and lighting can be combined in a low-profile assembly.
Custom interface design: Button shapes, legends, colors, windows, textures, and illumination zones can be tailored to the product’s industrial design.
Clear operating feedback: Separate colors or illuminated indicators can help distinguish functions and equipment status when the electrical design supports them.
Front-panel protection: Suitable overlays, adhesives, and sealing features can support resistance to dust, moisture, and cleaning agents. The final protection level depends on the full assembly and must be validated for the intended environment.
Illumination does not replace good ergonomics: key spacing, contrast, symbol size, viewing angle, tactile feedback, and ambient light all matter.
Choosing backlighting for membrane switches depends on panel size, brightness, uniformity, power budget, available space, and cost. Discuss these constraints early because they influence the circuit layout and mechanical stack.
Lighting option | Typical strengths | Design points to check |
|---|---|---|
Discrete LEDs | Direct, efficient illumination for selected keys or status indicators; flexible color choices | LED placement, visible hotspots, local brightness, and light leakage |
LEDs with a light guide film (LGF) | Thin construction and more even illumination across multiple legends or a wider area | Light-guide layout, diffuser layers, brightness uniformity, and edge losses |
Electroluminescent (EL) panel | Broad, thin-area illumination | Required drive electronics, brightness expectations, color options, and long-term performance |
Fiber-optic lighting | Can distribute light from a remote source and help when heat or electrical components need to be kept away from the illuminated area | Routing, bend limits, source placement, assembly complexity, and cost |
LEDs are a practical starting point for many compact panels. A light guide can improve uniformity across multiple icons, while EL or fiber-optic designs may suit more specialized constraints. Select the option against product requirements, not trends.
For membrane switches, the graphic overlay is both the visible face of the interface and a functional part of the assembly. Polyester (PET) and polycarbonate (PC) are common options; selection depends on the required flexibility, surface finish, chemical exposure, printing approach, and forming needs. The manufacturer should review the actual use environment before recommending a material.
Graphic design controls the light effect. Translucent ink windows illuminate selected legends, while opaque areas reduce light bleed. A “dead-front” design can hide symbols when the light is off. Diffusers and light-blocking layers can reduce hotspots and improve consistency.
If tactile response matters, specify metal domes, polymer domes, or non-tactile construction. Also define actuation feel, overlay texture, expected press cycles, connector type, tail position, and mounting method to reduce prototype revisions.
Backlit membrane switches suit products that need clear controls in changing light, including:
Industrial automation: machine controls, test equipment, and operator panels.
Medical and laboratory equipment: instrument controls where symbols must be easy to identify during use.
Home appliances: premium appliances and equipment with illuminated functions.
Instrumentation: measurement devices, meters, and portable diagnostic equipment.
Transportation and outdoor equipment: control surfaces designed for changing ambient light, provided the complete assembly is engineered and tested for the operating environment.
A clear brief for membrane switches gives the engineering team enough information to evaluate fit, lighting, and manufacturability. Use this checklist when preparing a brief.
Specification | Information to provide |
|---|---|
Application and environment | Equipment type, indoor/outdoor use, temperature range, moisture, dust, chemicals, and cleaning method |
Graphic and illumination | Artwork, legend locations, required colors, illuminated zones, brightness preferences, and whether icons should be hidden when off |
Electrical interface | Supply voltage, signal or matrix requirements, connector, pinout, and host PCB details if available |
Mechanical design | Overall dimensions, mounting area, backing plate, key layout, tactile preference, and available stack height |
Performance and verification | Expected actuation life, cleaning or environmental tests, protection target, and any industry-specific requirements |
If an IP rating is required, define the target for the complete installed interface and agree on the test conditions. The IEC 60529 IP Code standard describes protection classifications for enclosures; an individual switch should not be assumed to meet a particular rating without appropriate design and validation.
For medical-device projects, quality and regulatory expectations should be discussed with the device manufacturer. The ISO 13485 overview explains the quality-management framework specific to medical-device organizations; it does not by itself establish that a component or finished product is compliant.
LuphiTouch supplies custom membrane switches, user-interface components, and control panels for applications including home appliances, medical devices, industrial control, and instrumentation. Its membrane switch capabilities can support custom graphics, circuit configurations, tactile features, and integration needs according to project requirements.
When planning a new interface, share your drawings, quantity forecast, operating environment, lighting preferences, and target cost early. The team can review the design requirements and discuss a suitable custom approach. Explore LuphiTouch membrane switches or read more about custom backlit membrane switch design options.
Ready to discuss a custom illuminated interface? Contact LuphiTouch about membrane switches to share your project specifications and request a quote.
A standard membrane switch provides a low-profile electrical input interface. A backlit version adds a lighting system so selected icons, labels, or key areas can be seen more clearly in low-light conditions.
There is no single best method for every design. Discrete LEDs can suit individual keys or indicators; LED and light-guide combinations can improve illumination across a wider area; EL and fiber-optic options may suit more specialized constraints. Brightness, uniformity, thickness, power, service life, and cost should guide the decision.
Yes, selective illumination is possible when the printed overlay, light-blocking layers, and lighting layout are designed together. Prototype testing helps confirm that unwanted light does not bleed into adjacent areas.
Not automatically. Resistance to water or dust depends on the overlay, adhesives, seals, connector area, housing, installation, and test method. Specify the intended environment and validate the complete assembly before claiming a protection rating.
Provide a drawing or sample if available, dimensions, artwork, key count, lighting zones and colors, electrical requirements, mounting details, quantity, and operating conditions. Early specification helps the manufacturer recommend a practical design and reduce avoidable redesigns.
