Backlit membrane switches carry two visual responsibilities at once: they must communicate clearly when illumination is on, and their printed graphics still need to look deliberate when the light is off. A graphic that looks correct on a computer screen or paper proof can change noticeably once light passes through the overlay.
For that reason, color approval should be treated as an optical design task, not simply a print check. A repeatable process connects the artwork file, transparent and opaque layers, light source, sample review, and production inspection.

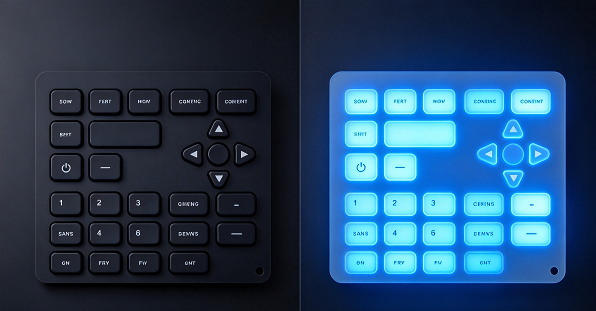

An illuminated control panel is viewed under different conditions. When the LEDs are off, users see reflected ambient light. When they are on, light travels through selected layers and printed areas. If brightness can be adjusted, a third state may need approval. Each state can change the perceived contrast between legends, background colors, and surrounding surfaces.
For backlit membrane switches, define the visual states before releasing artwork. A single front-lit proof cannot show how translucent inks, masking, and emitted light will interact.
Review state | Common visual risk | Approval question |
|---|---|---|
Backlight off | Legends or colors look too faint | Can users still identify the key information? |
Backlight on at normal setting | Brand colors shift or windows look uneven | Are legends and backgrounds visually balanced? |
Minimum brightness, if adjustable | Important symbols lose contrast | Does the interface remain readable? |
Viewed beside the product display | Keypad and screen feel mismatched | Is the overall control panel visually coherent? |
Artwork files should do more than show where text and symbols belong. They need to distinguish printed colors, transparent windows, opaque masks, white backing layers, and areas where light should not pass. Use clearly named layers and include dimensions, revision numbers, and notes on any critical optical feature.
Because membrane switches combine printed graphics with a functional control surface, file structure and revision labels need to be unambiguous. Where a color reference is important, identify the intended reference system and the conditions under which the color should be assessed. A screen preview is not a reliable final color target because displays emit light, while printed overlays reflect or transmit light through different materials. Likewise, a paper print may help assess layout and typography but cannot reproduce the final illuminated appearance.
Provide vector artwork where practical, and specify the intended appearance of important icons in both illuminated and unilluminated states.
In an illuminated panel, the visible result depends on both the printed graphic and the light passing through it. The LED color, the transmission of the overlay, ink coverage, diffusion layers, and nearby opaque graphics all influence the final appearance. A color sample printed on an opaque card therefore may not match the same color viewed over a light source.
Review the light source and graphic construction together. Define transparent and blocked areas, and check whether a backing layer is needed. Also confirm the unlit appearance, since overly transparent graphics may reveal internal components.
These decisions should be settled before tooling and final artwork approval. For an overview of membrane switch construction and graphic overlay options, see LuphiTouch membrane switch solutions.
A graphic can have the correct color and still look wrong if light leaks beyond its intended boundary. Narrow strokes, small lettering, closely spaced icons, and fine borders are especially worth checking on a physical sample. A design that works at full size on a monitor may lose detail when printed, layered, and illuminated.
For backlit membrane switches, design small legends and narrow strokes around the limits of real viewing size rather than zoomed artwork. Prepare a list of critical visual features, such as minimum line width, spacing between illuminated zones, opacity of surrounding masks, and acceptable visibility of inactive legends. Review those features in the actual keypad size. If a graphic contains small reverse-out lettering, test whether the letters remain open and readable after printing and illumination.
Color approval becomes subjective when samples are viewed under different conditions. Record the viewing environment, backlight setting, warm-up period, angle, distance, and approved reference, then reuse these conditions for later comparisons.
The ISO 3664:2025 viewing-conditions standard covers critical evaluation of reflective and transmissive graphic media and includes backlighted signs within its scope. It may inform a controlled visual comparison; agree on the method for the finished keypad based on its application.
When reviewing backlit membrane switches, assess the complete assembly rather than a detached overlay. The housing, diffuser, nearby reflective surfaces, and installed light source may all affect the final result.
A signed sample should record more than the general look of the panel. Keep the approved artwork revision, material and ink references, illumination configuration, photographs of on/off states, and notes about any features that received special attention. This gives production inspectors a defined comparison point.
For membrane switches shipped in repeat batches, retain the approved sample, documented viewing conditions, and inspection record. This creates a practical reference for production teams rather than relying on memory or informal visual judgment.
Production check | What to record |
|---|---|
Artwork and legends | Revision, text, symbols, alignment, and missing print |
Color appearance | Reference sample and agreed viewing conditions |
Illuminated graphics | Uniformity, unwanted light leakage, and legibility |
Unlit appearance | Background consistency and visibility of inactive areas |
Batch comparison | Inspection date, sample identification, and disposition of defects |
Reassess visual approval when artwork, inks, overlay material, light source, or diffuser construction changes.
A product may combine a keypad with an LCD, touchscreen, indicator LEDs, or logo window. Exact color matching between a printed overlay and an electronic display may not be realistic because they create color differently. Aim for coordinated contrast, brightness, and layout.
When membrane switches sit beside an LCD or touchscreen, review the components together at the intended viewing distance. For projects combining physical controls and display technology, explore LuphiTouch touch-display modules.
Alt text: Integrated backlit keypad and display checked together for visual consistency.
LuphiTouch supports custom user-interface projects. Share your artwork, preferred color references, required illuminated and unlit appearance, light-source details, and enclosure drawings to begin a technical review. Explore LuphiTouch's custom membrane switch solutions.
The light source, ink transparency, overlay, masks, and diffuser affect the result. Transmitted light can make a printed color look different from the same color under ambient light.
A digital proof helps with layout review but should not be the final color reference. Check a production-representative sample under documented lighting conditions.
Include vector graphics where available, dimensions, revision identifiers, color references, transparent and opaque zones, legend windows, non-illuminated areas, and notes about critical visual features.
Use an approved sample, controlled materials and artwork revisions, repeatable viewing conditions, and inspection records for both light states.
Not always. Printed and emissive surfaces behave differently. Define a coordinated appearance target, then evaluate the components together in the finished product.
