Common Membrane Switch Failures and Solutions

Introduction

Membrane switches are widely used for industrial controls, medical equipment, appliances, instrumentation, and electronic interfaces. Their thin structure, customizable graphics, sealed surface, and flexible circuit design make them suitable for many applications.

However, even a well-designed membrane switch can experience problems during assembly or long-term operation. The key to solving these problems is to identify what failed, why it failed, and which layer or component is responsible.

This guide covers several common membrane switch failures and practical solutions that engineers and purchasing teams can use when evaluating or troubleshooting a membrane switch.

1. Button Does Not Respond

One of the most common membrane switch failures is an individual button that does not activate.

Possible causes include damaged conductive traces, contamination around the contact area, a damaged metal dome, or poor alignment between the circuit layers.

For a new project, these problems can often be reduced through proper circuit layout, controlled assembly, and electrical testing before shipment.

2. Intermittent or Unstable Signals

A membrane switch may sometimes work and sometimes fail. This problem is particularly difficult because the switch may pass a basic functional test but fail after repeated operation.

Potential causes include insufficient contact pressure, loose connections, micro-cracks in conductive traces, or mechanical stress around the tail.

A useful troubleshooting sequence is:

1. Check the connector and cable connection.

2. Test circuit continuity.

3. Inspect the tail for sharp bends or mechanical stress.

4. Check the contact structure.

5. Perform repeated-cycle testing.

3. False Triggering or Ghost Signals

False triggering occurs when a button activates without a deliberate press or when one press produces an unexpected signal.

Common causes include unwanted electrical contact, insufficient insulation, conductive contamination, or inappropriate circuit spacing.

For demanding applications, the circuit layout should be reviewed before tooling and production. Preventing the problem at the design stage is usually more effective than correcting it after assembly.

4. Broken or Cracked Conductive Traces

Flexible printed circuits inside a membrane switch are repeatedly exposed to bending, pressure, and environmental stress. Excessive mechanical stress can eventually damage conductive traces.

The tail area deserves particular attention because improper routing or bending can create concentrated stress.

A better design should consider:

• Minimum bending requirements

• Tail exit direction

• Connector position

• Mechanical fixing

• Repeated flexing conditions

• Protection around high-stress areas

For applications requiring unusual shapes, complex circuitry, or special interfaces, a custom membrane switch can be designed around the actual mechanical environment instead of forcing a standard configuration into the product.

5. Moisture and Contamination Problems

Dust, water, oil, cleaning agents, and other contaminants can affect switch performance when the structure is not adequately protected.

Applications exposed to frequent cleaning or outdoor environments may require a sealed or waterproof membrane switch design.

The correct material, adhesive, sealing structure, and graphic overlay should be selected according to the actual operating environment rather than simply choosing the lowest-cost configuration.

6. Graphic Overlay Damage

The graphic overlay is the part users directly touch. Scratches, peeling, fading, cracking, and bubbling can reduce both appearance and usability.

Frequent causes include:

• Incorrect overlay material selection

• Excessive mechanical abrasion

• Incompatible cleaning chemicals

• Poor adhesive selection

• Improper surface preparation

PET and other overlay materials can provide different combinations of flexibility, durability, appearance, and chemical resistance. Therefore, the overlay should be selected according to the product's expected operating conditions.

7. Poor Tactile Feedback

Some membrane switches are designed with metal domes or other tactile structures to provide a clear click or return sensation.

If the tactile response becomes weak, inconsistent, or uncomfortable, the problem may involve dome selection, alignment, activation force, spacer structure, or mechanical design.

Tactile requirements should be defined before production because changing them after tooling can increase development time and cost.

How to Prevent Membrane Switch Failures

The most effective approach is to prevent failures before mass production.

A practical quality process should include:

Design review → Material selection → Prototype testing → Electrical testing → Environmental testing → Mechanical cycle testing → Final inspection

A manufacturer should also understand the complete application rather than producing the switch only from a drawing.

Important information includes:

• Operating temperature

• Humidity exposure

• Required operating cycles

• Cleaning method

• Input force

• Circuit requirements

• Installation method

• Connector requirements

• Surface appearance requirements

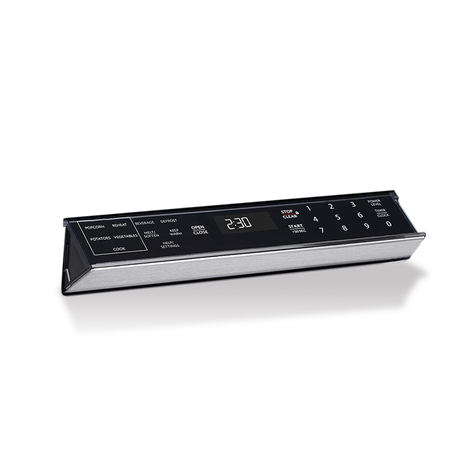

membrane switch solutions

Choosing the Right Custom Membrane Switch

Different products require different switch structures. A simple indoor control panel may need only a standard membrane switch, while industrial, medical, or outdoor equipment may require additional sealing, special adhesives, shielding, backlighting, or tactile components.

When selecting a supplier, consider more than unit price. Engineering support, prototype capability, circuit testing, material selection, quality control, and customization experience can have a significant effect on long-term reliability.

LuphiTouch provides custom membrane switch solutions for different product requirements, including customized graphics, circuits, tactile structures, and application-specific configurations.
Need a membrane switch designed for your application?
Explore custom membrane switch solutions and discuss your requirements with the LuphiTouch team.

Conclusion

Most membrane switch failures are easier to prevent when the design, materials, circuit structure, mechanical environment, and testing requirements are considered together. Identifying the failure symptom is only the first step; understanding its root cause is what leads to a reliable solution.

For specialized applications, working with an experienced manufacturer can help reduce design risks and improve long-term switch performance.
LuphiTouch – Custom Membrane Switch Manufacturer

Frequently Asked Questions

Q1. What is the most common membrane switch failure?

A: An unresponsive button is one of the most common problems. It can result from circuit damage, contact problems, contamination, connector issues, or mechanical wear.

Q2. Why does a membrane switch work intermittently?

A: Intermittent operation can be related to unstable contacts, damaged conductive traces, connector problems, mechanical stress, or insufficient contact pressure. Electrical continuity testing can help narrow down the cause.

Q3. Can membrane switches be waterproof?

A: Yes. A membrane switch can be designed with suitable sealing, materials, adhesives, and construction for applications requiring improved moisture protection. The required protection level should be defined during the design stage.

Q4. How can membrane switch failures be prevented?

A: Start with application-specific design, appropriate materials, prototype testing, electrical testing, mechanical cycle testing, and environmental validation before mass production.

Q5. Why choose a custom membrane switch?

A: A custom membrane switch can be designed around the product's dimensions, circuit layout, tactile requirements, installation method, environmental conditions, and user interface. This can provide a better fit than adapting a standard switch.
