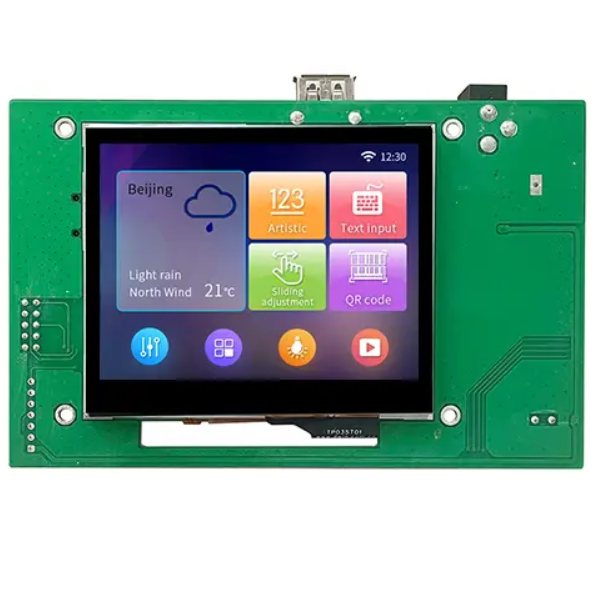

A TFT LCD (Thin-Film Transistor Liquid Crystal Display) is considered good quality when its specific performance characteristics align with the demands of its intended application. The quality isn't a simple yes-or-no answer but is defined by a balance of factors including resolution, brightness, contrast ratio, viewing angle technology (like IPS), color accuracy, and durability. For industrial, medical, or consumer applications, a high-quality TFT LCD provides a clear, reliable, and responsive visual interface, often proving to be the most cost-effective and robust solution available.
To properly assess the quality of a TFT LCD, it's essential to understand its fundamental technology. A TFT LCD is an active-matrix LCD, meaning it uses a tiny transistor to control each individual pixel. This architecture is a significant advancement over older passive-matrix displays, which could suffer from slow response times and image ghosting. The "TFT" part is the key to its performance.
The thin-film transistor acts as a miniature switch for each pixel on the screen. By applying a voltage to a specific transistor, it allows light from the backlight to pass through the red, green, or blue sub-pixels at varying intensities. This precise, pixel-level control enables the display to render sharp, vibrant, and fast-moving images. This active-matrix addressing prevents electrical crosstalk between pixels, ensuring that the state of one pixel does not affect its neighbors, which is crucial for high-resolution and detailed imagery.
While all TFT displays are a type of LCD, not all LCDs use TFT technology. The primary distinction is the active-matrix grid of transistors. Older, passive-matrix LCDs lacked this, resulting in lower contrast, slower response times, and limited viewing angles. The integration of TFTs revolutionized LCDs, making them suitable for everything from high-definition televisions and computer monitors to the detailed graphical user interfaces required in industrial machinery and medical equipment. The technology provides the foundation for the high performance we expect from modern screens.
The "quality" of a TFT LCD is not a single attribute but a combination of measurable performance metrics. Understanding these specifications is critical when selecting a display for any project, as the ideal balance depends entirely on the use case.
Resolution refers to the total number of pixels on a display, expressed as width x height (e.g., 1920x1080). Pixel Density, measured in Pixels Per Inch (PPI), describes how closely those pixels are packed together. A higher PPI results in sharper images and smoother text, as the individual pixels become indistinguishable to the human eye. For applications requiring intricate detail, such as medical imaging or graphical design, a high-resolution, high-PPI display is paramount.
Brightness, measured in nits (candela per square meter), determines how well a screen can be viewed in different lighting conditions. A standard indoor display might be 250-300 nits, while a display designed for outdoor or sunlight-readable applications may require 1000 nits or more. The contrast ratio is the difference between the brightest white and the darkest black a screen can produce. A higher contrast ratio leads to more vibrant, lifelike images with greater perceived depth.
Viewing angle is a critical quality factor, especially for devices that are not viewed head-on. Early TFT technology, known as Twisted Nematic (TN), often suffered from color and contrast shifts when viewed from an angle. Modern advancements like In-Plane Switching (IPS) technology have largely solved this. IPS displays, a type of TFT LCD, offer wide viewing angles (often 178°/178°) with consistent color and brightness, making them ideal for collaborative environments and critical information displays.
Color gamut refers to the range of colors a display can reproduce, typically expressed as a percentage of a standard like sRGB or NTSC. A wider color gamut means the display can show more saturated and vivid colors. Color accuracy ensures that the colors displayed match the intended source colors. For applications in digital art, medical diagnostics, or brand-sensitive marketing, high color gamut and accuracy are non-negotiable quality markers.
Response time is the speed at which a pixel can change from one color to another, measured in milliseconds (ms). A faster response time reduces motion blur and ghosting, which is crucial for video playback or fast-moving user interfaces. Refresh rate, measured in Hertz (Hz), is how many times the screen updates per second. A higher refresh rate (e.g., 60Hz or 120Hz) creates a smoother, more fluid visual experience.
For industrial, automotive, or medical applications, durability is a key measure of quality. This includes the display's ability to operate in a wide range of temperatures and withstand shock or vibration. Lifespan is often indicated by the backlight's Mean Time Between Failures (MTBF), typically rated for tens of thousands of hours. A high-quality TFT is one that performs reliably for its entire expected operational life.
Choosing the right display involves comparing TFT LCDs, especially IPS variants, with other technologies like OLED. Each has its own set of strengths, and the best choice depends on project priorities such as cost, power consumption, and visual performance.
| Feature | TFT LCD (TN Panel) | TFT LCD (IPS Panel) | OLED |
|---|---|---|---|
| Viewing Angle | Limited; color shifts off-axis | Excellent (up to 178°) | Excellent (up to 178°) |
| Contrast Ratio | Good | Very Good | Infinite (true blacks) |
| Color Reproduction | Good | Excellent | Exceptional; wider gamut |
| Response Time | Very Fast (good for gaming) | Good to Fast | Instantaneous |
| Power Consumption | Moderate (backlight is always on) | Slightly higher than TN | Varies; efficient with dark content |
| Lifespan/Durability | Excellent; very mature tech | Excellent; stable and reliable | Good; organic materials can degrade over time |
| Cost | Low | Moderate | High |
The versatility and balanced performance of TFT LCDs make them the technology of choice across numerous demanding industries. Their quality is proven by their widespread adoption where reliability and clarity are essential.
In manufacturing and automation, Human-Machine Interfaces (HMIs) require displays that are bright, durable, and easily readable from various angles on the factory floor. High-quality industrial TFTs are often integrated with resistive or capacitive touch panels and are built to withstand wide temperature ranges, humidity, and vibration.
From patient monitors to diagnostic equipment, the medical field demands displays with exceptional color accuracy, high resolution for detailed imaging, and consistent performance. IPS-based TFTs are frequently used for their superior viewing angles, ensuring that multiple healthcare professionals can view critical data clearly from different positions in a room.
Modern vehicles rely on TFT displays for digital instrument clusters, infotainment systems, and heads-up displays. These screens must meet stringent quality standards for temperature resistance, shock absorption, and long-term reliability. Sunlight readability is also a key factor, requiring high-brightness TFTs with anti-glare treatments.
A spec sheet only tells part of the story. True display quality is also a result of the manufacturing process, supply chain stability, and the ability to customize a solution for a specific environment.
A reliable supplier ensures that every display off the production line meets the same high standards. This involves rigorous quality control to check for defects like dead pixels, backlight bleed, or color inconsistencies. Consistent manufacturing guarantees that a product will perform as expected, from the first prototype to the final production run.
Standard off-the-shelf displays may not meet the needs of a specialized application. High-quality solutions often involve customization, such as adding optically bonded cover glass for increased durability and sunlight readability, applying anti-reflective or anti-fingerprint coatings, or integrating custom touch sensors and controller boards. This level of engineering transforms a standard component into a perfect-fit solution.
For products with long life cycles, such as industrial or medical equipment, supply chain stability is a critical component of quality. A trusted partner guarantees the long-term availability of a display, preventing costly redesigns due to an end-of-life component. Comprehensive technical support throughout the design and implementation process is also a hallmark of a high-quality display solution provider.
Ultimately, a TFT LCD is a high-quality display technology when its capabilities are correctly matched to the needs of the device. By evaluating key metrics like brightness, viewing angle, and resolution, and by partnering with a supplier who prioritizes manufacturing excellence and long-term support, you can integrate a display that delivers exceptional visual performance and reliability. The focus should not be on finding the "best" technology in a vacuum, but on identifying the best-suited, highest-quality display for your specific project requirements.
