transistor. This direct control allows for faster and more precise switching of pixels, resulting in high-contrast, sharp, and vibrant images with minimal blurring or ghosting. Unlike older passive-matrix displays, TFT technology provides superior image quality and response times, making it the foundational technology for the vast majority of modern flat-panel screens, from industrial control panels and medical devices to consumer televisions and smartphones.
Understanding how a TFT LCD creates an image involves looking at its intricate, layered structure and the critical function of the transistors. At its core, an LCD does not produce its own light; instead, it acts as a shutter, controlling how much light from a backlight passes through to the viewer's eyes. The TFT array is the high-speed, high-precision switching system that makes this process possible for millions of pixels simultaneously.

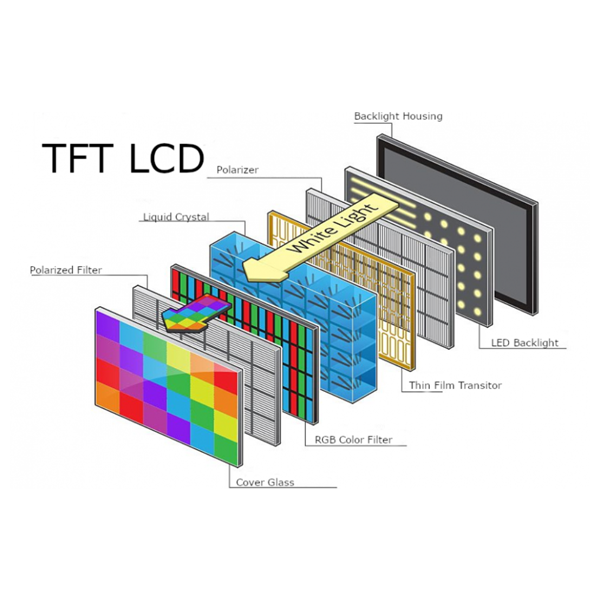

A TFT LCD module is a sandwich of several essential layers working in concert. It begins with a backlight unit (typically using LEDs) that provides a constant source of white light. This light first passes through a rear polarizing filter, which orients the light waves in a single plane. Next is the TFT glass substrate, which contains the grid of thin-film transistors, capacitor, and transparent pixel electrodes. Above this lies the liquid crystal layer, the heart of the display. This is followed by a color filter (RGB) substrate, which assigns a red, green, or blue identity to each sub-pixel. Finally, a front polarizing filter, oriented perpendicular to the rear one, sits on top. Without any voltage, this setup blocks all light, creating a black screen.
The term Thin-Film Transistor (TFT) refers to a special type of field-effect transistor made by depositing thin films of an active semiconductor layer, as well as metallic contacts and a dielectric layer, over a supporting substrate (usually glass). In a TFT LCD, there is at least one of these transistors for each individual pixel (or, more accurately, each sub-pixel). The transistor acts as a miniature switch. When a specific voltage is applied to it, the transistor turns on and allows charge to flow to a transparent electrode. This charge creates an electric field across the liquid crystal material directly above it. The liquid crystal molecules react to this field by twisting or untwisting, which changes the polarization of the light passing through them. This change allows a controlled amount of light to pass through the color filter and the front polarizer, creating a visible color on the screen.
The "active-matrix" nature of TFT is its key advantage over older "passive-matrix" LCDs. In a passive-matrix display, pixels are addressed indirectly through a simple grid of conductors. This can lead to slow response times and "crosstalk," where activating one pixel inadvertently affects adjacent ones, causing blurry or ghosted images. In an active-matrix TFT display, each pixel has its own dedicated transistor and capacitor. This capacitor holds the charge for the pixel for the entire refresh cycle, allowing the pixel to remain in its state without needing to be constantly refreshed. This results in a much faster, more stable, and more precise image, free from the limitations of passive-matrix technology and capable of displaying high-resolution, full-motion video.
The performance and quality of a TFT display are defined by several key metrics. These characteristics determine how well the screen reproduces images, how it performs with motion, and how it appears from different viewing positions. For designers and engineers selecting a display for a specific application, understanding these traits is paramount.
Resolution refers to the number of pixels on a display, typically expressed as width x height (e.g., 1920x1080). Because TFT technology allows for incredibly dense pixel arrays, it enables very high resolutions, resulting in sharp, detailed images and crisp text. Color depth, or bit depth, defines the number of colors a display can produce. Modern TFTs can easily display 16.7 million colors (24-bit true color), providing rich and lifelike visuals. Contrast ratio is the difference between the brightest white and the darkest black a screen can produce. A higher contrast ratio means deeper blacks and more vibrant colors, leading to a more dynamic and impactful image.
Response time is the speed at which a pixel can change from one color to another (e.g., black to white to black). Measured in milliseconds (ms), a faster response time is crucial for reducing motion blur in fast-moving scenes, such as in video playback or industrial machine vision. Refresh rate, measured in Hertz (Hz), is the number of times the screen updates its image per second. A higher refresh rate (e.g., 60Hz or 120Hz) results in smoother on-screen motion, which is particularly important for interactive user interfaces and video content.
Viewing angle is the maximum angle at which a display can be viewed without a significant degradation in image quality, such as shifts in color or loss of contrast. While early TFTs had notoriously narrow viewing angles, modern variations like IPS technology have largely solved this issue. The specific type of TFT panel technology used is the primary determinant of its viewing angle performance, a critical factor for devices that may be viewed from off-center, such as medical monitors or public information kiosks.
It's important to understand that "TFT LCD" is a foundational technology, not a single panel type. Different manufacturing techniques and liquid crystal alignments have led to several variations, each with a unique set of strengths and weaknesses. The most common types are Twisted Nematic (TN), In-Plane Switching (IPS), and Vertical Alignment (VA).
TN is the oldest and most cost-effective type of TFT panel. Its primary strengths are incredibly fast response times and high refresh rates, making it a popular choice for competitive gaming monitors. However, its main drawbacks are limited viewing angles and less accurate color reproduction compared to other panel types. When viewed from an off-angle, TN panels can exhibit significant color and contrast shifts.
Developed to overcome the limitations of TN panels, IPS technology aligns the liquid crystals horizontally (in-plane). This structural difference results in vastly superior viewing angles and far more accurate, consistent color reproduction. For this reason, IPS panels are the standard for applications where color accuracy is critical, such as graphic design, medical imaging, and high-end consumer electronics. While historically having slower response times than TN, modern IPS panels have become much faster, closing the performance gap significantly.
VA panels offer a middle ground between TN and IPS. Their key advantage is an exceptionally high native contrast ratio, producing deep, inky blacks that other LCD technologies struggle to match. This makes them excellent for watching movies or for applications where displaying dark content is common. Their color reproduction and viewing angles are generally better than TN but not quite as good as IPS. Their response times can also be slower, sometimes leading to blurring in dark scenes.
| Feature | Twisted Nematic (TN) | In-Plane Switching (IPS) | Vertical Alignment (VA) |
|---|---|---|---|
| Viewing Angles | Limited | Excellent | Good |
| Color Reproduction | Fair | Excellent | Very Good |
| Contrast Ratio | Standard | Good | Excellent |
| Response Time | Excellent (Fastest) | Very Good | Good |
| Common Use Cases | High-refresh-rate gaming, budget displays | Professional graphics, medical, premium devices | Televisions, general-purpose monitors |
The versatility, maturity, and cost-effectiveness of TFT LCD technology have made it ubiquitous across virtually every industry. Its ability to be customized in size, resolution, and performance characteristics allows it to be adapted for a wide range of demanding environments.
In industrial settings, TFT displays are integrated into Human-Machine Interfaces (HMIs), control panels, and portable testing equipment. These applications demand displays that are rugged, reliable, and readable in various lighting conditions, including direct sunlight. In the medical field, high-resolution IPS-TFT displays are essential for diagnostic imaging, patient monitoring systems, and surgical displays where color accuracy and consistency from any viewing angle are non-negotiable for patient safety and accurate diagnosis.
This is the most visible application of TFT technology. It powers everything from large-screen 4K televisions and desktop computer monitors to laptops, tablets, and smartphones. The continuous innovation in TFT technology, such as the development of high-performance IPS and VA panels, has driven the demand for better, brighter, and more responsive screens in our daily lives.
Modern vehicles heavily rely on TFT displays for digital instrument clusters, infotainment systems, and heads-up displays (HUDs). These automotive-grade screens must meet stringent requirements for temperature range, vibration resistance, and long-term reliability. Likewise, they are used in public transportation for information displays and in aviation for cockpit instrumentation, where clarity and dependability are paramount.
Like any technology, TFT LCDs have a distinct profile of benefits and trade-offs. A balanced understanding of these points is crucial for selecting the right display solution for a given project.
The most significant advantages of TFT technology are its maturity and cost-effectiveness. Decades of manufacturing refinement have made TFT displays highly reliable and affordable to produce at scale. They offer excellent image sharpness and high resolution, are relatively energy-efficient compared to older technologies like CRT, and have a thin, lightweight form factor. Their versatility in size, from tiny smartwatch screens to massive video walls, is another key benefit.
Compared to newer emissive display technologies like OLED, TFT LCDs have some inherent limitations. Because they rely on a backlight, they cannot achieve true, perfect black levels; there is always some minor light leakage, which affects the overall contrast ratio. Their layered structure makes them thicker than OLED panels. Power consumption, while good, can be higher than OLED displays, particularly when showing dark images, as the backlight is always on regardless of the content being displayed.
While technologies like OLED and MicroLED gain traction for their perfect blacks and ultra-thin profiles, TFT LCD technology is not standing still. Innovations continue to enhance its performance, with advancements like Mini-LED backlights dramatically improving contrast and brightness to rival OLED in many aspects. Quantum Dot technology (found in QLED displays) is another enhancement built upon the TFT framework, offering a wider color gamut. For the foreseeable future, TFT LCD will remain a dominant and foundational technology in the display industry due to its unmatched balance of performance, cost, and manufacturing scalability. It serves as the workhorse for a vast array of applications and continues to evolve, ensuring its relevance for years to come.
