As a leader in designing and manufacturing custom Human-Machine Interface (HMI) solutions since 2008, we at LUPHI often get asked about the intricacies of our products. One of the most common questions is, "How exactly do you make a membrane switch?" The answer lies in a multi-stage process that blends precision engineering, material science, and meticulous quality control. It's a journey from a client's concept to a fully functional, reliable, and durable interface.
luphitouch will pull back the curtain on the complete membrane switch manufacturing process. We'll explore the essential layers that form every switch, walk through the step-by-step creation, and touch on the custom features that make each LUPHI product unique.

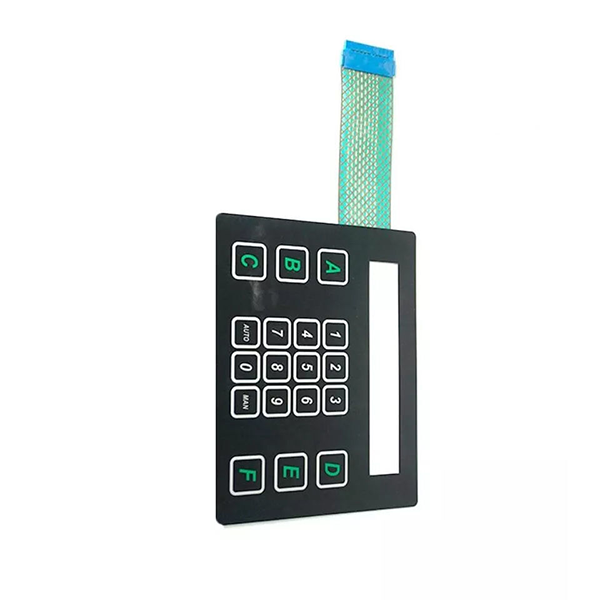

Before we dive into the "how," let's clarify the "what." A membrane switch is a momentary switch device in which at least one contact is on, or made of, a flexible substrate. In simpler terms, it's a printed electronic circuit that uses pressure to open and close a circuit. Unlike traditional mechanical switches, they are sealed, low-profile, and highly customizable, making them ideal for industries ranging from medical devices and industrial controls to consumer electronics.
The magic of a membrane switch is its layered construction. Each layer serves a specific purpose, and their precise combination and assembly are what determine the switch's performance, feel, and lifespan. Understanding these layers is the first step to understanding how they're made.
A typical membrane switch is composed of several thin, flexible layers bonded together with pressure-sensitive adhesives. While designs can be customized, almost all switches include these fundamental components.
| Layer | Material | Primary Function |
|---|---|---|
| 1. Graphic Overlay | Polyester (PET), Polycarbonate (PC) | The top, user-facing layer. It displays the graphics, logos, and button locations. It also provides a protective seal against moisture, chemicals, and abrasion. |
| 2. Overlay Adhesive | Pressure-Sensitive Adhesive (PSA) | A thin layer of high-performance adhesive that bonds the graphic overlay to the top circuit layer. |
| 3. Top Circuit Layer | Polyester (PET) with conductive ink | A flexible film with a printed circuit. In some designs, this layer contains the shorting pads and may incorporate metal domes for tactile feedback. |
| 4. Circuit Spacer | Polyester, Adhesive | This layer has cutouts for the switch areas and circuit tail. It separates the top and bottom circuit layers, preventing the switch from being constantly "on" (shorted). Its thickness determines the travel distance of the key. |
| 5. Lower Circuit Layer | Polyester (PET) with conductive ink | Another flexible film with the other half of the printed circuit. When a key is pressed, it makes contact with this layer, completing the circuit. |
| 6. Rear Adhesive | Pressure-Sensitive Adhesive (PSA) | This final layer bonds the entire switch assembly to the product's housing or a rigid backer panel. |
With the layers defined, we can now walk through the precise steps we take at LUPHI to bring a membrane switch to life. This process is a testament to our commitment to quality, backed by our ISO 9001, ISO 13485, ISO 14001, and IATF 16949 certifications.
Everything starts with collaboration. Our engineering team works closely with you to understand your exact requirements. This includes electrical schematics, environmental operating conditions, desired tactile feel, and graphic design. Using CAD software, we create detailed engineering drawings that serve as the blueprint for the entire project. This phase is crucial for preventing issues down the line and ensuring the final product perfectly matches your application.
Once the design is approved, the printing process begins. We use high-precision screen printing to apply graphics and conductive circuits onto the flexible film layers (typically PET).
Graphic Printing: The graphic overlay is reverse-printed on the underside of the top material (Polyester or Polycarbonate). This protects the ink from wear, abrasion, and cleaning chemicals, ensuring long-term durability and a clean aesthetic. We use specialized inks to achieve exact color matching and opacity.
Circuit Printing: Silver or carbon-based conductive inks are printed onto the polyester circuit layers to create the electrical pathways, contact pads, and connector tail. A dielectric insulating ink is often printed over the silver traces to prevent short circuits.
After the inks are cured in industrial ovens, each layer must be cut to its final shape. We use high-precision steel-rule dies, laser cutting, or CNC plotters to cut the layers. Accuracy here is paramount. Misalignment of even a fraction of a millimeter can cause switch failures, delamination, or improper fit. This step also creates the cutouts in the spacer layer and the final outline of the switch assembly.
This is where the membrane switch takes its final form. Assembly is performed in a controlled, clean-room environment to prevent dust or debris from getting trapped between the layers, which could impede switch function. Starting from the bottom up, each layer is carefully aligned and bonded using the pressure-sensitive adhesives. If the design includes tactile metal domes, they are precisely placed on the circuit layer before the top layers are applied.
No product leaves our facility without undergoing rigorous testing. Every single membrane switch is 100% electrically tested to ensure all circuits are open and close correctly and meet specified resistance values. We also perform visual inspections, dimensional checks, and functional tests (like actuation force) to guarantee that every unit meets both our high standards and your specific requirements.
The beauty of the membrane switch manufacturing process is its flexibility. Beyond the standard construction, we can integrate a wide array of features to enhance functionality and user experience.
Tactile vs. Non-Tactile Feedback: We can create switches with a distinct "snap" feel using embossed polyester or embedded metal domes, or a non-tactile design for applications where silent, smooth operation is preferred.
Advanced Backlighting: To ensure visibility in all lighting conditions, we can integrate Fiber Optic, LED, or Electroluminescent (EL) backlighting solutions.
EMI/RFI Shielding: For devices used in electronically "noisy" environments, we can add a layer of aluminum foil or printed carbon to shield the switch from electromagnetic or radio frequency interference.
Integrated Windows and Lenses: We can create transparent display windows for LCDs or LEDs, with options for clear, anti-glare, or tinted finishes.
Sealing and Durability: For medical or industrial applications, we can design switches with IP67 or IP68 ratings, making them fully waterproof and dustproof.
The manufacturing process for a membrane switch is far more than a simple assembly line. It requires deep expertise in material science, precision printing, and robust quality systems. Choosing an experienced partner like LUPHI means you are not just buying a component; you are gaining access to a team of engineers and manufacturing experts dedicated to creating the most reliable and effective interface for your product.
From initial design consultation to final production and testing, our comprehensive capabilities ensure that your project is handled with the professionalism and attention to detail it deserves. We transform complex requirements into elegant, functional, and durable membrane switch solutions.
