Choosing a supplier for a custom control interface takes more than comparing sample photos or piece prices. The right silicone keypad must fit the enclosure, provide the intended key feel, connect reliably to the circuit, and remain consistent across production batches. For OEM teams, the most useful silicone keypad manufacturers are those able to discuss design risks early, document agreed requirements, and support the product from prototype through repeat orders.
This guide explains the decisions that shape cost, performance, and manufacturability—and the questions to ask before approving a supplier.

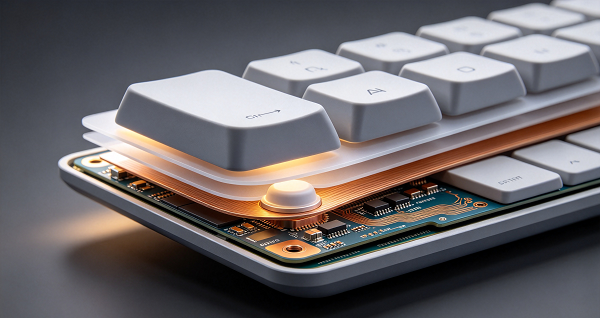

A silicone keypad is a molded elastomer component that provides the physical keys of an electronic interface. Each key’s geometry and flexible web help determine its movement and return force. Depending on the design, a conductive carbon pill or another contact element can close a circuit on a PCB or flexible circuit when the key is pressed.
The keypad may be supplied as a standalone molded part or integrated with a circuit, LEDs, adhesive, graphic overlay, or housing. Define the complete interface early: a change to key height or mounting space can affect the mold, contact alignment, and assembly process.
Design decision | What to decide early | Why it matters |
|---|---|---|
Key geometry | Key pitch, shape, height, web dimensions, travel, and spacing | Affects finger access, wobble, return, and available space |
Tactile response | Desired actuation force, snap feel, and feedback | Influences usability and the geometry of the key web |
Electrical contact | Carbon pill, metal dome, or another contact arrangement | Determines how a press is detected and what circuit design is required |
Surface and legends | Color, texture, printing, coating, and symbol method | Affects appearance, legibility, abrasion, and cleaning compatibility |
Product environment | Temperature, humidity, chemicals, UV exposure, and expected use | Guides material selection and validation requirements |
Hardness is only one part of tactile performance. A specified Shore hardness does not, by itself, define actuation force or snap ratio; geometry and the assembled circuit also matter. When feel is important, review prototype samples and, where practical, request force-versus-travel data.
Most projects begin with CAD review and a design-for-manufacturing (DFM) discussion. The supplier checks parting lines, draft, wall thickness, undercuts, key webs, surface details, and tolerance stack-up before tooling is finalized.
Compression molding is used for many molded rubber components. Liquid silicone rubber (LSR) injection molding may suit other designs, depending on geometry, material grade, tooling investment, volume, and required process control. Neither process is automatically the best choice for every project.
After molding, secondary operations may include trimming, screen printing, laser etching, coating, applying adhesive, or installing conductive contacts. For illuminated keys, translucent areas and opaque masking must be coordinated with the light source to reduce unwanted light leakage.
Ask potential suppliers to respond to the same requirements so their proposals can be compared fairly.
Evaluation area | Questions to ask | Useful evidence |
|---|---|---|
Engineering support | Will the supplier review CAD, key travel, and mounting details before tooling? | DFM comments, revised drawings, documented assumptions |
Material control | What grade, color, hardness, and traceability can be provided? | Material data, incoming inspection method, batch records |
Tooling and production | Who owns and maintains the mold? How are tool changes approved? | Tooling scope, maintenance plan, sample approval records |
Quality checks | Which visual, dimensional, electrical, and life tests apply? | Control plan, inspection criteria, sample test results |
Integration | Can the keypad be supplied with circuits, LEDs, overlays, or other interface components? | Assembly drawings, interface review, clear responsibility matrix |
Delivery and support | How are revisions, packaging, defects, and repeat orders managed? | Change-control process, corrective-action procedure, agreed lead-time assumptions |
A polished sample is not enough to demonstrate production consistency. Confirm the acceptance criteria in writing, identify the approved drawing revision, and ask how deviations are handled. If a supplier cites a quality certification, check the certificate issuer, scope, validity, and manufacturing site rather than relying on a logo alone. The ISO quality management overview explains the purpose of quality-management systems, but does not certify any particular supplier.
Material selection should reflect the actual operating environment, including temperature range, exposure to skin oils or cleaning chemicals, outdoor weathering, and any required flame or compliance criteria. Ask the supplier to state what is included in the material specification and what requires separate testing.
Hardness can be measured using durometer methods. The ASTM D2240 test method describes measurement of indentation hardness for rubber and certain other materials. A hardness result is not a substitute for testing finished-key performance, compression set, contact resistance, or durability where those properties matter.
Create a practical validation plan with the supplier. Depending on the product, this may cover dimensional checks, force and travel, actuation-cycle testing, contact resistance, print adhesion, abrasion, environmental exposure, and assembly fit. Set pass/fail criteria before testing begins.
A complete request for quotation helps silicone keypad manufacturers estimate tooling and unit costs with fewer assumptions. Include:
2D drawings and 3D CAD files, with the drawing revision identified.
Key layout, dimensions, color, surface finish, and artwork.
Target tactile feel, actuation-force preference, and expected operating cycles.
Contact type and details of the mating PCB or flexible circuit.
Annual volume, expected order pattern, prototype quantity, and packaging needs.
Operating environment, cleaning agents, applicable tests, and required documentation.
Ask for tooling charges, unit pricing at relevant volume breaks, prototype conditions, exclusions, and any assumptions that affect the quotation. Compare total project cost and technical fit, not only the lowest quoted unit price.
LuphiTouch supplies user-interface components and control panels for home appliances, medical devices, industrial control, and instrumentation. Its rubber keypad product page describes custom silicone keypad options, including printed legends, surface coatings, laser-etched backlit symbols, conductive contacts, and keypad switch assemblies.
Projects that require a broader front-panel interface may also benefit from integrating a keypad with a membrane switch solution. Share your drawings, project volume, target environment, and preferred tactile response to start a technical discussion.
Planning a new control interface? Contact LuphiTouch through its membrane switch and user-interface product page to discuss your requirements and request a quote.
Share drawings or a concept sketch, key layout, dimensions, circuit details, operating conditions, quantity forecast, and desired feel. Note any requirements that are mandatory versus preferences.
No. Material hardness influences deformation, but key web geometry, travel, key size, and contact design also affect force and feedback. Evaluate the assembled sample instead of choosing based on hardness alone.
Yes. Translucent silicone areas, laser-etched legends, masking layers, and LEDs can be combined when the material and optical design are suitable. Prototype testing is useful for checking brightness and light leakage.
Finalize the key layout, mating circuit, mounting constraints, material expectations, and acceptance criteria before approving tooling. Early DFM feedback and a controlled sample-approval process can help reduce avoidable changes.
Ask for current, site-specific certificates where applicable, inspection plans, material traceability practices, sample test results, and a clear process for nonconforming parts. Validate the finished assembly against your own requirements.
