The washing machine module is a collection of core components in the washing machine, covering control, motor drive, display interaction, scanning payment, and drying modules. The following is a detailed introduction to the main modules of the washing machine and their characteristics:
The control module is the "brain" of the washing machine, responsible for coordinating and controlling the entire washing process. Take one as an example, its control module is divided into two main parts:
Module 1: Primarily responsible for powering the heating tube, equipped with heat sinks and capacitors to ensure the stability and safety of the heating process.
Module 2: Responsible for the washing and drying programs, sensing programs, as well as network control with mobile phone interconnection, to achieve intelligent operation of the washing machine.
The motor drive module is the power source of the washing machine, directly affecting the washing effect and noise level.
Frequency Converter Module: With soft start function, the starting current changes from zero, with a maximum value not exceeding the rated current, reducing the impact on the power grid and prolonging the service life of equipment and valves. The frequency converter module developed by Revival Great Enterprise for washing machine motor has an IP55 waterproof rating, meeting the usage environment of washing machine motor, while its ultra-small size saves space in the device.
Permanent Magnet Motor Control Module: Adopts an international high-performance dedicated brushless DC motor driver chip, featuring high integration, compact size, comprehensive protection, clear and concise wiring, and high reliability. The driver employs a new PWM technology, enabling the brushless motor to operate at high speed with low vibration, low noise, good stability, and high reliability.
The display and interaction module is the window for users to interact with the washing machine.

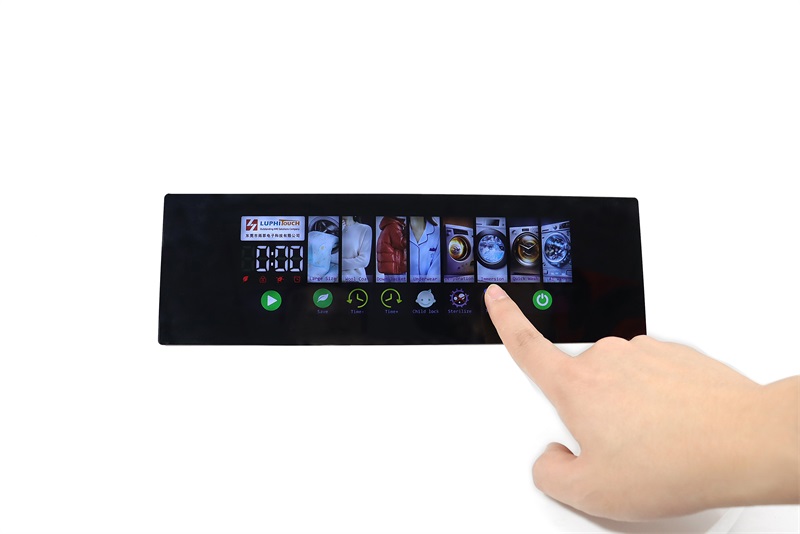

Touch Display Modules: Such as IMD touch modules, featuring sensitive touch response and clear display, enhancing the user's operating experience. Some high-end washing machines also adopt 3D tactile touchscreen technology, mimicking smartphone operation for a more intuitive and convenient experience.
Voice Interaction Module: With the development of smart home technology, voice interaction modules are gradually becoming standard equipment for washing machines. Users can control the start, pause, and selection of washing modes of washing machines through voice commands, achieving a more intelligent usage experience.
IV. Scanning Payment Module (For Self-Service Laundry Machines)
The scanning payment module is a key component for the self-service washing machine to achieve convenient payment.
Function: Responsible for identifying and processing payment codes, membership cards, and other information provided by users to enable the convenient use of self-service laundry machines.
Features: Compact size, fast scanning capability, sufficient scanning range, accurate decoding of various barcode and QR code formats. Equipped with waterproof, dustproof, and scratch-resistant properties to withstand harsh usage environments.
The drying module is one of the core components of a combined washing and drying washing machine.
Composition: mainly includes variable frequency fan, heating tube, sensor, air duct, etc.
Function: By working together with the frequency conversion fan and heating tube, it achieves rapid drying of clothes. At the same time, sensors monitor the humidity and temperature of clothes in real-time to ensure precise control during the drying process.
