A membrane switch, also known as a touch switch or keypad, is a type of miniature switch device made from thin film materials. It is commonly used in electronic devices and control panels. A membrane switch consists of multiple layers of film, including conductive films, insulating films, and graphic display films. By touching or pressing the switch, the circuit can be opened or closed. The following provides a detailed description of the definition, structure, working principle, and applications of a membrane switch.

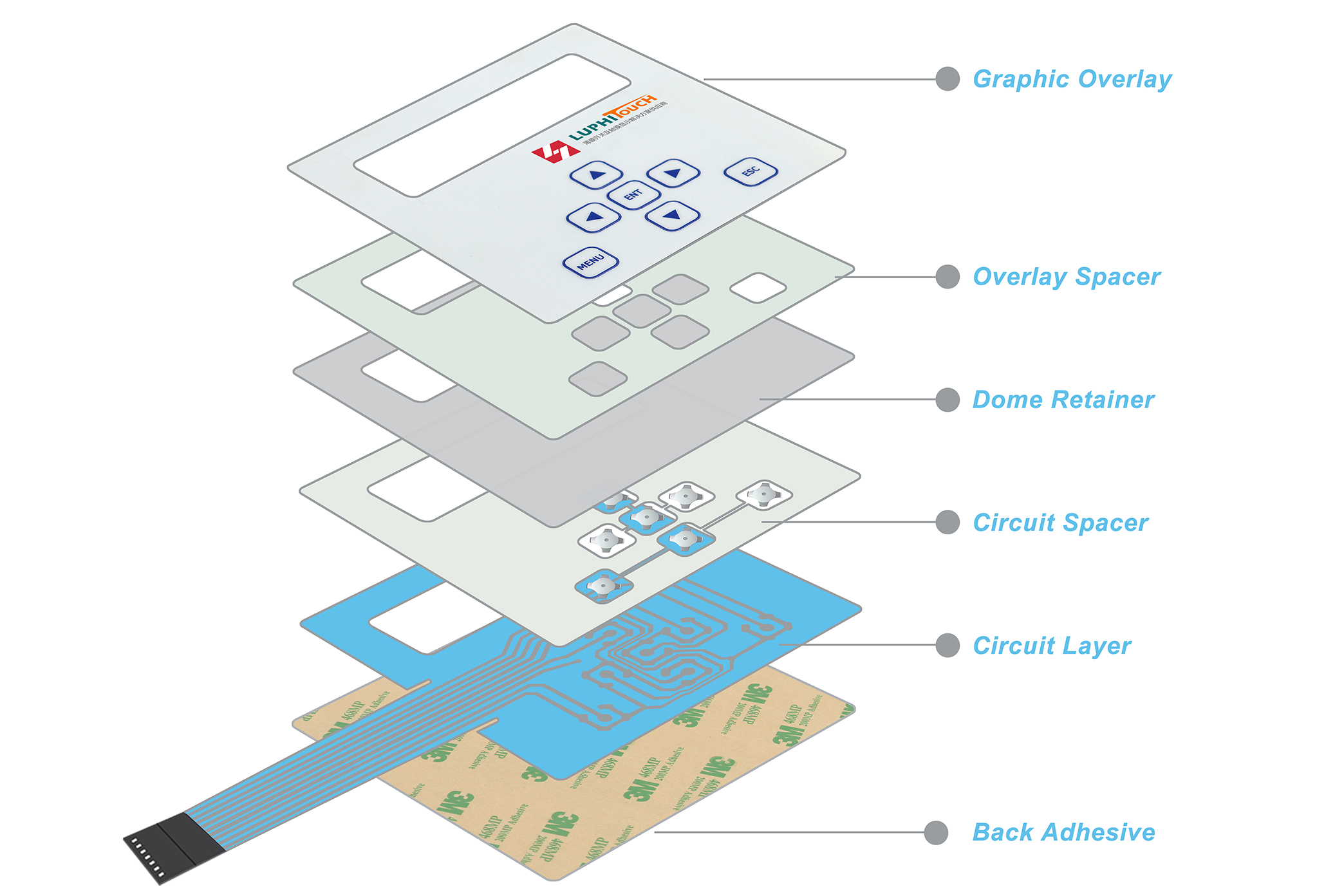

A membrane switch is a compact switching device composed of one or more layers of thin film materials. It typically includes the following parts:
The conductive film is a thin layer with electrical conductivity, usually made from materials such as conductive silver paste, copper, or carbon ink. This layer is essential for transmitting electrical signals and is known for its excellent conductivity and flexibility.
The spacer layer, also referred to as the dielectric layer, is typically made from a non-conductive film material. Its primary function is to isolate the conductive layers, preventing unintended electrical connections. When the switch is pressed, the spacer layer is compressed and breaks, allowing the circuit to be completed or interrupted.
The circuit pattern consists of the printed conductive and breaker layers arranged in specific configurations to form buttons, switches, indicator lights, and other functional elements. These patterns are customizable to meet various design and operational requirements.
The overlay is the topmost layer of the membrane switch, designed to protect the underlying conductive and spacer layers. It provides the user interface with clearly labeled buttons and tactile feedback, ensuring ease of use and durability.
When a user touches or presses a specific area on the membrane switch, the overlay pushes down on the spacer layer. This action causes the conductive film to come into contact with the circuit pattern beneath it, completing the electrical circuit and activating the corresponding function. Releasing the pressure separates the conductive layers, breaking the circuit and deactivating the function.
Membrane switches are widely used in various applications due to their reliability, compact size, and cost-effectiveness. Common applications include:
Consumer Electronics: Remote controls, microwaves, and washing machines.
Industrial Controls: Control panels, machinery interfaces, and instrumentation.
Medical Devices: Equipment panels and diagnostic machines.
Automotive Systems: Dashboard controls and infotainment systems.
