A membrane switch is a compact, efficient, and highly integrated user interface component used in modern electronic devices. It combines functionality, indicator elements, and instrument panels into a single structure. Thanks to its durability, ease of customization, and adaptability to various applications, the membrane switch has become a staple across industries such as medical equipment, industrial controls, consumer electronics, and more.
Membrane switches are highly regarded for their unique combination of functionality, durability, and design flexibility. Below are the key features in detail:
· High Integration: Membrane switches combine multiple functions—such as control keys, indicator elements, and even decorative panels—into a single, streamlined interface. This simplifies the device structure and reduces overall weight and size.
· Durability: Designed to endure millions of actuations, membrane switches offer a long service life. The use of robust materials, such as PET and PC, ensures resistance to physical wear and tear, making them suitable for demanding applications.
· Environmental Resilience: Membrane switches feature excellent resistance to moisture, dust, and other environmental factors. Some designs include waterproof or UV-resistant overlays, enabling operation in harsh outdoor or industrial environments.

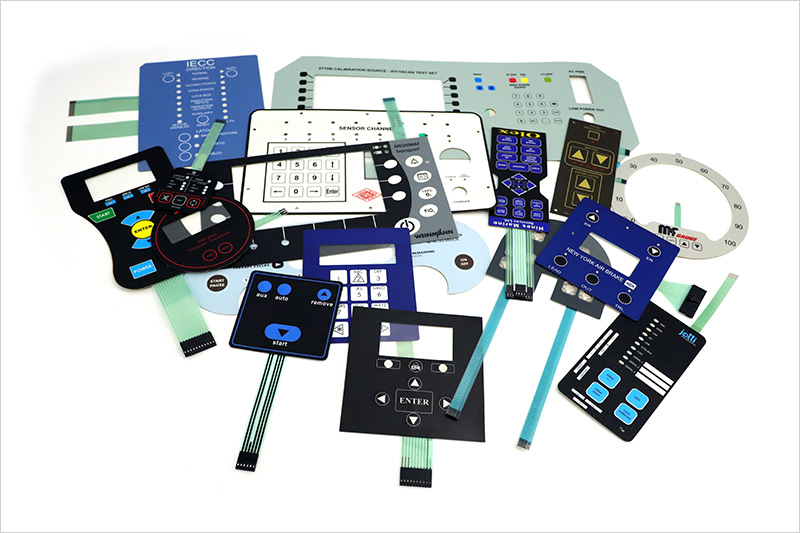

· Customization: From tactile feedback and backlighting to specific circuit designs and overlays, membrane switches can be tailored to fit diverse applications. They support a variety of shapes, colors, and finishes, ensuring seamless integration with the end product's design.

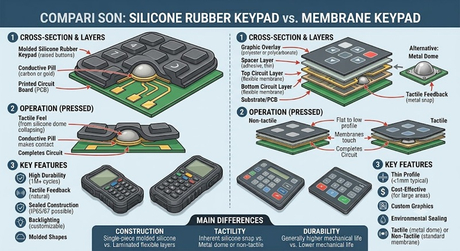

A membrane switch operates through a layered structure that enables precise signal transmission. To make this clearer, imagine using a microwave oven:
1. Pressing the Switch: When you press the "Start" button on the microwave's control panel, the top layer (graphic overlay) transfers the pressure to the tactile layer below. The tactile layer, often with a metal dome, deforms and connects with the circuit layer.
2. Signal Transmission: This action closes the circuit, sending an electrical signal to the microwave's control system to begin the cooking process.
3. Releasing the Switch: Once you release the button, the tactile layer returns to its original shape, breaking the circuit. The system is now ready for the next command.
This simple yet effective process ensures accurate signal transfer and consistent operation. Many membrane switches, like those in medical devices or industrial machinery, use tactile feedback, so the user feels a "click" upon activation, confirming the button has been pressed successfully.

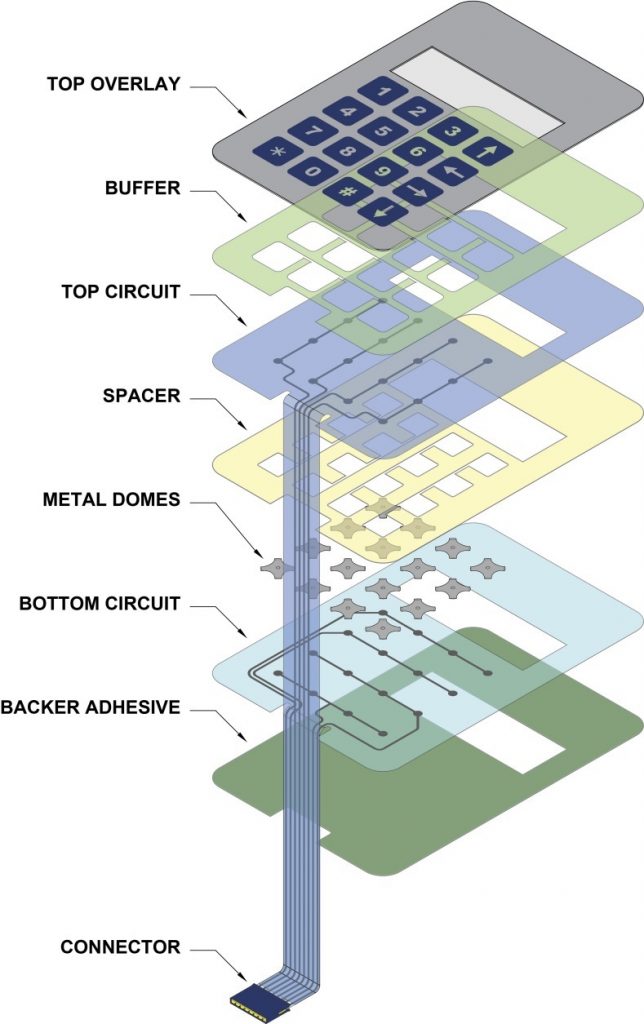

Membrane switches are composed of several crucial layers and components, each playing a vital role in their functionality, durability, and user experience. Let's dive deeper into these components:
The graphic overlay is the visible layer of the membrane switch—the one that users interact with directly. Beyond its visual appeal, it serves as the gateway for commands.
· Material: Made from durable PET or PC materials like Autotex or SABIC, chosen for their excellent wear resistance and ability to withstand harsh environments.
· Design Standards:
o The overlay must feature clear, sharp, and accurate printing, free from defects like pinholes or ink smudges.
o For outdoor use, overlays need UV protection to prevent fading or discoloration.
The circuit layer handles the electrical signaling, ensuring that user inputs are translated into device functions accurately.
· Common Types:
o PET Circuits: Affordable and widely used for basic applications.
o PCB Circuits: Sturdy and preferred for complex or high-stability needs.
o FPC Circuits: Thin, flexible, and ideal for compact devices requiring intricate designs.
· Key Requirements: No electrical issues like short circuits or cold solder joints. Precision is paramount to ensure device reliability.
While the graphic overlay and circuit layer form the core, internal components optimize functionality.
· Metal Domes: Add tactile feedback, providing a satisfying "click" when pressed. This ensures users know their input has been registered.
· LEDs: Provide backlighting or indicate status, essential in low-light environments.
· Connectors: Bridge the membrane switch with the device's control board seamlessly.
· Additional Features: Advanced models may include resistors, capacitors, or even a PCBA (Printed Circuit Board Assembly) for enhanced capabilities.
Each layer and component is meticulously designed to ensure a harmonious operation. For instance, in a medical device, the overlay feature sterilizable materials, the circuit use highly stable PCB, and internal LEDs could provide precise indicator lighting—all to meet strict industry standards.
Membrane switches come in various types, each designed to meet unique functional and environmental requirements. Understanding these variations helps in selecting the right solution for specific applications:
A fundamental distinction in membrane switches lies in whether they provide feedback during operation.
· Tactile Switches deliver a noticeable click or physical response when pressed, making them ideal for applications where user confirmation is critical, such as industrial machinery or medical devices.
· On the other hand, Non-tactile Switches offer a smooth, quiet interface without feedback, making them suitable for consumer electronics or modern appliances where silent operation is valued.
For applications requiring clear visibility in low-light environments, backlit switches are a practical choice. These switches integrate LED or fiber-optic elements to illuminate buttons or graphics, ensuring seamless operation in settings like vehicle dashboards, outdoor equipment, or handheld medical devices used during nighttime operations.
In environments exposed to moisture, humidity, or even direct water contact, waterproof membrane switches excel. Their sealed construction makes them a reliable choice for marine controls, outdoor kiosks, and industrial equipment operating in challenging conditions.
Offering a sleek and modern design, capacitive touch switches respond to touch without the need for physical pressure. These are commonly found in high-tech applications such as smart home systems, advanced automotive panels, and cutting-edge medical devices, where precision and aesthetics are equally important.
Each type of membrane switch is engineered to perform in its specific application environment. Whether prioritizing durability, user feedback, or advanced functionality, choosing the right type ensures reliable performance and enhances the user experience across a range of industries.
Membrane switches are versatile, finding applications across numerous industries due to their durability, flexibility, and user-friendly design. Here are some key areas where membrane switches are commonly used:

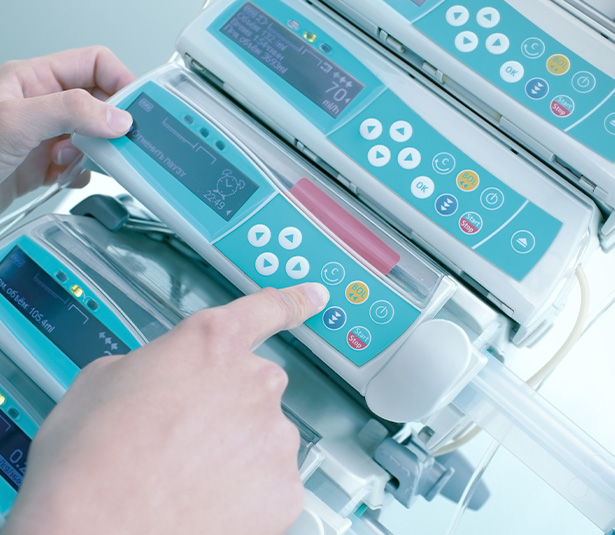

In the medical field, membrane switches are valued for their hygiene, ease of cleaning, and reliability. They are commonly used in diagnostic equipment, patient monitoring systems, and portable medical devices where intuitive operation and high durability are essential.
Designed to endure challenging environments, membrane switches are a staple in industrial settings. Their resistance to moisture, dust, and chemicals makes them ideal for control panels, machinery interfaces, and equipment requiring long-lasting performance under tough conditions.
With their sleek and customizable designs, membrane switches enhance the aesthetic and functionality of household appliances, remote controls, and wearable devices. They provide intuitive user interfaces while keeping devices lightweight and compact.
In critical systems where reliability is non-negotiable, membrane switches excel. They are used in automotive dashboards, control panels, and aerospace instruments, offering precise operation, durability, and the ability to withstand extreme conditions.
Membrane switches are indispensable components in modern electronic devices, offering reliability, flexibility, and advanced functionality. Whether you need a simple tactile switch or a customized solution for a specialized application, understanding their features and options is essential for making the right choice.
At Luphi Electronics, we specialize in crafting high-quality, custom membrane switches tailored to industry needs. With a decade of expertise, we're here to provide guidance and deliver solutions that meet your requirements.
