Rubber Keypads vs. Membrane Switches: What's the Difference?

Choosing the right user interface component is critical for product success, influencing everything from user experience to environmental resilience. Among the most common choices for control panels and input devices are rubber keypads and membrane switches, often confused due to their similar appearances in certain applications. The fundamental difference between rubber keypads and membrane switches lies in their key actuation mechanism and tactile feedback: rubber keypads use molded silicone domes that physically deform to provide a noticeable tactile bump, whereas membrane switches typically rely on the flexing of thin, flat plastic layers or metal domes for a less pronounced tactile response. Understanding these core distinctions is essential for engineers and designers to select the optimal solution for their specific project requirements.

This article will delve into the distinct definitions and working principles of rubber keypads and membrane switches, compare their respective advantages and disadvantages, analyze their typical applications, and highlight key design considerations to help clarify which technology is best suited for your next product.

Table of Contents:

1. What is a Rubber Keypad and How Does it Work?

2. What is a Membrane Switch and How Does it Work?

3. What are the Core Differences in Tactile Feedback and User Experience?

4. How Do They Compare in Terms of Durability and Environmental Resistance?

5. What are the Cost and Manufacturing Differences Between the Two?

6. In Which Applications Does Each Technology Excel?

What is a Rubber Keypad and How Does it Work?

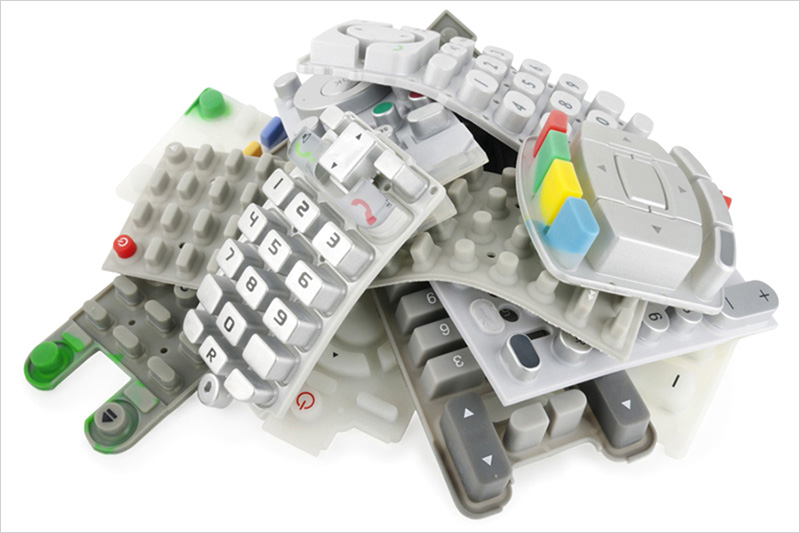

A rubber keypad, commonly made from molded silicone rubber, functions as a tactile input device where the key's mechanical action and tactile feedback are integral to the rubber material itself. Its design centers around a resilient, molded elastomer sheet that often features integrated conductive elements.

A rubber keypad works by using flexible silicone domes that act as the key's spring and tactile mechanism. When pressed, the dome collapses, and a conductive carbon or gold pill attached to its underside makes contact with a corresponding circuit trace on a PCB or flexible circuit board, completing an electrical circuit to register the keystroke. The key then springs back to its original position as the dome reforms, providing distinct tactile feedback.

Key Components of a Rubber Keypad:

• Silicone Rubber Keypad (Dome Array): A single, molded sheet of silicone rubber containing individual dome-shaped structures for each key. These domes provide the tactile feedback and return force.

• Conductive Pills: Small, typically carbon or gold-coated, conductive pads attached to the underside of each dome.

• Printed Circuit Board (PCB) or Flexible Circuit: The electronic layer underneath the keypad with conductive traces that register the key presses when contacted by the conductive pills.

• Optional Components: Plastic keycaps over the domes, light guides for backlighting, or protective coatings.

What is a Membrane Switch and How Does it Work?

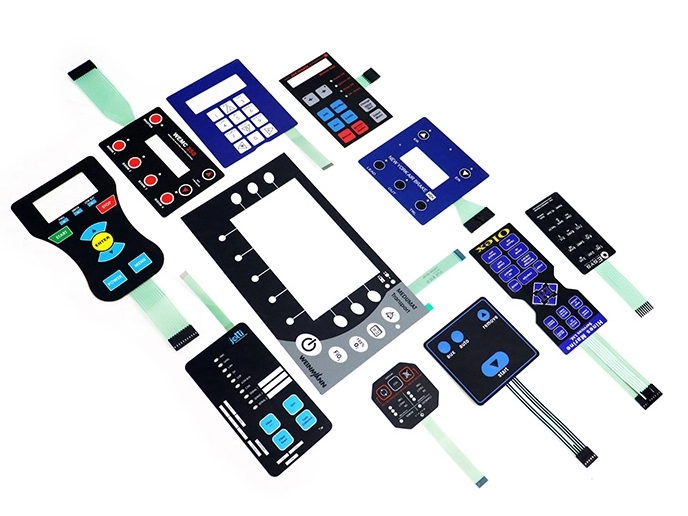

A membrane switch is a low-profile, human-machine interface that typically consists of several thin, flexible layers or "membranes" sealed together, incorporating printed circuitry and often an overlay with graphics. Unlike rubber keypads, its actuation relies on the flexing of these thin layers.

A membrane switch operates by pressing a flexible top layer (graphic overlay) which forces a conductive pad on its underside through an opening in a spacer layer to make contact with a corresponding conductive trace on a lower circuit layer, thereby completing an electrical circuit. This action typically provides very little tactile feedback, though some designs incorporate metal domes for a crisper "click."

Key Components of a Membrane Switch:

• Graphic Overlay: The top, visible layer, typically made of polycarbonate or polyester, with printed legends, colors, and often textured finishes.

• Adhesive Layer (Top): Bonds the graphic overlay to the circuit layer.

• Top Circuit Layer: A thin, flexible film (e.g., polyester) with conductive traces printed on its underside.

• Spacer Layer: A non-conductive layer with cutouts that creates a gap between the top and bottom circuit layers. This gap ensures the circuit is open until a key is pressed.

• Bottom Circuit Layer: Another flexible film with conductive traces printed on its top surface.

• Adhesive Layer (Bottom): Bonds the bottom circuit layer to the product housing or a rigid PCB.

• Optional Components: Embossed key areas, integrated LEDs, or metal domes for tactile feedback.

What are the Core Differences in Tactile Feedback and User Experience?

The most significant and immediate difference between rubber keypads and membrane switches, from a user's perspective, lies in their tactile feedback and the overall user experience provided during actuation. This distinction heavily influences application suitability.

Rubber keypads offer a distinct, discernible tactile "snap" or "bump" as the silicone dome collapses, providing clear feedback that a key press has registered. In contrast, standard membrane switches typically provide minimal to no tactile feedback, relying on visual cues, though some variants incorporate metal domes to achieve a crisper, but still relatively shallow, click.

Here's a breakdown:

• Rubber Keypads:

• Tactile Feedback: Excellent. The inherent elasticity and molded dome shape of silicone create a characteristic tactile snap. Users can clearly feel when a key has actuated.

• Key Travel: Moderate. There's a noticeable distance the key travels before actuation, contributing to the tactile experience.

• Feel Customization: The tactile force, snap ratio, and travel distance can be extensively customized by altering the dome's geometry, webbing, and silicone hardness.

• User Experience: Provides confident input, reduces typing errors, and is generally preferred for applications requiring frequent or precise key presses.

• Membrane Switches:

• Tactile Feedback (Standard): Very minimal or "mushy." The user feels little more than the flexing of the overlay.

• Tactile Feedback (with Metal Domes): Improved. Metal domes embedded beneath the overlay provide a crisp, audible "click" and a more definite tactile response. However, this feedback is still generally shallower than that of a rubber dome.

• Key Travel: Minimal. Membrane switches typically have very short key travel.

• Feel Customization: Limited compared to rubber keypads. Tactile feel is mainly dictated by the metal dome choice (if any).

• User Experience: Best suited for applications where keys are pressed infrequently, or where visual feedback (e.g., LED illumination) is sufficient. Can be less satisfying for data entry.

How Do They Compare in Terms of Durability and Environmental Resistance?

Durability and environmental resistance are critical factors, especially for industrial, outdoor, or hygiene-sensitive applications. Both rubber keypads and membrane switches offer good protection, but their underlying material properties and construction methods lead to distinct performance characteristics.

Rubber keypads generally offer superior impact absorption, chemical resistance, and long-term durability against repeated physical stress due to the inherent resilience of silicone, and can achieve higher IP ratings. Membrane switches, while highly resistant to dust and spills with their sealed overlays, can be more susceptible to localized punctures, abrasion of surface legends, or delamination over extreme temperatures.

Here's a comparison:

What are the Cost and Manufacturing Differences Between the Two?

The cost and manufacturing processes for rubber keypads and membrane switches present distinct differences, heavily influencing their suitability for various production volumes and budget constraints. Understanding these factors is crucial for project planning.

Rubber keypads typically involve a higher initial tooling cost due to the precision required for silicone molding, but offer lower unit costs for high-volume production. Membrane switches, conversely, have lower tooling costs and are ideal for rapid prototyping and low-to-medium volume runs, being primarily a printing and laminating process rather than molding.

Here's a breakdown of cost and manufacturing differences:

In Which Applications Does Each Technology Excel?

Both rubber keypads and membrane switches serve vital roles in various industries, but their distinct characteristics make them excel in different application contexts where specific performance metrics are prioritized.

Rubber keypads excel in applications demanding superior tactile feedback, high environmental sealing (water, dust, chemicals), impact resistance, and customizable aesthetics, such as industrial controls, medical devices, automotive dashboards, and rugged consumer electronics. Membrane switches are best suited for projects requiring ultra-thin profiles, sleek aesthetics, easy-to-clean flat surfaces, and cost-effectiveness for simple, infrequent input, common in home appliances, fitness equipment, and entry-level consumer gadgets.

Here's a breakdown of their primary application niches:

Conclusion

The choice between a rubber keypad and a membrane switch hinges on a thorough understanding of their fundamental differences in actuation mechanism, tactile feedback, and manufacturing processes. Rubber keypads, with their silicone domes, offer superior tactile response, robust environmental sealing, and impact resistance, making them ideal for demanding applications where durability and a clear user experience are paramount. Membrane switches, conversely, excel in applications prioritizing ultra-thin profiles, sleek aesthetics, and cost-effectiveness for simpler interfaces where extensive tactile feedback is not a primary requirement.

By carefully evaluating factors such as required tactile feel, environmental exposure, expected product lifespan, cleaning protocols, and project budget, designers and engineers can confidently select the input technology that best aligns with their product's unique specifications and target user experience.

At LuphiTouch, we specialize in providing tailored human-machine interface solutions, including both high-quality silicone rubber keypads and precision membrane switches. Our expertise allows us to guide you through the selection process, ensuring your project benefits from the optimal blend of performance, durability, and user experience, engineered to your exact specifications
