In our increasingly digital world, touch screens have become the primary way we interact with everything from smartphones to industrial machinery. Yet, have you ever considered that the "touch" experience on your phone might be fundamentally different from that on an ATM? Choosing the wrong touch screen technology for an application can lead to frustrating user experiences, poor performance in specific environments, or unnecessary costs. It's not a one-size-fits-all solution. Behind every intuitive tap, swipe, and pinch lies diverse touch screen technologies, each with unique mechanisms, advantages, and ideal applications. Understanding the "types of touch screens" is key to appreciating their versatility and selecting the perfect interface for any device.
I remember working on a project where the client initially insisted on a budget-friendly resistive screen for an outdoor kiosk. They quickly realized its limitations in sunlight and and with gloved users. This experience underscored the critical importance of selecting the right touch technology. Let's delve into the fascinating world of touch screens and uncover what makes each type distinct.
Surface Acoustic Wave (SAW) Touch Screens: The Sound of Touch
Other Touch Screen Technologies (Briefly): Optical Imaging & APR
A touch screen is more than just a display; it's a dynamic input device that bridges the gap between digital information and human interaction. It allows us to directly manipulate on-screen elements with a simple touch.
A touch screen is an input and output device that enables users to interact directly with a computer or other electronic display by touching the screen with a finger or stylus. Essentially, it works by detecting the location of a touch event and converting that physical interaction into an electrical signal that the device can interpret.
At its core, all touch screens operate on a similar principle: a sensor layer, typically overlaid on a visual display, detects a physical touch. This detection is then translated into X and Y coordinates that the device's software understands, allowing it to respond to gestures, select options, or input data. From early, bulky versions to the sleek panels we use today, touch screens have constantly evolved to become more intuitive and responsive.
Touch screen technology isn't a single entity; it's a family of different approaches, each with its own way of detecting your touch. While they all serve the same basic purpose, their underlying principles vary significantly, influencing how they perform and where they're best used.
The main types of touch screens include Resistive, which senses pressure; Capacitive (both Surface and Projected), which detects electrical changes from conductive objects like your finger; Surface Acoustic Wave (SAW), which uses ultrasonic vibrations; and Infrared (IR), which identifies interruptions in light beams. Each type offers distinct advantages in terms of clarity, durability, and input method.
Once the most common touch screen technology, resistive touch screens are known for their ability to respond to pressure from virtually any object, making them highly versatile in specific applications.
Resistive touch screens consist of multiple layers, typically two transparent conductive layers separated by a small gap. When pressure is applied, these layers come into contact, registering a change in electrical resistance at the point of touch, allowing the device to determine the X and Y coordinates.
The core principle behind a resistive touch screen involves a voltage divider. Imagine two transparent, electrically conductive layers, often made of indium tin oxide (ITO), placed one above the other, separated by tiny insulating dots. The top layer is flexible, while the bottom is typically rigid glass.
Theoretical Basis: When you press the screen, the flexible top layer bends and makes physical contact with the bottom layer. This contact changes the electrical resistance between the two layers at that specific point. The touch screen controller measures these changes in voltage across the X and Y axes to precisely locate the touch.
Structure: A typical resistive touch screen "sandwich" includes a top polyester (PET) layer with a conductive coating, a spacer layer (often made of tiny dots) to create an air gap, and a bottom glass layer also coated with a conductive material. This layered design allows for the necessary physical deformation to register a touch.
Input Flexibility: One of the biggest strengths of resistive screens is their ability to work with virtually any input method. Whether you use a bare finger, a gloved hand, a stylus, or even a pen, the screen will respond as long as sufficient pressure is applied.
Cost-Effective: Generally, resistive touch screens are cheaper to manufacture than many other types, making them a budget-friendly option for various devices.
Environmental Resilience: Their sealed nature can make them quite resistant to dust and liquid ingress, as the sensing layers are typically protected within the assembly.
Optical Clarity: Due to the multiple layers and the gap between them, resistive screens tend to have lower light transmission (often around 75%) and can appear duller or less vibrant compared to other technologies.
Durability: The flexible top layer is susceptible to scratches or damage from sharp objects. Over time, repeated pressure can also lead to wear.
Single-Touch: Most standard resistive screens are designed for single-touch input only, meaning they cannot support multi-touch gestures like pinch-to-zoom.
Actuation Force: They require a noticeable amount of pressure to register a touch, which can sometimes feel less intuitive than the lighter touch of capacitive screens.
Resistive screens are commonly found in:
Industrial control panels
Point-of-sale (POS) systems
Older medical devices
Some navigation systems
Early generation mobile devices
They are often chosen for applications where gloved operation is essential, or where cost-effectiveness and basic functionality are prioritized over pristine optical clarity and multi-touch capabilities.
Capacitive touch screens, particularly projected capacitive (PCAP) technology, have revolutionized modern electronics, offering the multi-touch capabilities and crisp visuals we expect from smartphones and tablets.
Capacitive touch screens rely on the electrical properties of the human body to detect touch. They work by sensing a disturbance in an electrostatic field when a conductive object, such as a finger, makes contact with the screen's surface, enabling highly accurate multi-touch input and superior optical clarity.
Capacitive technology is broadly divided into two main categories:
Mechanism: These screens have a single conductive coating (often Indium Tin Oxide or ITO) on a glass substrate. When a bare finger touches the screen, it draws a tiny amount of electrical current from each of the four corners of the screen. Sensors at the corners measure the relative current drawn from each to determine the touch location.
Advantages: Offer good optical clarity and a durable glass surface.
Disadvantages: Typically support only single-touch input and are sensitive to electromagnetic interference (EMI). They also only work with a bare finger or a specialized conductive stylus.
Applications: Often found in ATMs and older public information kiosks.

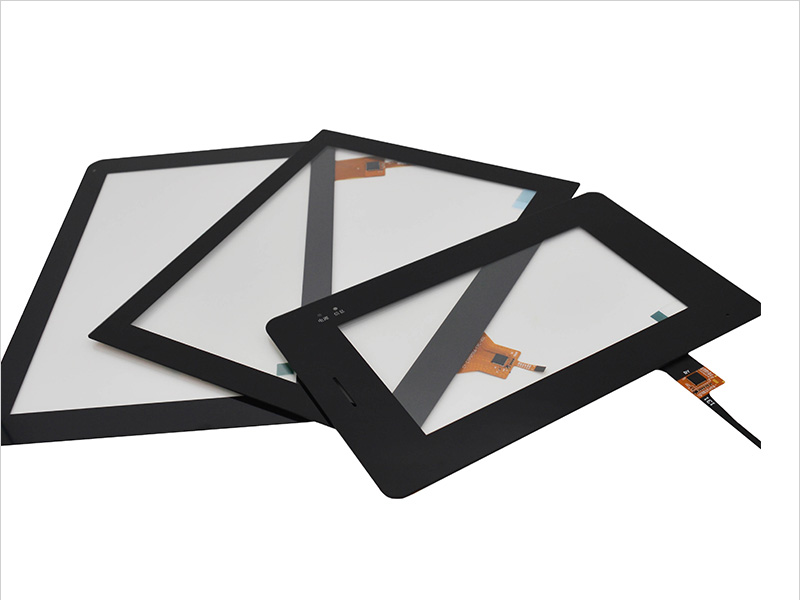

Mechanism: This is the dominant capacitive technology today. PCAP screens use an embedded grid of microscopic wires or conductive patterns (X and Y electrodes) within or beneath a glass overlay. This grid creates a consistent electrostatic field. When a conductive object like a bare finger or conductive stylus approaches or touches the surface, it changes the capacitance at that specific grid intersection. This change is detected by the controller, which can pinpoint the exact touch location.
Advantages:
Multi-touch Capability: A key differentiator, allowing for gestures like pinch-to-zoom, rotate, and multi-finger input.
Excellent Optical Clarity: As there are fewer layers and no pressure is required, PCAP screens offer superior light transmission and vibrant display quality.
High Durability: The outer layer is typically robust glass, making them highly scratch-resistant and durable.
Responsiveness: Known for their fast and precise touch response.
Disadvantages: Generally more expensive than resistive, and usually require a bare finger or conductive stylus (though advanced PCAP can work with thin gloves). They can also be affected by large water droplets or strong electromagnetic fields.
Applications: Smartphones, tablets, interactive kiosks, automotive displays, modern industrial HMIs, medical equipment, digital signage.
The superior user experience offered by PCAP, primarily due to its multi-touch capabilities and excellent optical clarity, has made it the standard for most modern consumer and high-end professional devices. Its responsiveness and support for intuitive gestures have redefined how we interact with technology.
Stepping beyond electrical properties, Surface Acoustic Wave (SAW) technology offers a unique approach to touch detection, utilizing ultrasonic waves that ripple across the screen's surface.

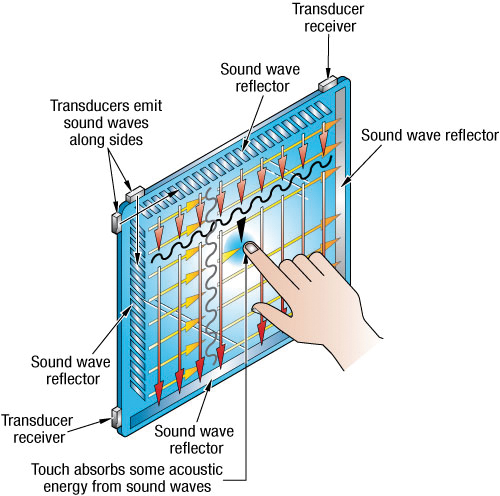

Surface Acoustic Wave (SAW) touch screens employ transducers to generate ultrasonic waves that travel across the glass display. When the screen is touched by a soft, sound-absorbing object like a finger or gloved hand, a portion of these waves is absorbed, and the location of this absorption is detected by receiving transducers, pinpointing the touch.
A SAW touch screen comprises a pure glass panel with transmitting transducers positioned along two edges and receiving transducers along the opposite two edges. Reflectors are placed around the perimeter to guide the ultrasonic waves across the display surface.
How it Works: The transmitting transducers convert electrical energy into inaudible ultrasonic waves that propagate across the glass. These waves are then reflected by arrays of reflectors towards the receiving transducers. When a soft, sound-absorbing object (like a finger or a gloved hand) touches the screen, it absorbs some of the ultrasonic waves. The receiving transducers detect this absorption or dampening of the waves, and the controller triangulates the position of the touch based on the time delay or signal attenuation.
Practical Impact: This method means there are no metallic layers on the viewing area, resulting in exceptional optical clarity.
Optical Clarity: Since the actual display surface is pure glass with no conductive coatings, SAW screens offer outstanding light transmission and vibrant image quality.
Durability: The robust glass surface is highly scratch-resistant and very durable, making them suitable for public environments.
Input Flexibility: Works well with fingers, gloved hands, and soft styluses, as long as the material can absorb the ultrasonic waves.
Excellent Responsiveness: Provides a smooth and accurate touch experience.
Environmental Sensitivity: The biggest drawback is their susceptibility to contaminants on the screen surface. Water droplets, dirt, grease, or even heavy dust can absorb the ultrasonic waves, leading to false touches or non-detection.
Non-detection of Hard Objects: They cannot detect touches from hard objects like a credit card, a hard plastic stylus, or a fingernail, as these materials do not absorb sound waves.
Bezel Requirement: They require a bezel around the display to house the transducers and reflectors, which can limit bezel-less design aesthetics.
SAW touch screens are commonly used in:
ATMs
Public information kiosks
Arcade games
Medical imaging equipment
Larger displays in controlled indoor environments where clarity and durability are paramount.
Infrared (IR) touch screens offer a straightforward method of touch detection, creating an invisible grid of light beams around the display's perimeter that are interrupted by a touch.

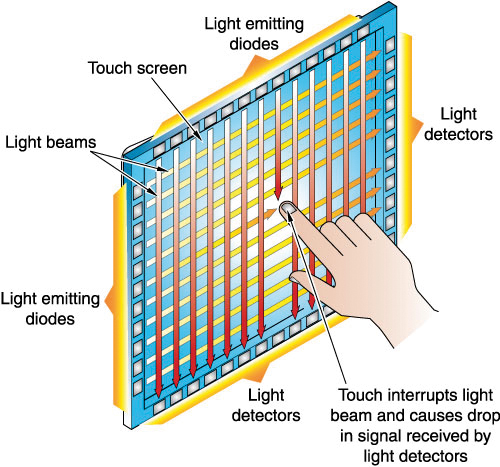

Infrared (IR) touch screens utilize a grid of infrared light-emitting diodes (LEDs) and photodetectors positioned around the display's bezel. When an object, like a finger or stylus, breaks these invisible light beams, the system detects the interruption's coordinates, thereby registering the touch event.
IR touch screens do not have an overlay on the actual display area. Instead, they rely on components embedded in a frame or bezel surrounding the screen.
How it Works: Infrared light-emitting diodes (IR LEDs) are placed along two adjacent sides of the bezel, and photodetectors are placed on the opposite two sides. This setup creates an invisible grid of infrared light beams just above the display surface. When an object (finger, gloved hand, stylus, etc.) touches the screen, it breaks these light beams. The photodetectors detect where the beams were interrupted, and the system calculates the X and Y coordinates of the touch.
Practical Impact: Because there's no layer on the display itself, IR screens offer very high optical clarity and durability of the viewing area.
High Optical Clarity: Since there is no overlay on the display surface, the image quality is pristine, with maximum light transmission.
Exceptional Durability: The display surface itself is not part of the touch detection mechanism, making it highly resistant to scratches and wear.
Input Flexibility: Works with literally any object that can interrupt the light beam – bare finger, gloved hand, pen, credit card, etc. This makes them ideal for environments where gloves are often worn.
Scalability: Well-suited for very large displays as the technology scales easily.
Multi-Touch Support: Newer IR technologies support multi-touch capabilities.
Environmental Sensitivity: Can be affected by direct sunlight or very strong ambient light, which can interfere with the IR beams. Dust or debris buildup on the bezel (where the LEDs and detectors are) can also cause false touches.
Bezel Requirement: Requires a raised bezel around the display to house the IR components, which might not suit flush-mount or modern aesthetics.
Potential for Ghosting: A large object or hand hovering close to the bezel might inadvertently break beams, causing false touches.
Infrared touch screens are frequently found in:
Large interactive displays (e.g., interactive whiteboards)
Digital signage
Kiosks
Industrial automation and public environments where gloved operation or durability is key.
While the previously discussed types dominate the market, several other touch screen technologies exist, each offering unique strengths for specialized applications or different design philosophies.
Mechanism: Optical imaging touch screens utilize two or more infrared cameras (or optical sensors) placed in the corners or along the edges of the screen. These cameras detect shadows or disruptions created when a finger or object touches the surface. Sophisticated algorithms then triangulate the touch location.
Advantages:
Good for Very Large Displays: Highly scalable, making them suitable for interactive whiteboards and large format displays.
Multi-Touch: Easily supports multiple touch points.
Clarity & Durability: No overlay on the display, offering excellent clarity and good durability.
Input Versatility: Works with any object.
Disadvantages: Can be affected by ambient lighting conditions, and the cameras/sensors may add bulk to the bezel.
Applications: Interactive whiteboards, large digital signage, public display tables.
Mechanism: APR technology senses the acoustic vibrations created when a finger or stylus touches a glass display panel. Four small transducers attached to the back of the glass pick up the sound waves. The system digitizes these sounds and compares them to a library of pre-recorded sound profiles for every position on the screen, thus identifying the touch location.
Advantages:
Durable: A pure glass surface, highly resistant to scratches and damage.
Clear: Excellent optical clarity with no overlay.
Input Versatility: Works with fingers, gloves, styluses, and even credit cards.
Contaminant Resistant: Less affected by surface contaminants (liquids, dirt) compared to SAW.
Disadvantages: Currently, touch-and-hold or drag-and-hold might not be possible, as sound is only generated at the point of initial contact.
Applications: Some ruggedized displays, ATMs, public kiosks where durability and input flexibility are critical.
With such a vast array of touch screen technologies available, how do you decide which one is best for your specific project or device? The optimal choice depends on a careful evaluation of various factors.
Selecting the ideal touch screen technology requires assessing crucial factors such as the required input method (finger, glove, stylus), environmental conditions (dust, moisture, light), optical clarity needs, multi-touch requirements, durability expectations, and overall budget constraints to ensure optimal performance and user experience.
When making your decision, consider the following:
Input Method: Will users primarily operate the screen with a bare finger, a gloved hand, or a stylus? This is a primary driver in selecting between resistive, capacitive, IR, or SAW.
Environmental Conditions: Where will the device be used? Will it be exposed to dust, moisture, liquids, chemicals, extreme temperatures, or direct sunlight? Technologies like resistive and IR tend to perform better in harsh industrial or outdoor conditions than SAW, which is sensitive to surface contaminants.
Optical Clarity & Aesthetics: How important is vivid display quality and a sleek, modern, bezel-less appearance? PCAP generally offers the best clarity and design flexibility, followed by SAW and IR (due to no overlay on the screen).
Multi-Touch & Gestures: Is multi-touch capability (like pinch-to-zoom, rotate) essential for the user interface, or is simple single-touch sufficient? PCAP excels here, with newer IR and Optical also supporting it.
Durability & Lifespan: How much wear and tear will the screen endure? Is scratch resistance critical? Glass-based solutions (PCAP, SAW, IR) generally offer superior durability compared to the flexible top layer of resistive screens.
Cost vs. Performance: What is the budget for the touch screen, and how does it balance against the desired performance, features, and user experience? Resistive is typically the most cost-effective, while advanced PCAP can be more expensive.
Integration with Overall Design: How does the touch screen's physical design (e.g., presence/absence of a bezel, thickness) fit into the product's enclosure and aesthetic goals?
Typical User: Who will be using the screen? Are there specific accessibility needs, or a requirement for robust feedback (tactile)?
Touch screens are more than just glass panels; they are sophisticated interfaces powered by diverse technologies, each with unique strengths and ideal applications. From the robust, pressure-activated resistive screens to the sleek, multi-touch capacitive displays and the clear, sound-based SAW systems, understanding these "types of touch screens" is crucial for anyone involved in product design, engineering, or simply curious about the technology shaping our digital interactions. By carefully considering the specific demands of an application, you can select the touch screen that not only meets functional requirements but also enhances the overall user experience.
