Factory floors, outdoor terminals and heavy machinery place the harshest demands on human-machine interfaces. Dust, metal particles, cutting fluids, temperature swings and 24/7 operation quickly degrade consumer-grade keypads, while low-light night shifts and dim equipment cabins make unilluminated controls difficult and unsafe to operate. Backlit membrane switches built to industrial specifications solve both problems: they deliver fully sealed environmental protection and uniform, reliable LED illumination, all while maintaining the long service life and design flexibility of standard membrane switches.
Unlike consumer-grade illuminated keypads designed for light indoor use, industrial-grade backlit membrane switches are engineered from the material level upward to withstand continuous exposure to harsh conditions. For industrial automation, construction machinery, food processing and energy equipment, they have become the preferred alternative to traditional mechanical keypads, offering better sealing, lower total cost of ownership and custom form factors.
Industrial-grade backlit membrane switches are not just standard panels with added LEDs. They are purpose-built interfaces that meet specific performance thresholds for environmental resistance, mechanical durability and illumination stability. The key differences from consumer-grade products lie in five core areas:
Sealing performance: Full perimeter sealing with industrial-grade adhesives, achieving IP65 to IP68 ingress protection
Temperature tolerance: Stable operation across -40°C to +85°C, with materials rated for extended temperature cycling
Mechanical durability: Rated for 5–8 million actuations, with vibration-resistant construction
Backlight reliability: LED systems rated for 80,000–100,000 hours of continuous operation
Material resistance: Overlays and adhesives resistant to oils, coolants, UV radiation and industrial cleaning agents
Consumer-grade panels typically only meet IP54 protection and 0°C to 50°C operating ranges, and will fail rapidly in industrial environments.
The table below summarizes standard performance grades for industrial backlit membrane switches and their typical use cases:
Performance Parameter | Standard Industrial Grade | Heavy-Duty Outdoor Grade | Ultra-Heavy Wash-Down Grade |
|---|---|---|---|
IP Protection Rating | IP65 (dust-tight, water-jet resistant) | IP67 (dust-tight, temporary immersion) | IP68 (dust-tight, continuous immersion) |
Operating Temperature | -20°C to +70°C | -40°C to +85°C | -40°C to +85°C |
Backlight Technology | Side LED + Light Guide Film (LGF) | Side LED + LGF or direct per-key LED | Direct per-key LED with reinforced sealing |
Actuation Lifespan | 5 million cycles minimum | 5–8 million cycles | 8 million cycles minimum |
Overlay Material | Abrasion-resistant PET | UV-stabilized PC | Chemical-resistant PC |
Vibration Resistance | 10–500Hz, 2g, 2 hours per axis | 10–2000Hz, 5g, 3 hours per axis | 10–2000Hz, 5g, 3 hours per axis |
Typical Applications | Indoor CNC machines, factory automation | Outdoor terminals, construction machinery | Food processing, chemical plants, marine equipment |
For official definitions and test methods of ingress protection ratings, refer to the IEC 60529 IP rating standard.
explore our full industrial product line
Industrial-grade backlit membrane switches are deployed across a wide range of harsh-environment applications, each with specific requirements.

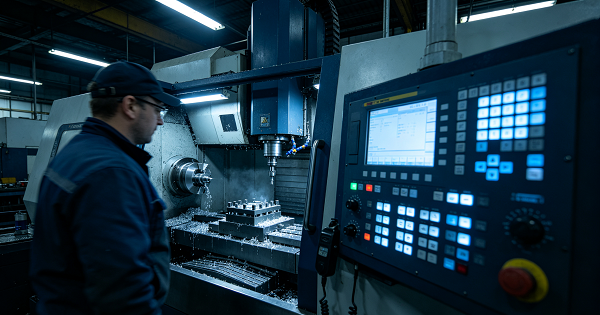

Indoor manufacturing environments expose panels to metal dust, cutting fluids, oil mist and temperature fluctuations. Operators often work night shifts and wear work gloves.
Recommended solution: IP65 sealed side-LED LGF backlit panels with metal dome tactile feedback. Crisp actuation confirms key press even through gloves, and uniform backlighting ensures visibility in dimly lit production areas.
Outdoor terminals and construction machinery face rain, UV radiation, extreme temperatures and heavy vibration.
Recommended solution: IP67 sealed panels with UV-stabilized PC overlays and vibration-resistant circuits. Wide-temperature LEDs and adhesives ensure reliable operation year-round.
Food and pharmaceutical production requires regular high-pressure wash-down and chemical disinfection.
Recommended solution: IP67/IP68 fully sealed panels with chemical-resistant PC overlays. Reinforced edge sealing prevents water ingress during cleaning, and smooth seamless surfaces can be wiped and disinfected thoroughly.
Power generation and distribution equipment operates 24/7 in a wide range of temperatures, often in outdoor or semi-outdoor locations.
Recommended solution: IP65/IP67 panels with wide-temperature components and long-life LEDs. Status-indicating backlighting with different colors for different operating states improves operational safety.
Marine and offshore applications face continuous humidity, salt spray and vibration.
Recommended solution: IP67/IP68 sealed panels with corrosion-resistant materials and conformal-coated circuits. Salt-spray tested construction ensures long-term reliability in coastal environments.
Industrial-grade backlit membrane switches require targeted design and manufacturing controls to deliver consistent performance in harsh conditions.
The sealing system is the most critical element of industrial performance. High-quality panels use continuous perimeter gaskets and integrated lamination rather than simple edge adhesive, creating a uniform barrier around the entire panel and every cutout. Cable exits are sealed with epoxy or silicone dams to prevent ingress along the circuit tail. All IP-rated designs are tested according to IEC 60529 procedures.
Industrial environments require consistent illumination over long operating lifetimes. Side-LED with light guide film is the preferred technology for most industrial applications, delivering uniform glow without visible hot spots. LEDs are binned for consistent brightness and color temperature, and rated for the full operating temperature range. For status indication applications, direct per-key LED designs support independent color control for individual keys.
Overlay materials are selected based on the operating environment:
PET film: Cost-effective, good abrasion resistance for indoor factory use
Polycarbonate (PC): Superior chemical resistance, UV stability and impact resistance for outdoor and wash-down applications
Special coatings: Anti-bacterial, anti-glare and anti-scratch coatings available on request
All adhesives and auxiliary materials are rated for the full operating temperature range and tested for compatibility with industrial fluids.
Every batch of industrial backlit membrane switches undergoes structured testing aligned with IEC 60068 environmental testing standards:
100% circuit continuity and backlight uniformity inspection
Temperature cycling testing
Vibration resistance testing
IP sealing verification
Actuation life cycle sampling
Material resistance testing
As an experienced manufacturer of industrial membrane switches with over 10 years of service to global industrial clients, we design and build custom backlit solutions optimized for harsh operating environments. Our 4,500㎡ factory is equipped with automated printing, lamination and testing equipment, with an annual output of over 5 million sets.
We support full customization including custom shapes, cutouts, key layouts, backlight schemes and protection grades. Our engineering team provides free DFM (Design for Manufacturing) review to optimize your design for industrial performance, reduce tooling costs and improve production yield. All products comply with RoHS, CE and ISO 9001 standards, with complete certification documentation provided.
We offer flexible MOQ starting from 50 pieces for prototype orders, with tiered pricing for bulk production. Standard lead time is 7–10 working days for prototypes and 15–25 working days for mass production, with expedited options available for urgent equipment builds.
Looking for industrial-grade backlit membrane switches for your equipment? Send us your design files, operating environment details and performance requirements for a free feasibility assessment and quotation.
Q1: What IP rating do I need for indoor factory control panels? A: IP65 is the standard for most indoor industrial applications, providing dust-tight protection and resistance to water jets from coolant spray and cleaning.
Q2: Can industrial backlit membrane switches operate in freezing temperatures? A: Yes. Heavy-duty industrial-grade panels are designed for operation from -40°C to +85°C, with components rated for extreme temperature environments.
Q3: What is the typical lifespan of industrial backlit membrane switches? A: Industrial-grade panels are rated for 5–8 million actuations, with LED backlight lifespans of 80,000–100,000 hours of continuous operation.
Q4: Can we customize the shape and layout of industrial backlit switches? A: Yes. We support fully custom shapes, contours, display windows, key layouts and selective key illumination to match your exact equipment design.
Q5: Can industrial backlit membrane switches be cleaned with chemicals and disinfectants? A: Yes. Panels with PC overlays resist alcohol, disinfectants and common industrial chemicals. IP67/IP68 sealed panels can withstand high-pressure wash-down.
Q6: What is the minimum order quantity for industrial custom backlit switches? A: We support low MOQ starting from 50 pieces for prototype testing, with tiered wholesale pricing for larger bulk production orders.
